> >Eaton Ellipse Pro 650 IEC Tower UPS

Eaton Ellipse Pro 650 IEC Tower UPS

New Eaton Ellipse Pro 650 IEC Tower UPS View larger
Previous Next

Eaton Ellipse Pro 650

Used

This refurbished Eaton Ellipse Pro 650 IEC UPS has had a new battery fitted and been thoroughly tested by one of our UPS technicians.

It is ready to use on delivery and carries our 12-month RTB warranty.

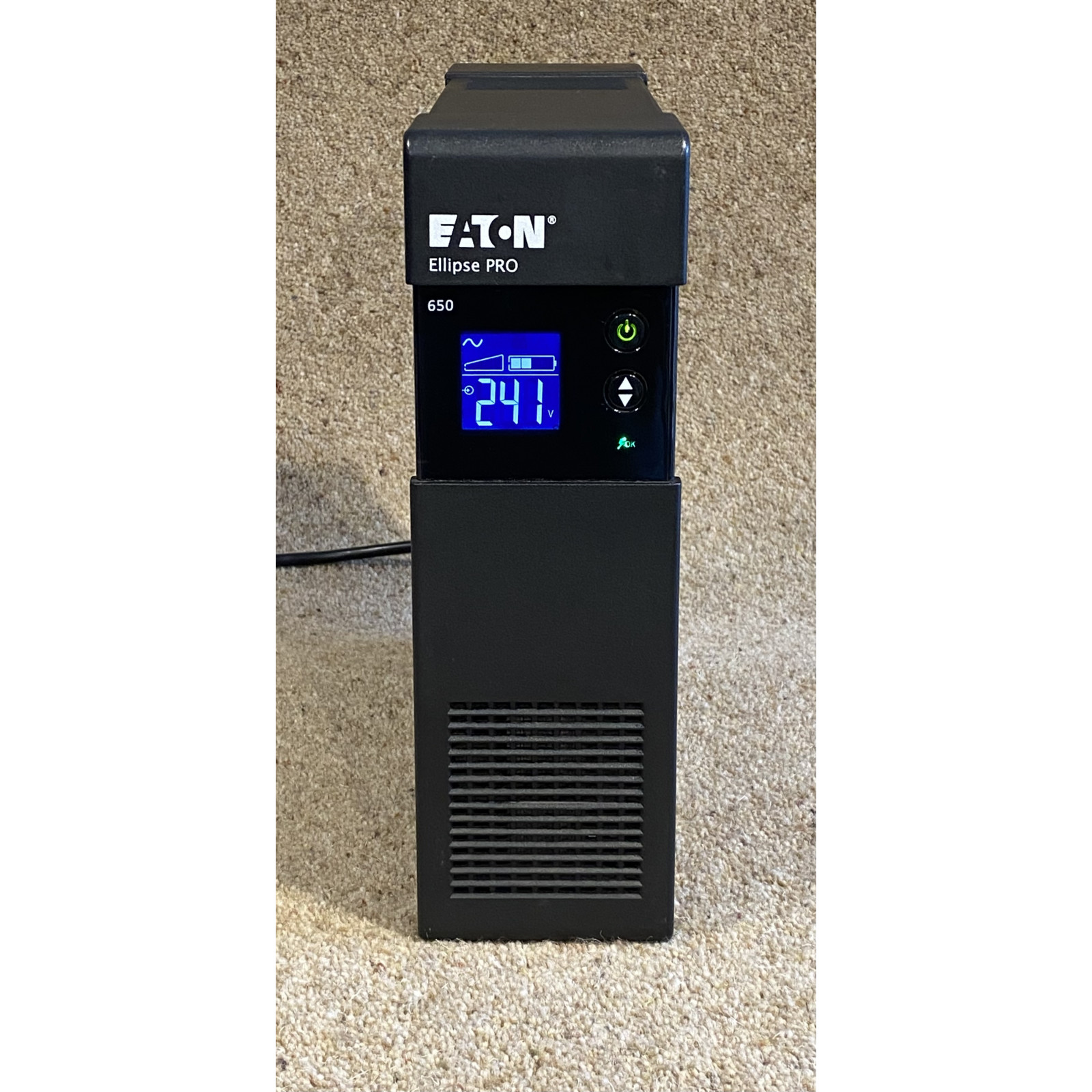

This line-interactive UPS features a bright and informative LCD display and has a very small footprint for your desktop.

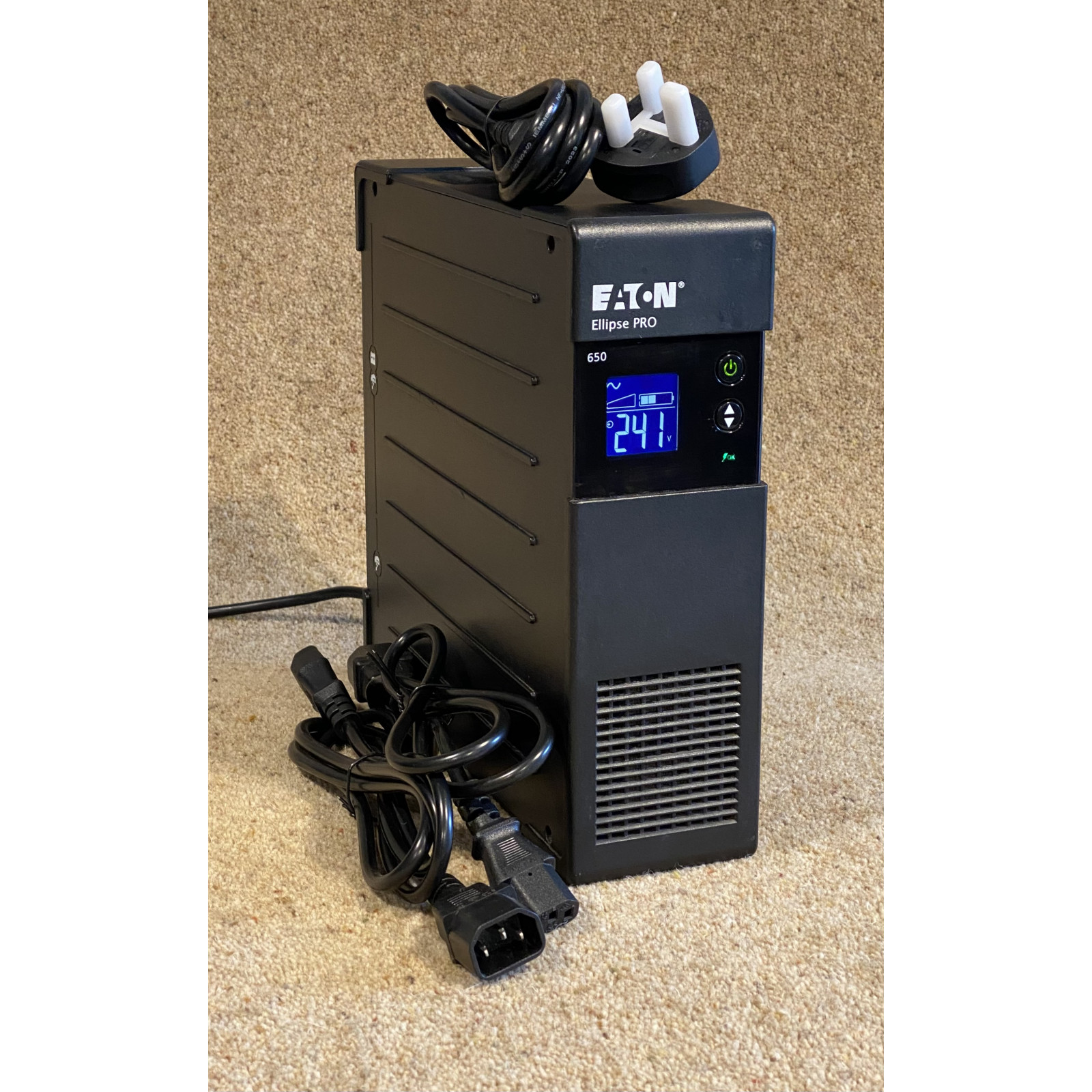

Also included are 1x UK mains input lead and 2x C13-14 output leads.

More details

£ 105.00 tax incl.

Specification


GENERAL SPECIFICATIONS
Product Name: Eaton Ellipse PRO UPS
Catalog Number: ELP650IEC
UPC: 743172437334
Product Length/Depth: 82 mm
Product Height: 260 mm
Product Width: 285 mm
Product Weight: 6.6 kg

ELECTRICAL INPUT
Input connection: C14
Input nominal voltage: 230V default (220/230/240V)
Nominal frequency: 50/60 Hz
Input voltage range: 165-285 V (adjustable to 150-285 V)
Input frequency range: 46-70 Hz

COMMUNICATIONS
Includes network card: No
Communication: USB port (HID compliant)
Ethernet interface: No

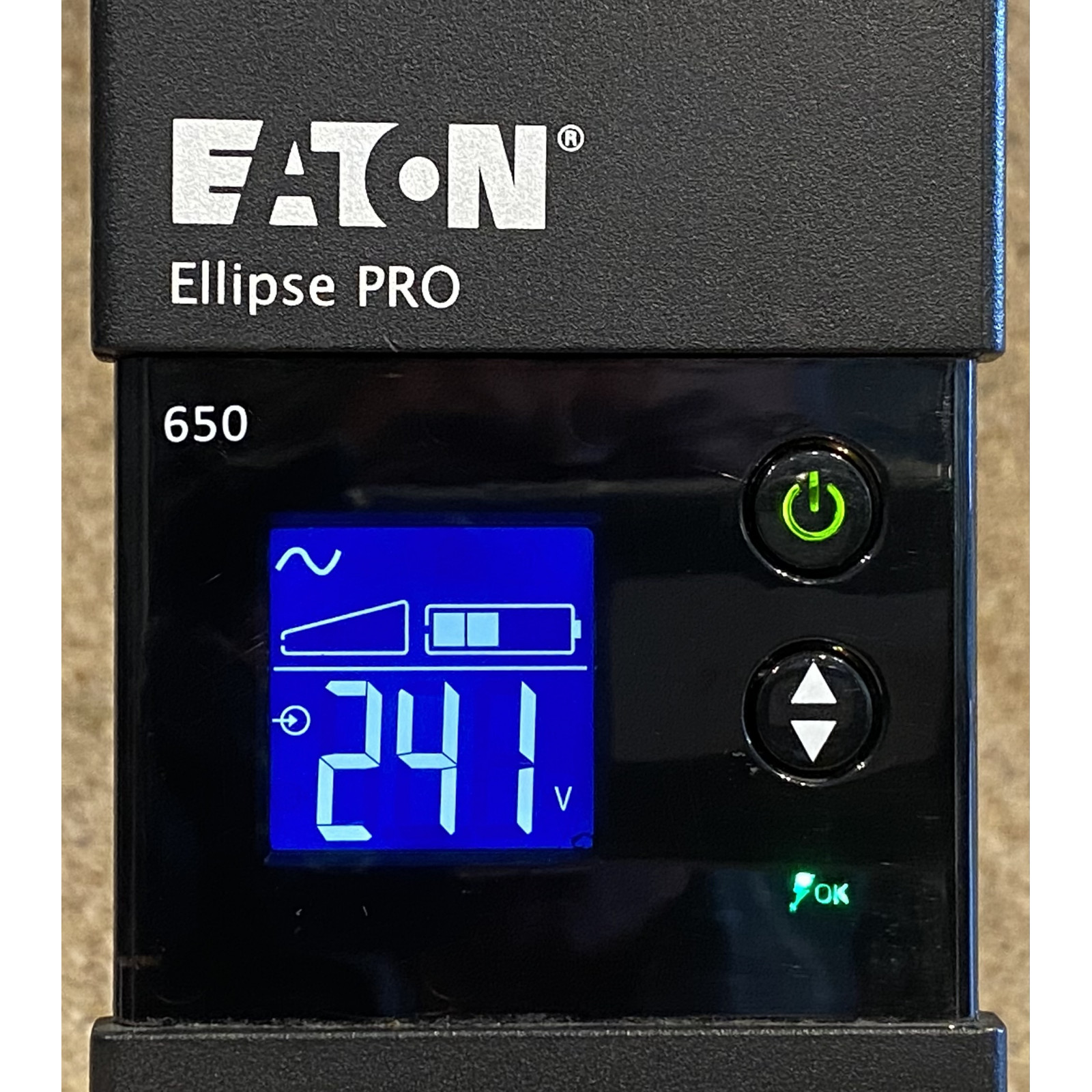

User interface: LCD (UPS status and measurements, configuration of UPS settings)
Potential free switch contact: No
Expansion slots: No
Software compatibility: Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
Type of interface: USB

BATTERY
Battery type: Sealed, lead-acid
Battery replacement: User replaceable
Battery quantity: 1
Battery management: Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
Battery rating: 12 V / 7 Ah
Extended battery capability: No

ELECTRICAL OUTPUT

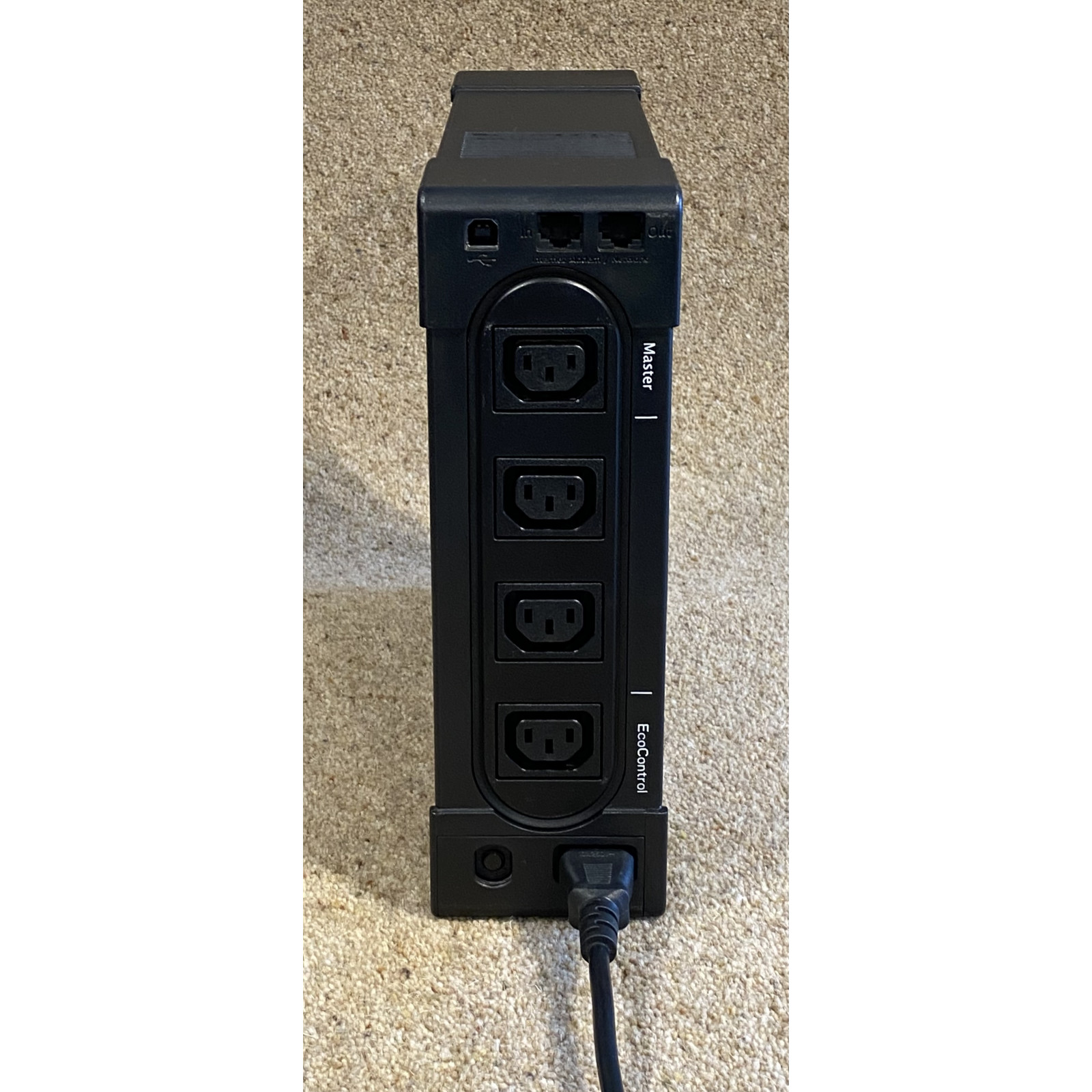

Receptacle: (3) C13, (1) C13 surge only
Voltage: 230V
Wattage: 400W
Output power factor: 0.6
Output voltage range: 176-284 V
Output nominal voltage: 230V default (220/230/240V)
Feed type: 1
Topology: Line-interactive
VA rating: 650 VA

ENVIRONMENTAL
Altitude: 2000 m
Noise level: <25 dB at 1 meter
Temperature range: 0° to 35°C (32° to 95°F)
Relative humidity: 0-85% non-condensing

  • Topology Line Interactive

No customer reviews for the moment.

Write a review

Eaton Ellipse Pro 650 IEC Tower UPS

Eaton Ellipse Pro 650 IEC Tower UPS

This refurbished Eaton Ellipse Pro 650 IEC UPS has had a new battery fitted and been thoroughly tested by one of our UPS technicians.

It is ready to use on delivery and carries our 12-month RTB warranty.

This line-interactive UPS features a bright and informative LCD display and has a very small footprint for your desktop.

Also included are 1x UK mains input lead and 2x C13-14 output leads.
