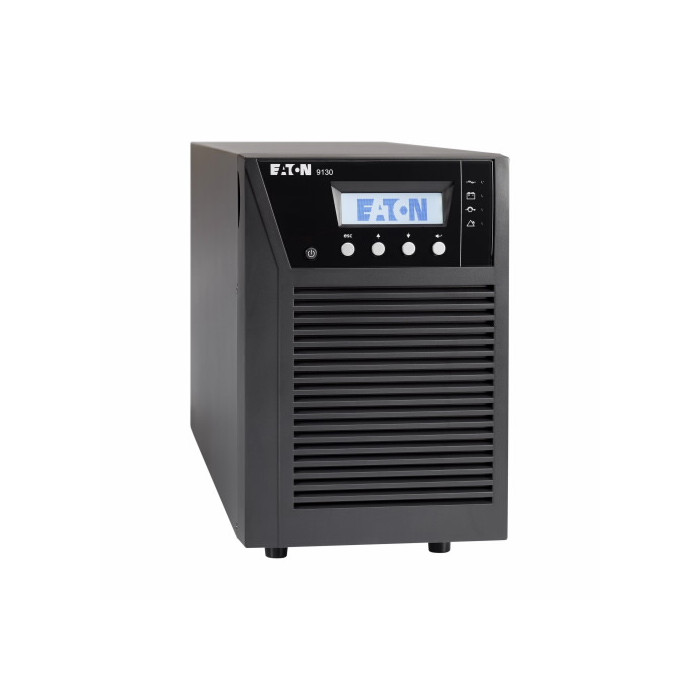

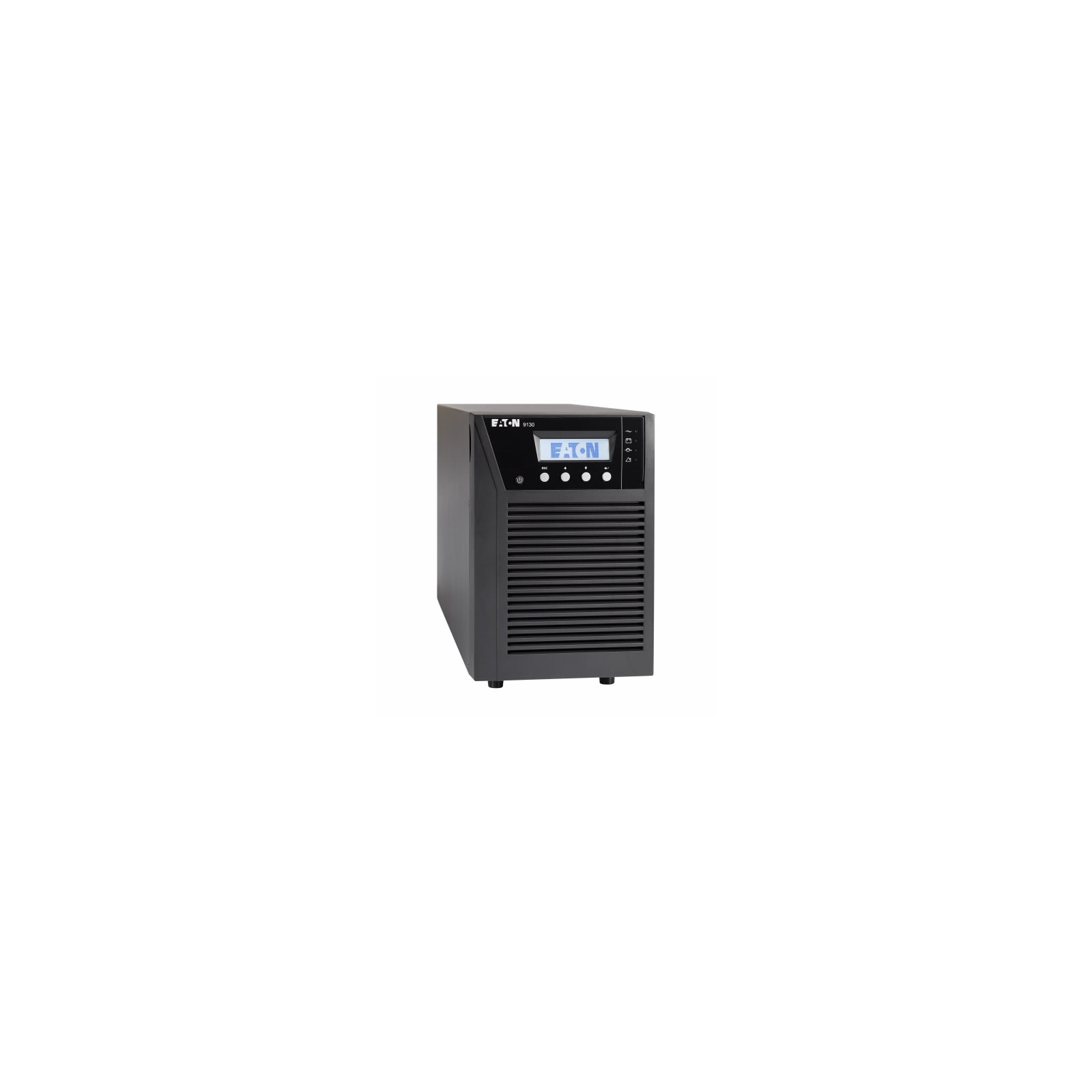

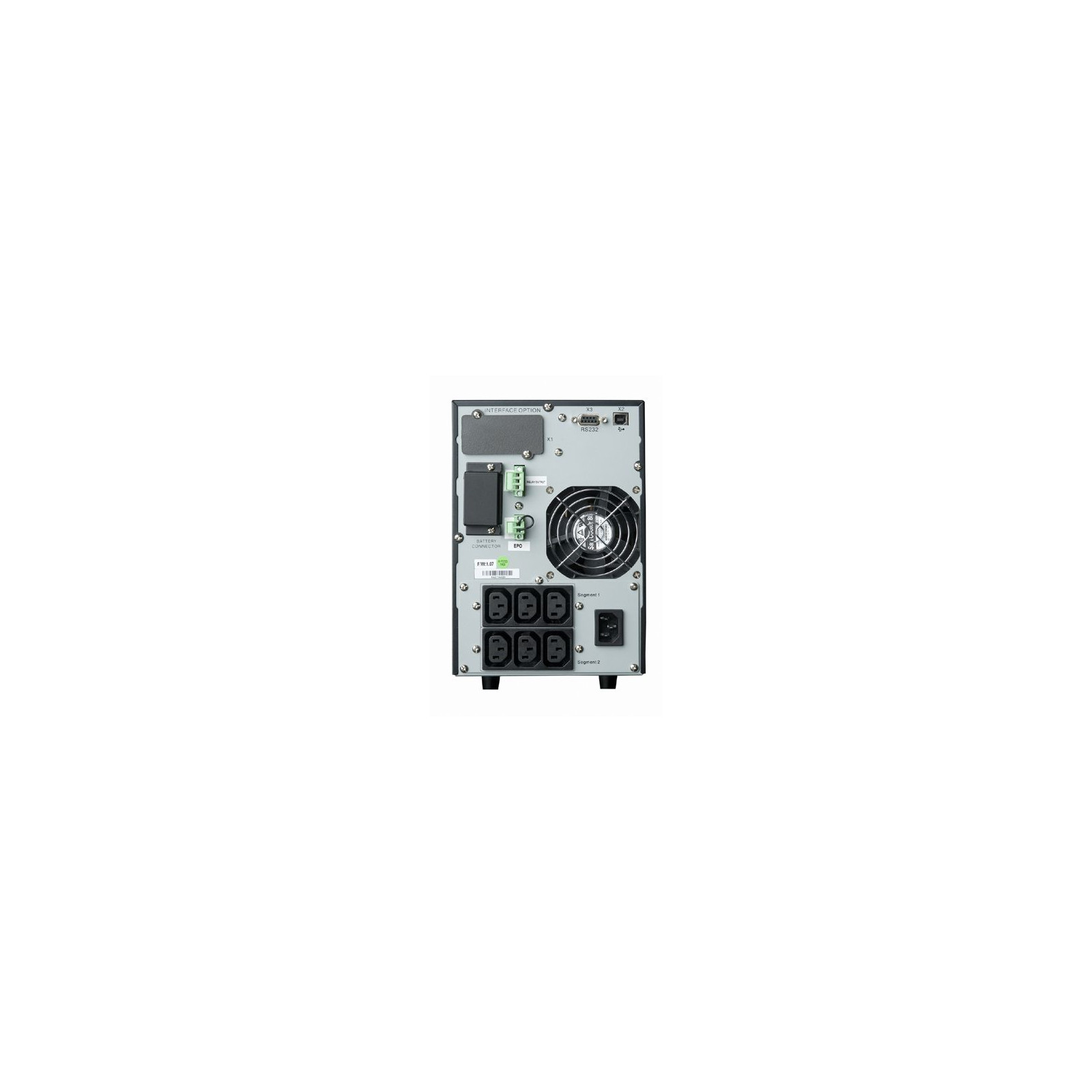

> >Eaton 9130 -1500 T XL Tower

Eaton 9130 -1500 T XL Tower

eaton-9130-1500-t-xl-tower View larger
Previous Next

Eaton-9130-1500-Tower

Used

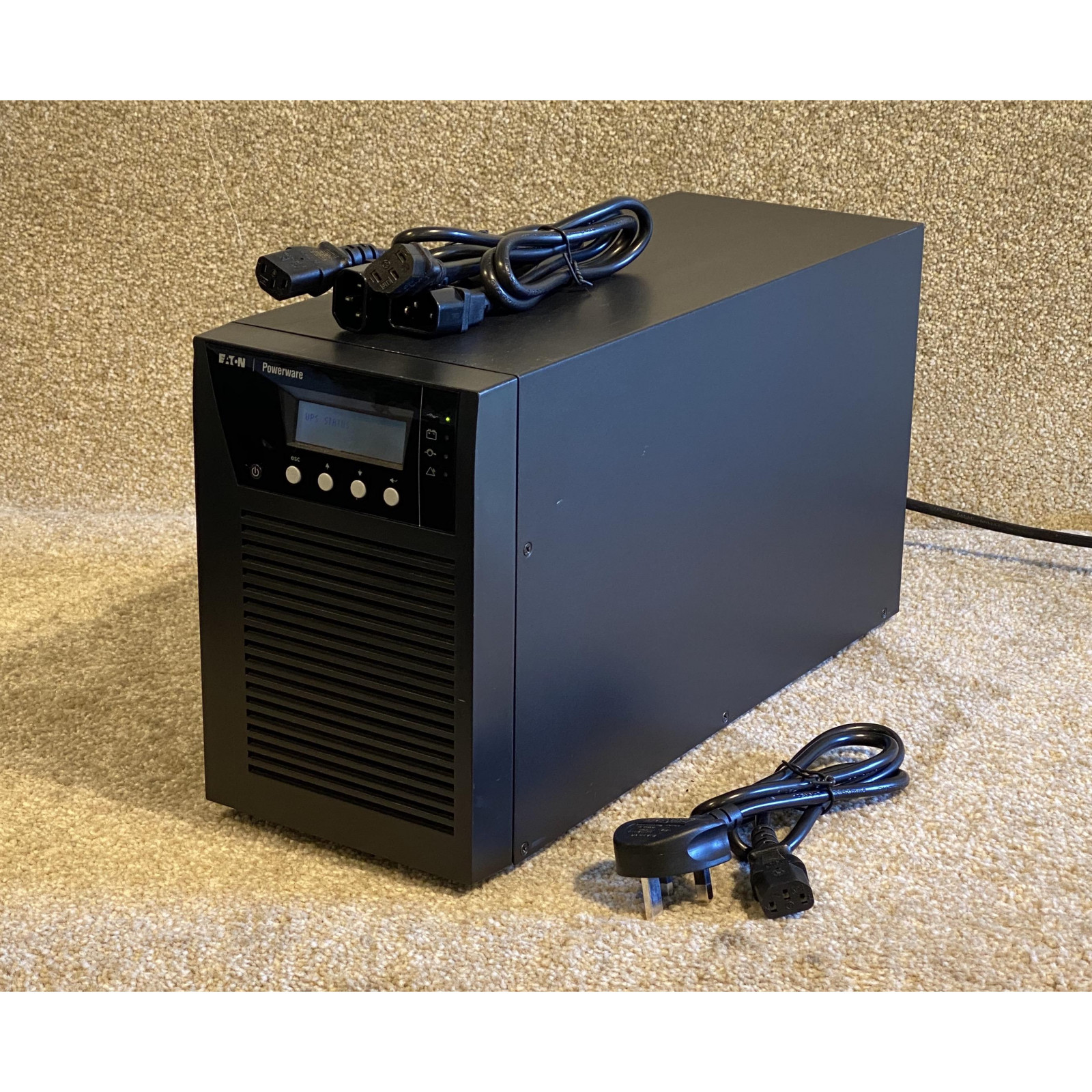

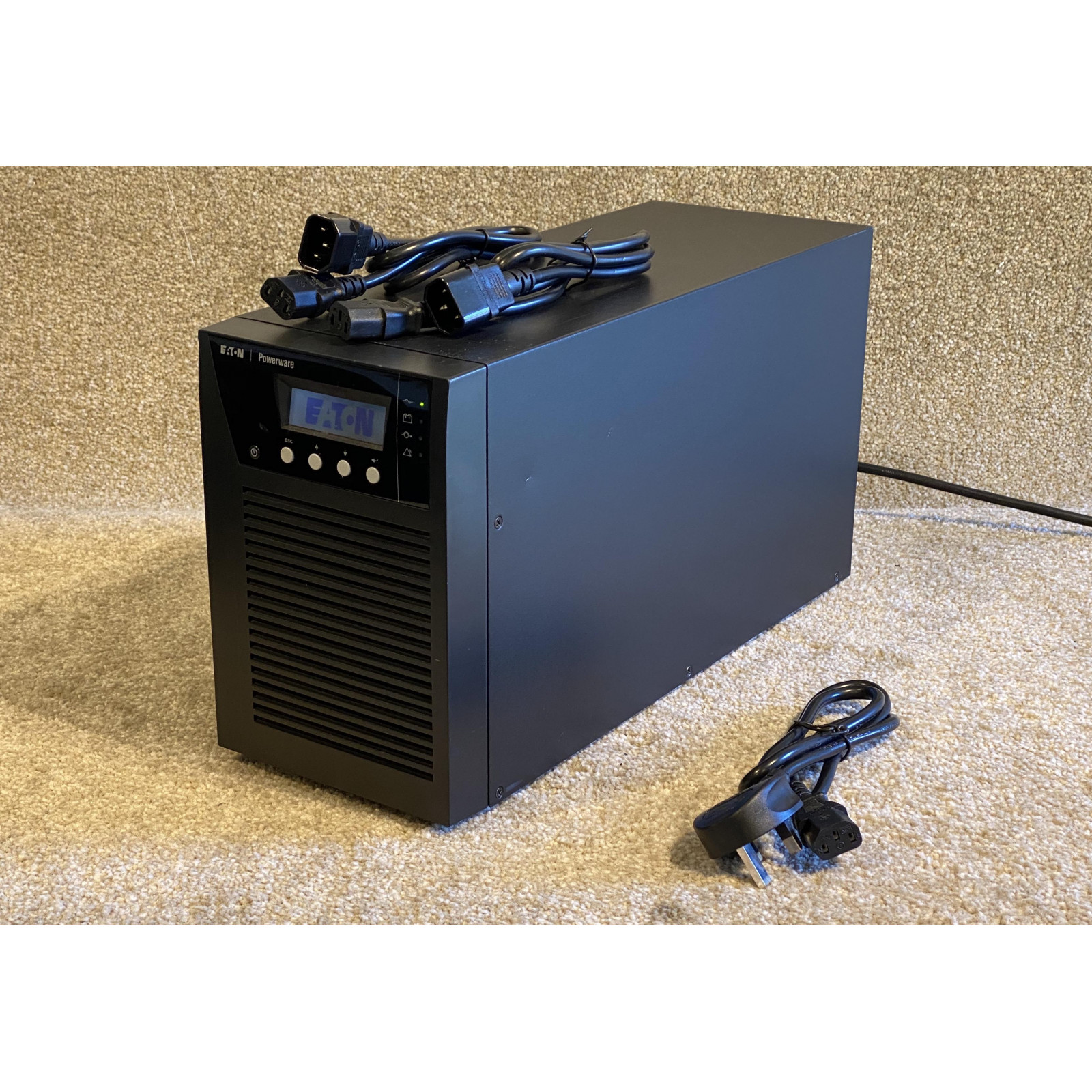

1500VA max power. Used UPS with new cells installed. Includes input and 2x output cables.

Online / double conversion type.

LCD display. We have spotted this type in Manchester airport.

More details

Warning: Last items in stock!

£ 205.61 tax incl.

https://www.eaton.com/us/en-us/skuPage.PW9130L1500T-XL.html

Topology Online, double-conversion

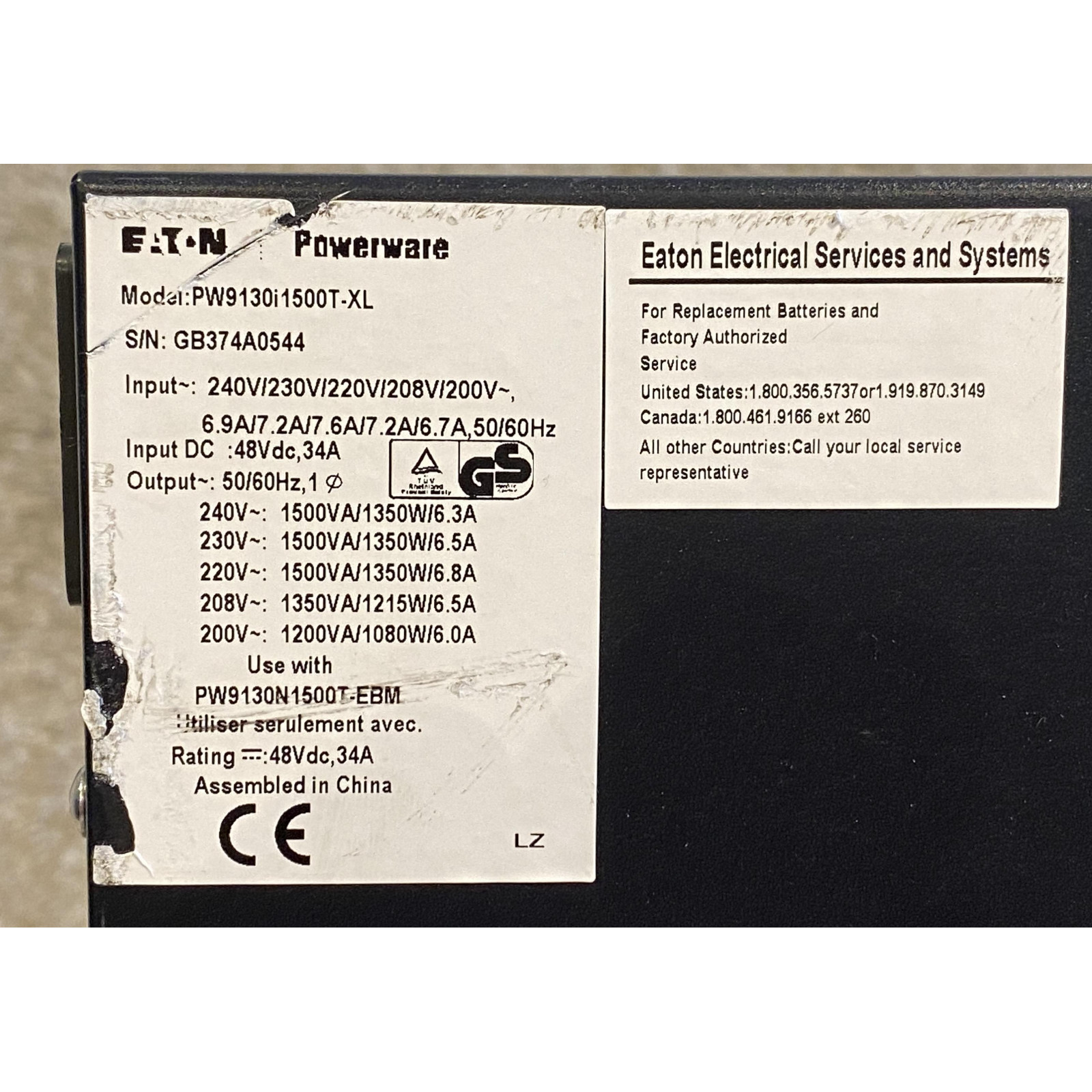

Rating (VA/Watts) 1500/1350
Diagnostics Full system self-test
UPS Bypass Automatic bypass
Input Voltage Range 160-276 Vac

Nominal Voltage 230V default (200/208/220/230/240V)
Frequency 50/60 Hz
Frequency Range 45–65 Hz

Nominal Voltage 230V default (200/208/220/230/240V)

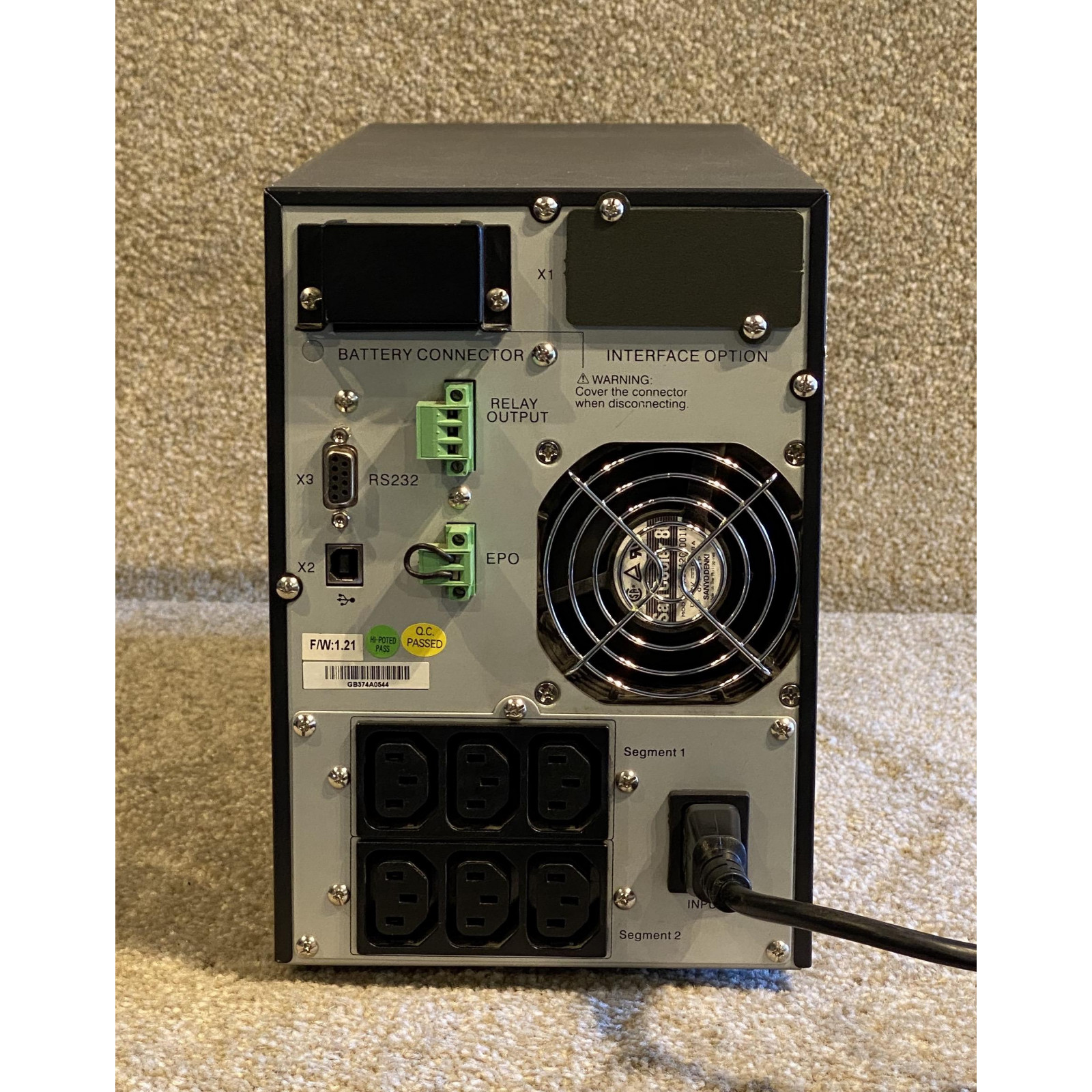

Output Receptacles
(6x) IEC-320-C13

On Utility Voltage Regulation ±3% of nominal

On Battery Voltage Regulation ±3% of nominal
Voltage Wave Shape (On Battery) Sine wave
Power Factor 0.9
Frequency Regulation ±3% Hz online
Load Crest Factor 3 to 1
Load Segments Two configurable, individually controlled receptacles

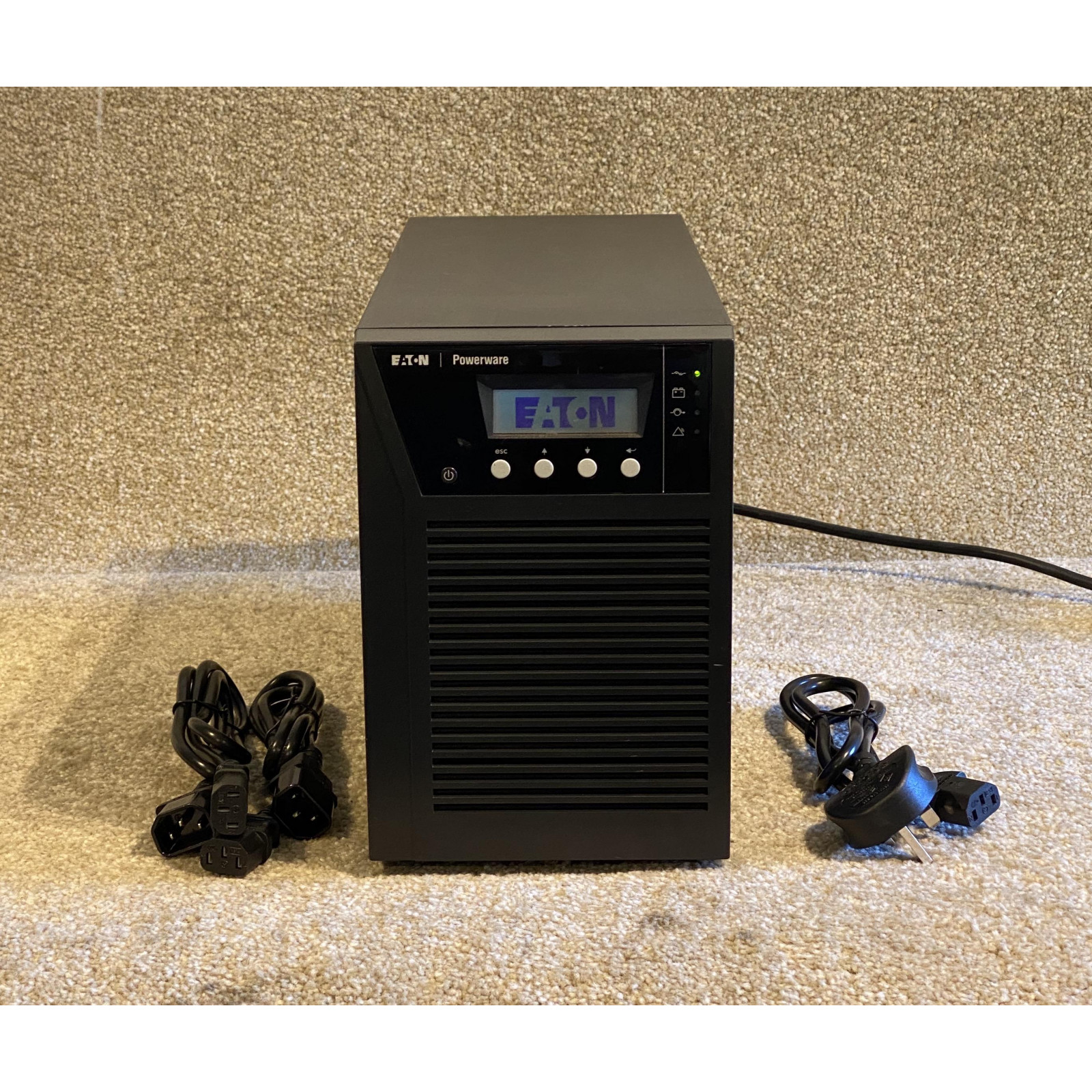

User Interface Graphical LCD with blue backlight and text in English, French, German, Russian and Spanish
LEDs Four status-indicating LEDs
Communication Ports (1) USB, (1) RS-232 serial
Communication Slot Optional communication slots (BD Slot)
Audible Noise <50 dB

Height 231mm
Width 160mm
Depth 434mm

Weight 19KG

  • Topology On-line / Double conversion

No customer reviews for the moment.

Write a review

Eaton 9130 -1500 T XL Tower

Eaton 9130 -1500 T XL Tower

1500VA max power. Used UPS with new cells installed. Includes input and 2x output cables.

Online / double conversion type.

LCD display. We have spotted this type in Manchester airport.
