Compaq T2400h - Power unit only

Compaq T2400h View larger

T2400h-Power-unit-only

Used

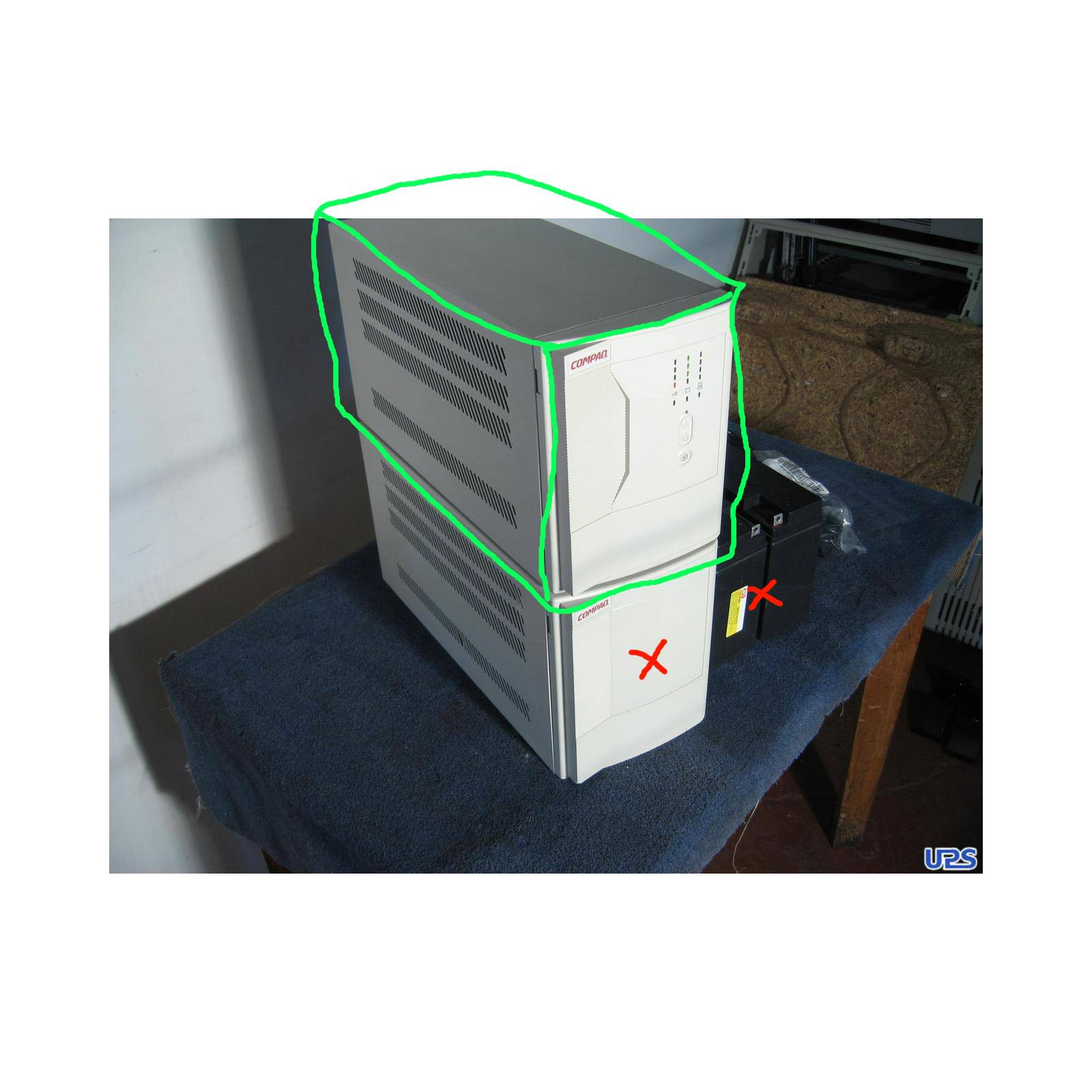

T2400h Power unit only.

This is for the electronics unit, but not the cell pack unit. You will either need to use an existing cell pack or other 48VDC source with the UPS.

The T2400 has the electronics in one cabinet and the cells in another.

Fully working - 30 DAY RTB on this unit as normal when we dont supply with new cells.

More details

Warning: Last items in stock!

£ 149.53 tax incl.

Model ID: 242688-006
Compaq UPS T2400h - UPS ( external ) - AC 220 V - 2400 VA - UPS battery Lead Acid -

Don't let unplanned power events threaten your investment in Compaq systems or other expensive equipment such as workstations, servers or critical data links. Compaq's T2400H Tower UPS provides voltage correction, surge protection and instant-on battery power for systems up to 2300VA. Protect data and equipment against disaster and keep the power coming for applications that cannot be allowed to fail.

General
Device Type UPS
Form Factor External
Width 17.8 cm
Depth 44.4 cm
Height 22.4 cm
Weight 15.4 kg
Enclosure Colour White

Power Device
Load Rating Small LAN / file server
Input Voltage AC 220 V
Input Voltage Margin ± 20%
Frequency Required 50/60 Hz
Output Voltage AC 220 V ± 5%
Power Provided 2400 VA
Surge Suppression as Standard

Battery
Type UPS battery
Technology Lead Acid
Voltage Provided 48 V


[information received from a past customer on how to connect to his server]
Thanks for your link with a bit of effort I have the UPS communicating nicely with my server …..
I made up a cable

UPS DB-9M DB-9F RS-232

Receive 1 <---------------------------< 3 TxD
Transmit 2 <---------------------------< 2 RxD
Common 4 <---------------------------< 5 SG
PnP_En 6 <---------------------------< 7


I downloaded http://powerquality.eaton.com/Support/Software-Drivers/Downloads/lansafe5.asp


UPSdriver_222.exe for x64 Windows
Lansafe 513 for Windows Winx64


I set the serial communications on Com1 to 1200 8 1 none
Loaded the driver onto my Server 2008 R2 x64 system
Then loaded the Lansafe software


And my UPS is now working with the server fully !
  • Topology Line Interactive
