> >Riello STW 5000 UPS

Riello STW 5000 UPS

New Riello STW 5000 UPS View larger
Previous Next

STW5000

Used

single phase in and out 5KW online UPS, new cells installed

Roller wheels.

IEC309-32A plug wired on

PDF manual (see download tab)

More details

Warning: Last items in stock!

£ 720.00 tax incl.

This Riello Sentinel STW5000 A3 UPS has had 15 brand new 7A/H batteries fitted and been thoroughly tested by our technicians.

It is ready to use on delivery and carries our 12-month RTB warranty.

The UPS is an online design, which makes it suited to powering and protecting delicate

electronic equipment. It also has a full 5000 watt maximum active power output.

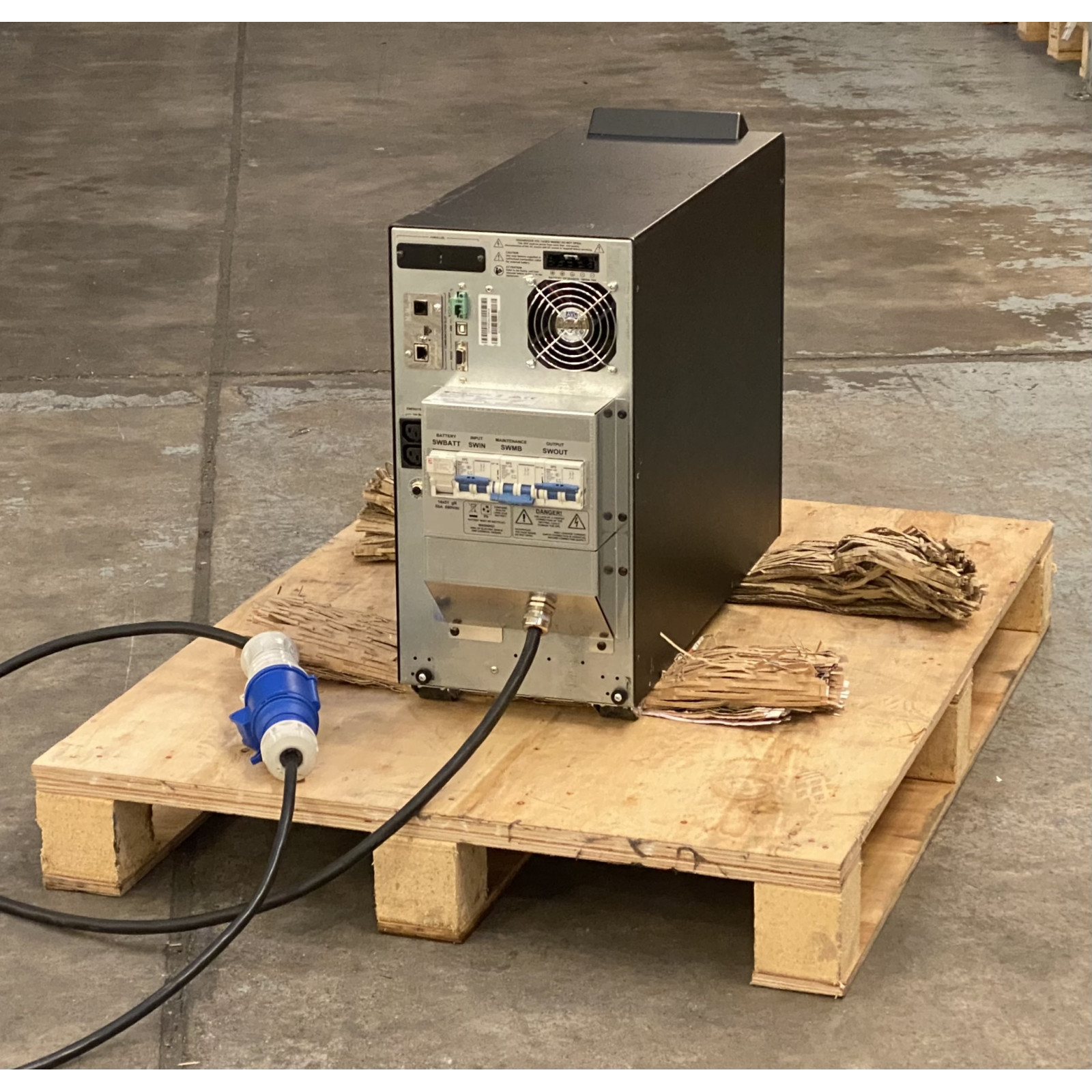

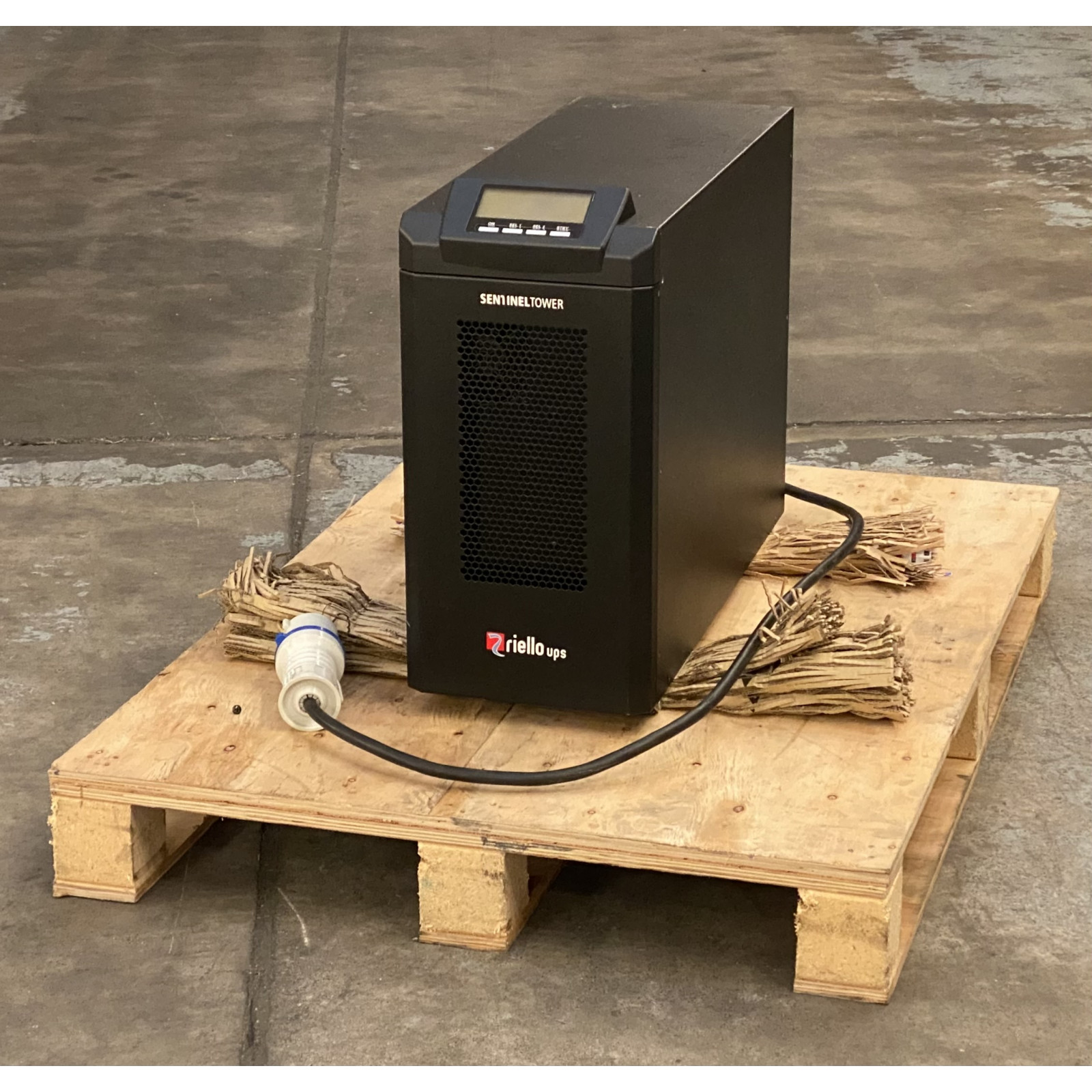

As can be seen in the photos, it is supplied with fitted with an IEC 32 amp plug and cable wired to the input, so it is ready to plug in and use straight away.

INPUT
Rated power: 5000 VA
Voltage: 220 / 230 / 240 V
Voltage tolerance: 230 V ±20%
Frequency: 50 / 60 Hz ±5
Power factor: >0.98
Current distortion: ≤5% for single-phase input

BYPASS
Voltage tolerance: 180 / 264 V (selectable in ECO Mode or SMART ACTIVE Mode)
Frequency tolerance: Selected frequency ±5% (selectable by user)

OUTPUT and INVERTER OUTPUT
Rated power: 5000 VA
Active power: 5000 W
Rated voltage: 220 / 230 / 240 V selectable
Crest factor: (Ipeak/Irms) 3 : 1
Waveform: Sinusoidal
Frequency: 50 / 60 Hz selectable
Voltage distortion with non-linear load: <3%
Voltage distortion with linear load: <1%

BATTERIES
Type: VRLA AGM maintenance-free lead based
Typical recharge time: 4-6 h

ENVIRONMENTAL
Colour: Black RAL 9005
Communication: USB / RS232 / slot for communications interface / REPO + Input contact
Surge capability: 1 VDR x 300 J
Protections: Overcurrent - short circuit - overvoltage - undervoltage - temperature - excessive low battery
Noise (at 1 m): <48 [bBA] (ECO Mode)
Operating temperature: 0 °C - +40 °C
Relative humidity: 5-95% non-condensing
Output sockets: Terminal block + 2 IEC 320 C13

DATA
Weight: 62 kg
Dimensions (h w d): 250x698x500 mm

  • Topology On-line / Double conversion
