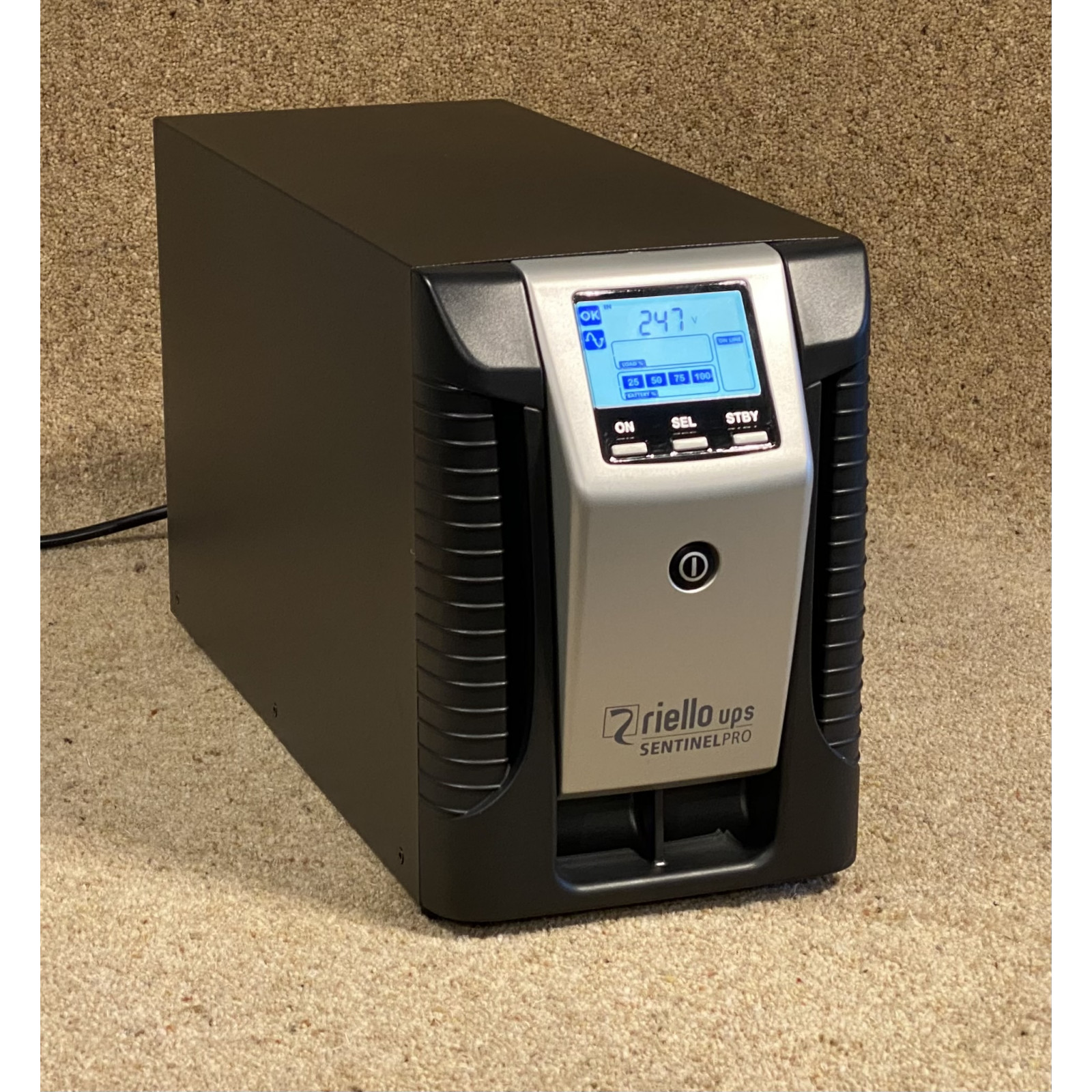

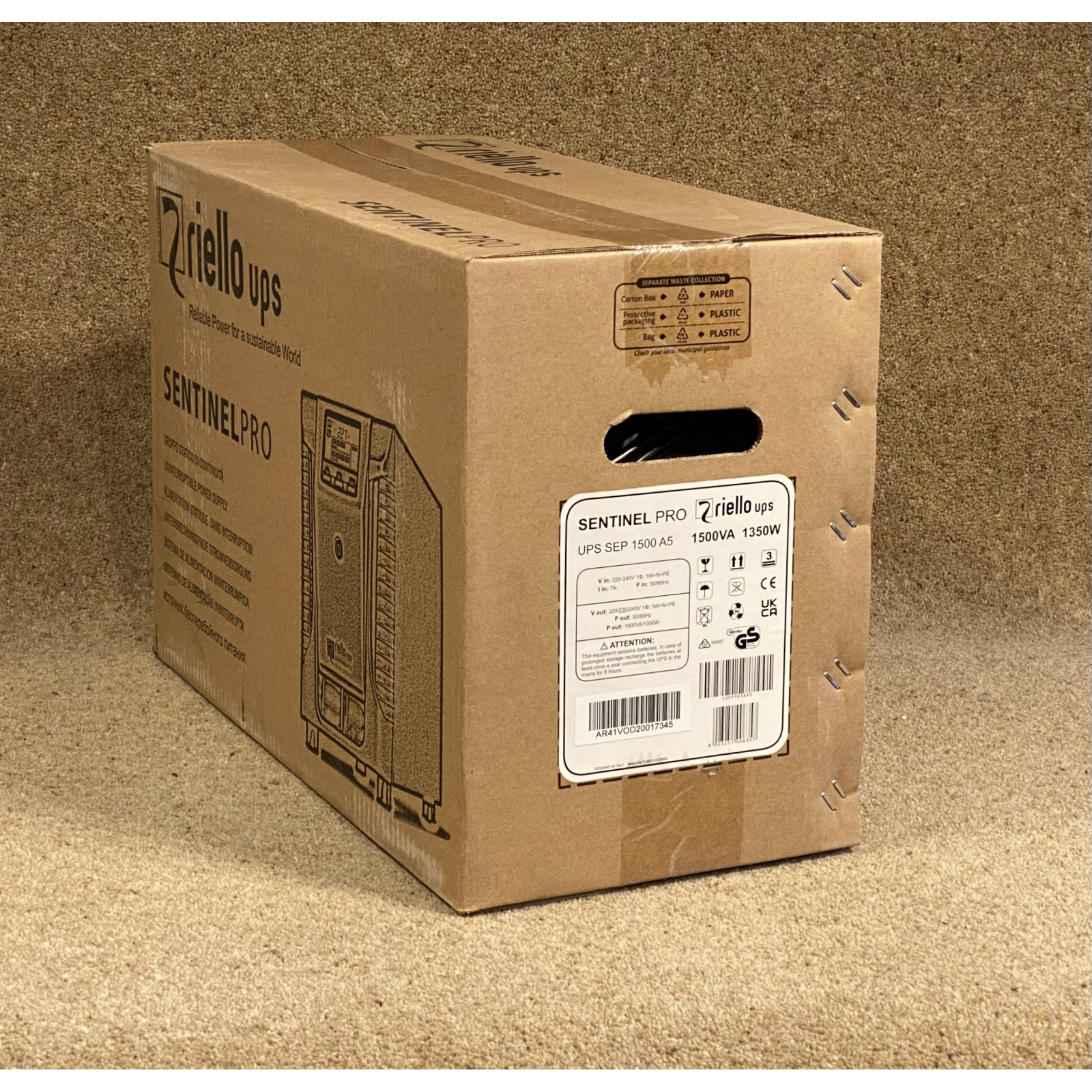

Riello Sentinel Pro 1500VA New in Box

The UPS is an online design, which makes it suited to powering and protecting delicate electronic equipment.

Included with the UPS are the following accessories:

• Quick-start guide
• USB cable
• Mains power input cable
• 2 x C13-14 output cables

Specification

Input 220-240VAC
50/60HZ
Single Phase
6.5A Nominal at max load

Max power 1500VA / 1350W

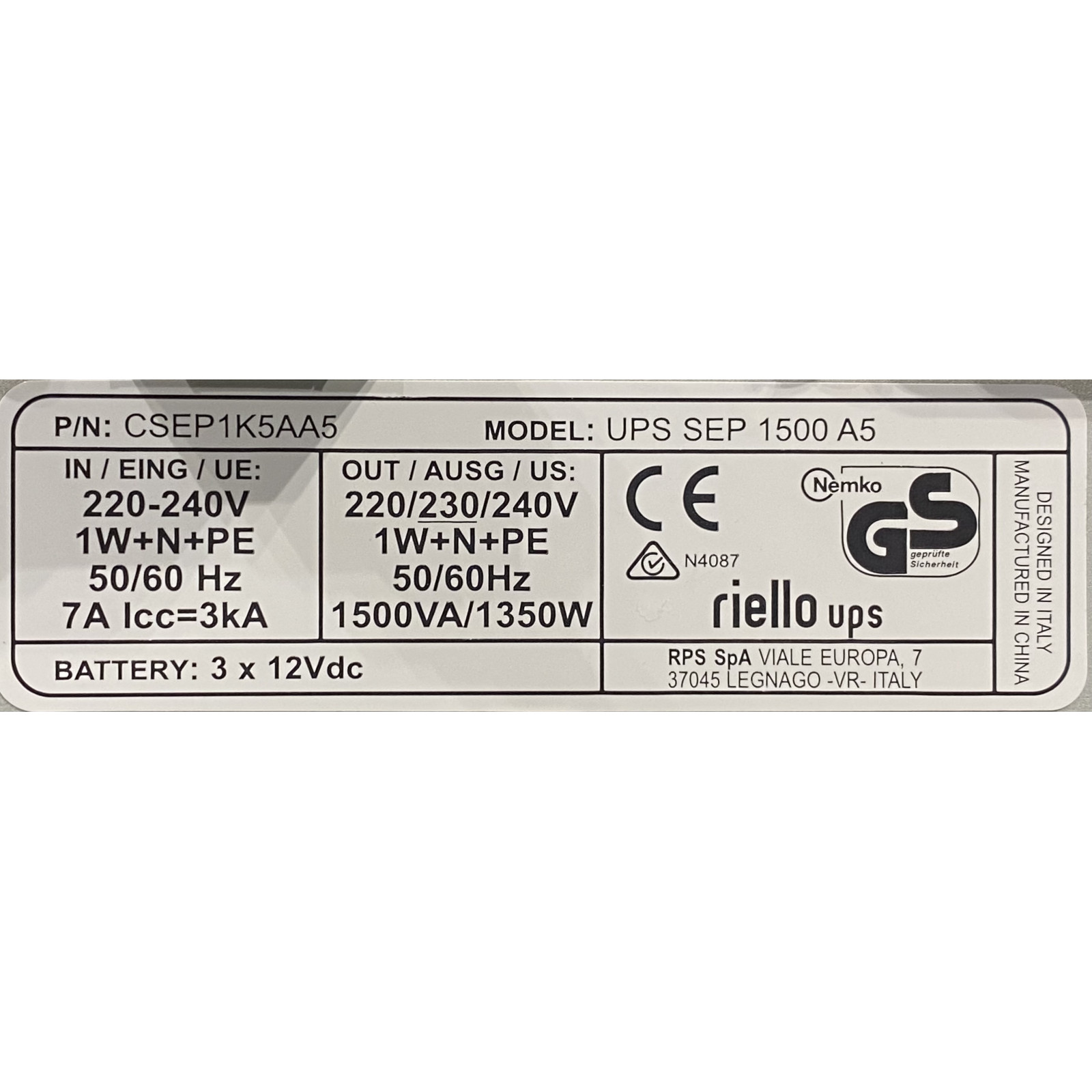

Models SEP 1500 A5
INPUT
Rated power 1500 VA
Voltage 220-230-240 Vac
Voltage tolerance 140 Vac < Vin < 276 Vac @50% LOAD / 184 Vac < Vin < 276 Vac @ 100% LOAD
Frequency 50/60 Hz
Frequency tolerance 50 Hz ± 5% / 60 Hz ± 5%
Power factor > 0.99
Current distorsion ≤7%
BY PASS
Voltage tolerance 180 - 264 Vac
Frequency tolerance Frequency selected (from ±0.Hz to ±5Hz configurable)
Number phases 1
OUTPUT and INVERTER OUTPUT
Rated power 1500 VA
Active power 1350 W
Number phases 1
Crest factor (Ipeak/Irms) 3 : 1
Waveform Sinewave
Frequency Can be selected: 50 Hz or 60 Hz or self-learning
Voltage distortion with distorcing load < 4%
Voltage distortion with linear load < 2%
OVERLOAD TIMES

50/60HZ
Single Phase
6.5A Nominal at max load

Max power 1500VA / 1200W


Models SEP 1500 A5
INPUT
Rated power 1500 VA
Voltage 220-230-240 Vac
Voltage tolerance 140 Vac < Vin < 276 Vac @50% LOAD / 184 Vac < Vin < 276 Vac @ 100% LOAD
Frequency 50/60 Hz
Frequency tolerance 50 Hz ± 5% / 60 Hz ± 5%
Power factor > 0.99
Current distorsion ≤7%
BY PASS
Voltage tolerance 180 - 264 Vac
Frequency tolerance Frequency selected (from ±0.Hz to ±5Hz configurable)
Number phases 1
OUTPUT and INVERTER OUTPUT
Rated power 1500 VA
Active power 1350 W
Number phases 1
Crest factor (Ipeak/Irms) 3 : 1
Waveform Sinewave
Frequency Can be selected: 50 Hz or 60 Hz or self-learning
Voltage distortion with distorcing load < 4%
Voltage distortion with linear load < 2%
OVERLOAD TIMES
100% < Load < 110% 2 minutes
125% = Load < 150% 5 seconds
Load > 150% 1 second
BATTERIES
Type VRLA AGM lead, maintenance-free
Typical recharge time 2-4 h
ENVIRONMENTAL
Altitude max 6000 m
Color Black

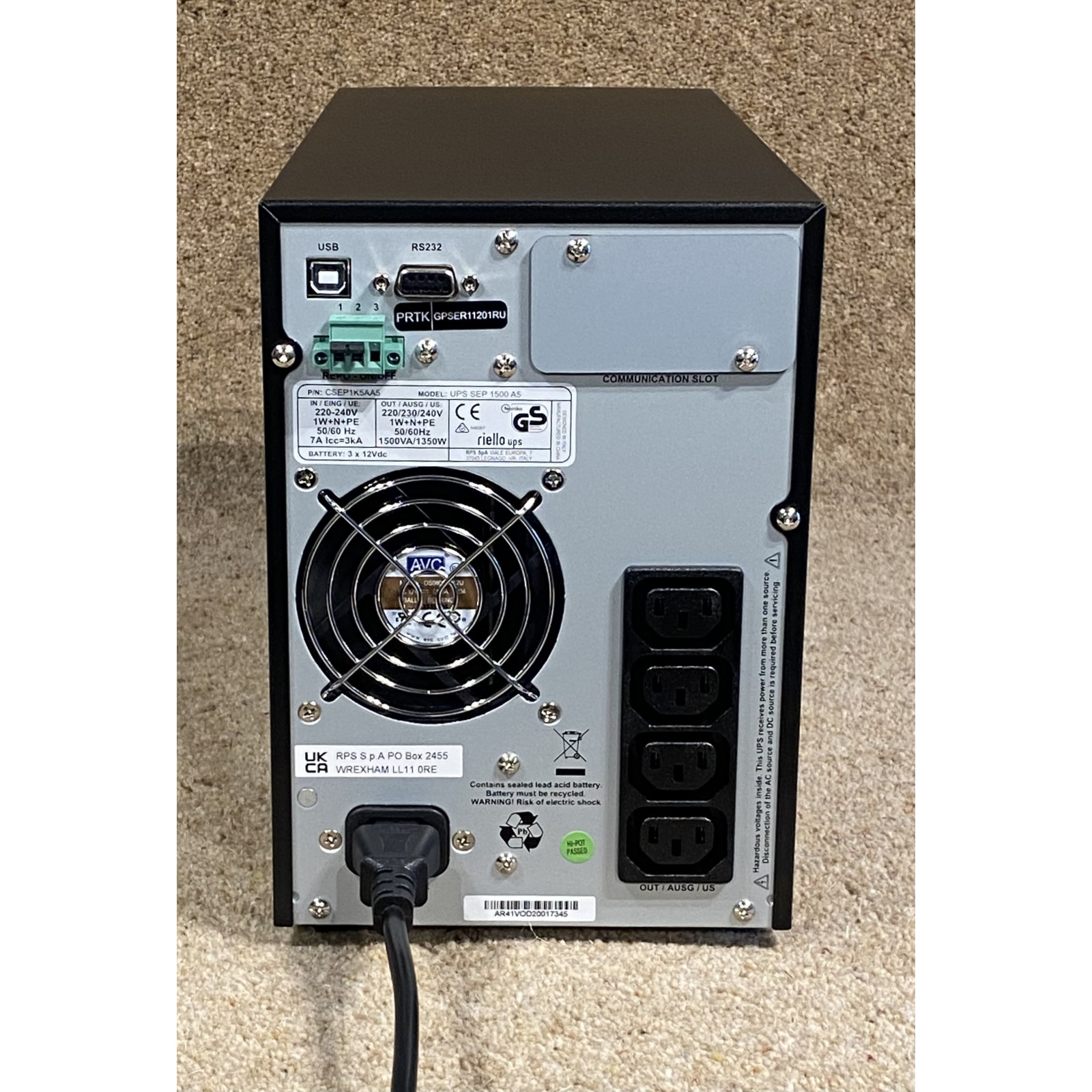

Communication USB / DB9 with RS232 and contacts / Slot for communication interface
Safety compliance EN 62040-1:2008; EN 62040-1/EC:2009; EN 62040-1/A1:2013 and Directive 2014/35/EU
EMC conformance EN 62040-2 and Directive 2014/30/EU
Accessories provided Power cable, IEC-IEC cable, serial cable, USB cable, safety manual, quick start
Protection rating IP20
Surge capability 300 joule
Marks CE, GS/NEMKO
Line-Interactive/Smart Active efficiency 98%
Noise (at 1 m) < 40 dBA @ 1 m
Operating temperature 0°C / +40°C
Relative humidity < 95% not condensed
DATA
Weight 14,8 kg
Dimensions (h w d) 158x422x235 mm
