SURT1000xli B-Grade

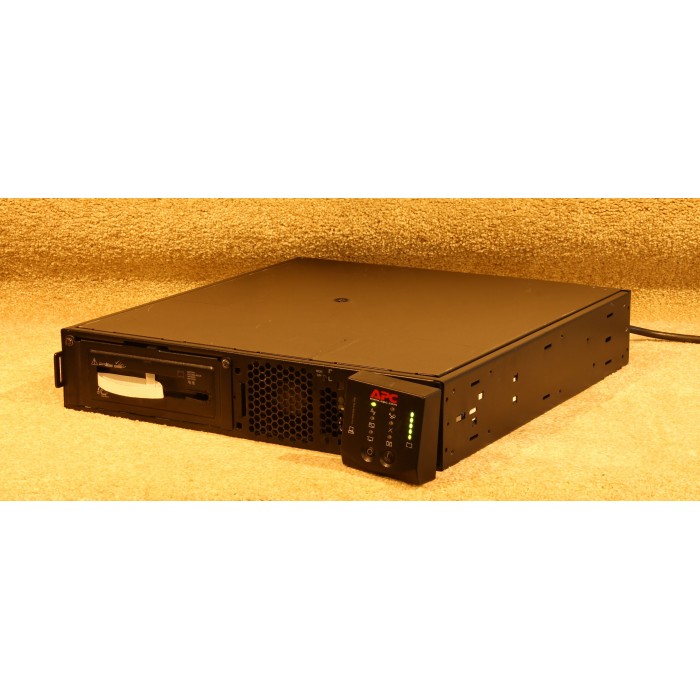

We have some UPS that doe not have fronts or cell packs. We are offering these as much cheaper B-Grade units. The testing process here is the same, and the performance is identical but you can expect things such as:

• No Front plastic
• Control Panel with LED's retaining clips broken - fixed by us with tape to the unit or free hanging
• More scratched + dents on the UPS
• Cells assembled onto a lexan tray by us (see pictures) rather than in original APC caddy.

The unit is still fully working, and we always include the LED control panel, input cable and two output cables, so its ready to work on delivery. This is best suited to people who want the advanced double conversion protection that is normally only available at a high price, and are happy to accept the cosmetic issues in light of the price being so vastly reduced compared to our A-Grade units.

Rails not included.

Output Power Capacity 700W / 1000 VA

Nominal Input Voltage 230V (configurable for 220/230/240VAC nominal)
Input Frequency 50/60 Hz +/- 5 Hz (auto sensing)
Input voltage window for normal operation 160V-280V AC

Nominal Output Voltage 230V
Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion Less than 3%
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Other Output Voltages 220, 240
Crest Factor 3 : 1

Topology Double Conversion Online
Waveform Type Sine wave

Output Connections (6) IEC 320 C13

Bypass Internal Bypass (Automatic and Manual)

Typical battery recharge time 4 Hours

Interface Port(s) RJ-45 Serial, Smart-Slot
Control panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace
Battery : Overload and Bypass Indicators
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm


Surge energy rating 420 Joules
Filtering Full time multi-pole noise

Dimensions (as viewed as a tower, for rack swap width and height)
Maximum Height 432.00 mm
Maximum Width 85.00 mm
Maximum Depth 483.00 mm
Rack Height 2U

Shipping Weight ~30 KG


Audible noise at 1 meter from surface of unit 50.00 dBA
Online Thermal Dissipation 543.00 BTU/hr
