Tripp-Lite SMX1500XLRT2U

If you intend to use the unit as a tower, let us know and we will include feet instead.

These efficient line interactive UPS feature a bright and informative LCD control panel which can be rotated through 90 degrees to suit installation.

Includes rack mount ears. When we do not have mfr originals we make them from aluminium extrusions.

If you intend to use the unit as a tower let us know and we will include feet instead.

The units are used - scratches and signs of prior use are expected.

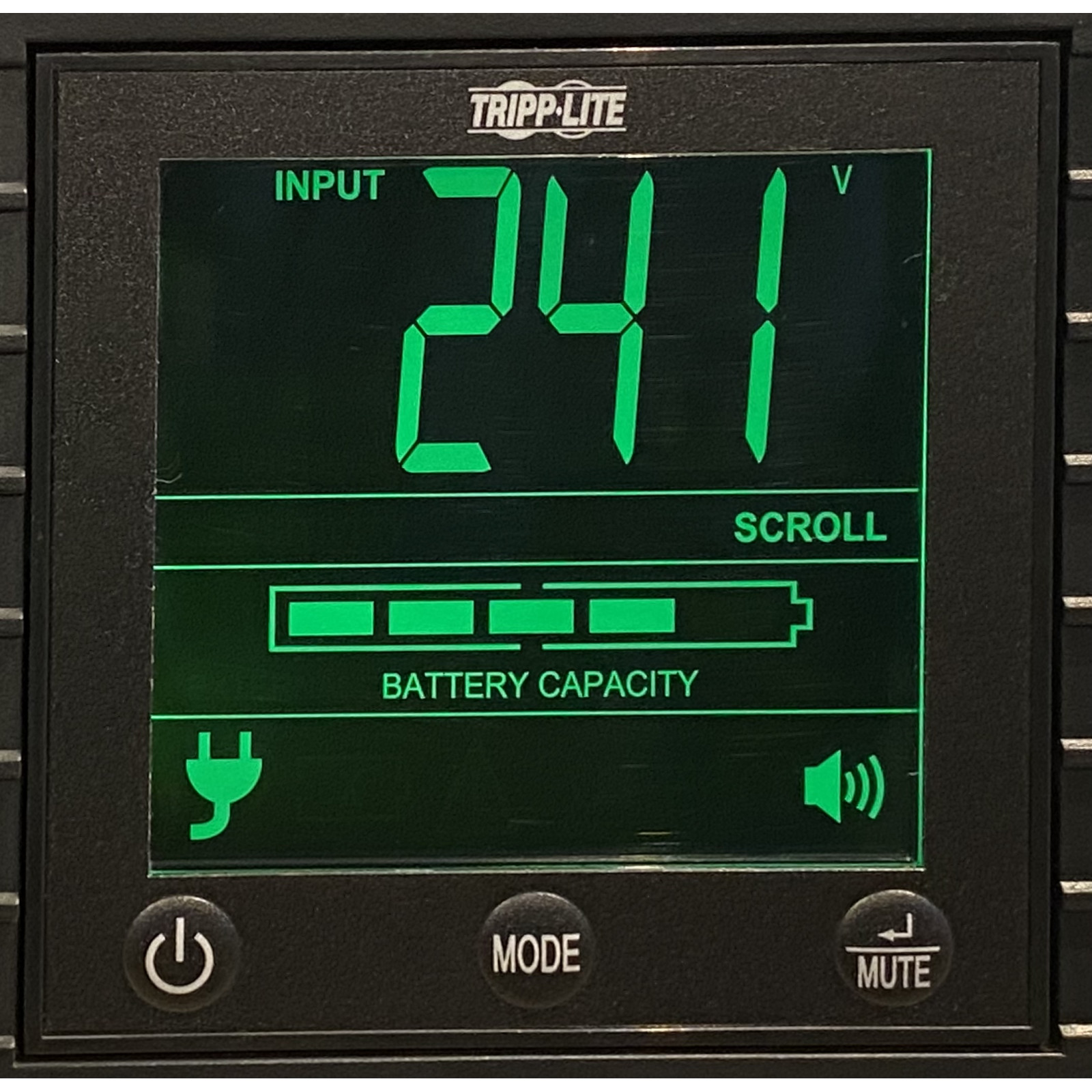

These efficient line interactive UPS feature a bright and informative LCD control panel

INPUT
Input Phase: Single-Phase
Rated input current (Maximum Load): 6.9A
Nominal Input Voltage(s) Supported: 230V AC
UPS Input Connection Type: C14 inlet
UPS Input Connection: IEC320-C14
Input Circuit Breakers: 10A

OUTPUT
Output Capacity (VA): 1500
Output Capacity (kVA): 1.5
Output Capacity (Watts): 1350
Output Capacity (kW): 1.35
Output Capacity Details Output is reduced to 1200W maximum when used with external battery packs
Power Factor: 0.9
Nominal Voltage Details: 230V nominal output in battery mode
Frequency Compatibility: 50 / 60 Hz
Frequency Compatibility Details: Automatic frequency selection
Output Voltage Regulation: (Line Mode) +6% / -15%
Output Voltage Regulation: (Battery Mode) +/- 5%
Included Output Power Cables: 2 C13 to C14 power cables included
Load Management Receptacles: Two switchable two-outlet C13 load banks
Hot-Swap PDU options: PDUBHV10 (2U / 8 C13 outlets)
Output AC Waveform (AC Mode): Sine wave
Output AC Waveform (Battery Mode): Pure Sine wave
Nominal Output Voltage(s) Supported: 220V; 230V; 240V
Output Receptacles: (8) C13
Individually Controllable Load Banks: Yes

BATTERY
Battery Type Valve Regulated Lead Acid (VRLA)
Runtime Full Load (min.) 4.9 min. (1350W)
Runtime Half Load (min.) 13.6 min. (675W)
Expandable Runtime: Yes
DC System Voltage (VDC): 36
Battery Recharge Rate (Included Batteries): Less than 4.5 hours from 10% to 90% (typical, full load discharge)
Battery Access: Front panel battery access door
Battery Replacement Description: Hot-swappable, user-replaceable batteries

VOLTAGE REGULATION
Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 158 to 278
Overvoltage Correction: Input voltages between 244 and 278 are reduced by 12%
Undervoltage Correction: Input voltages between 182 and 206 are boosted by 12%
Severe Undervoltage Correction: Input voltages between 158 and 182 are boosted by 24%

PHYSICAL
Rack Height 2U
Cooling Method Fan
Minimum Required Rack Depth (cm): 43.18
Primary UPS Depth (mm): 343
Primary UPS Height (mm): 89
Primary UPS Width (mm): 442
Shipping Dimensions (hwd / cm): 22.35 x 50.55 x 59.18
Shipping Weight (kg): 25.72
UPS Housing Material: Steel
UPS Power Module Dimensions(hwd, cm): 8.89 x 44.20 x 34.29
UPS Power Module Weight (kg): 19.55
