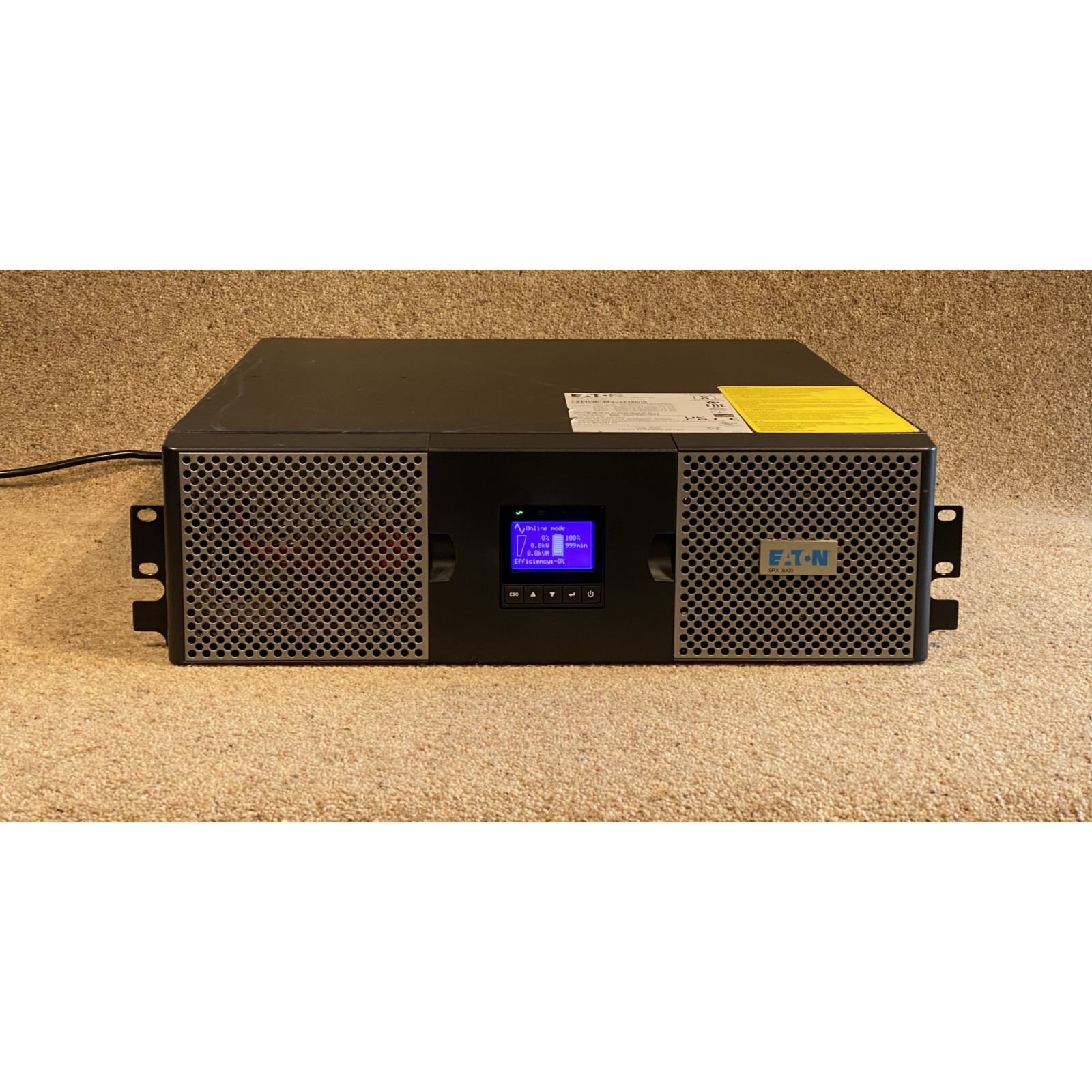

Eaton 9PX3000IRT3U UPS

New Eaton 9PX3000IRT3U UPS View larger
Previous Next

9PX3000IRT3U

Used

This UPS is ready to install on delivery and carries our 12-month RTB warranty.

New cells have been installed, and the UPS has been thoroughly tested.

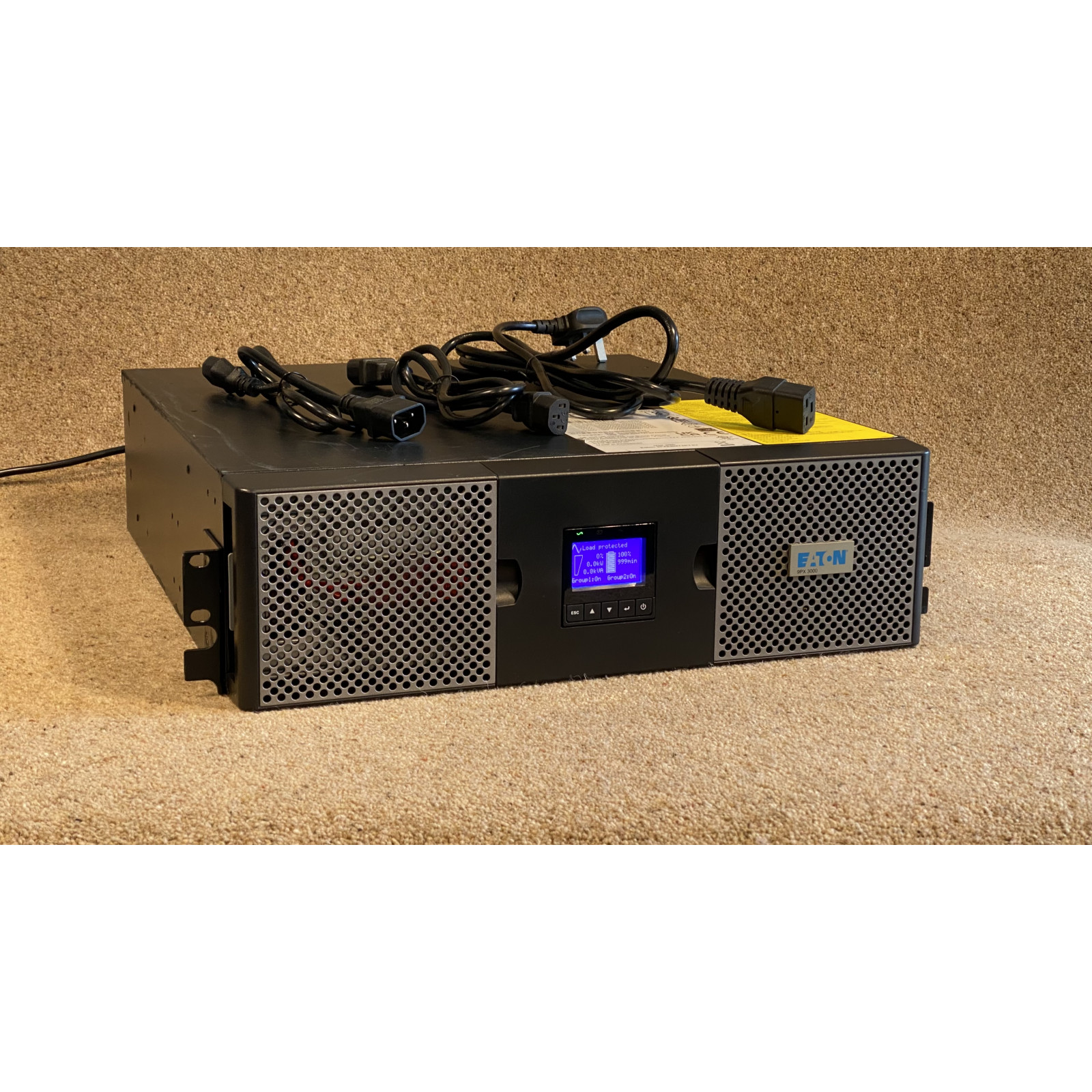

Ships with 1x mains input cable and 2x C13-14 output cables.

This UPS can either be rack-mounted or used as a tower. It has a relatively short depth of just 450mm.


More details

Warning: Last items in stock!

£ 625.00 tax incl.

It is an online/ double-conversion design making it ideal to protect sensitive equipment. It also benefits from an informative LCD control panel that can rotate through 90 degrees when using in tower orientation.

We are sometimes short of original rack-mounting ears. If this is the case when you place your order, we will supply and fit ones that we manufacture ourselves from aluminium extrusions.

Specifications

Part No: 9PX3000IRT3U
Capacity (VA / kVA): 3000 VA
Maximum Output (Watts): 3000 Watts
Form Factor: Rack / Tower
Phase: 1:1
Battery Type: Lead Acid

ELECTRICAL OUTPUT

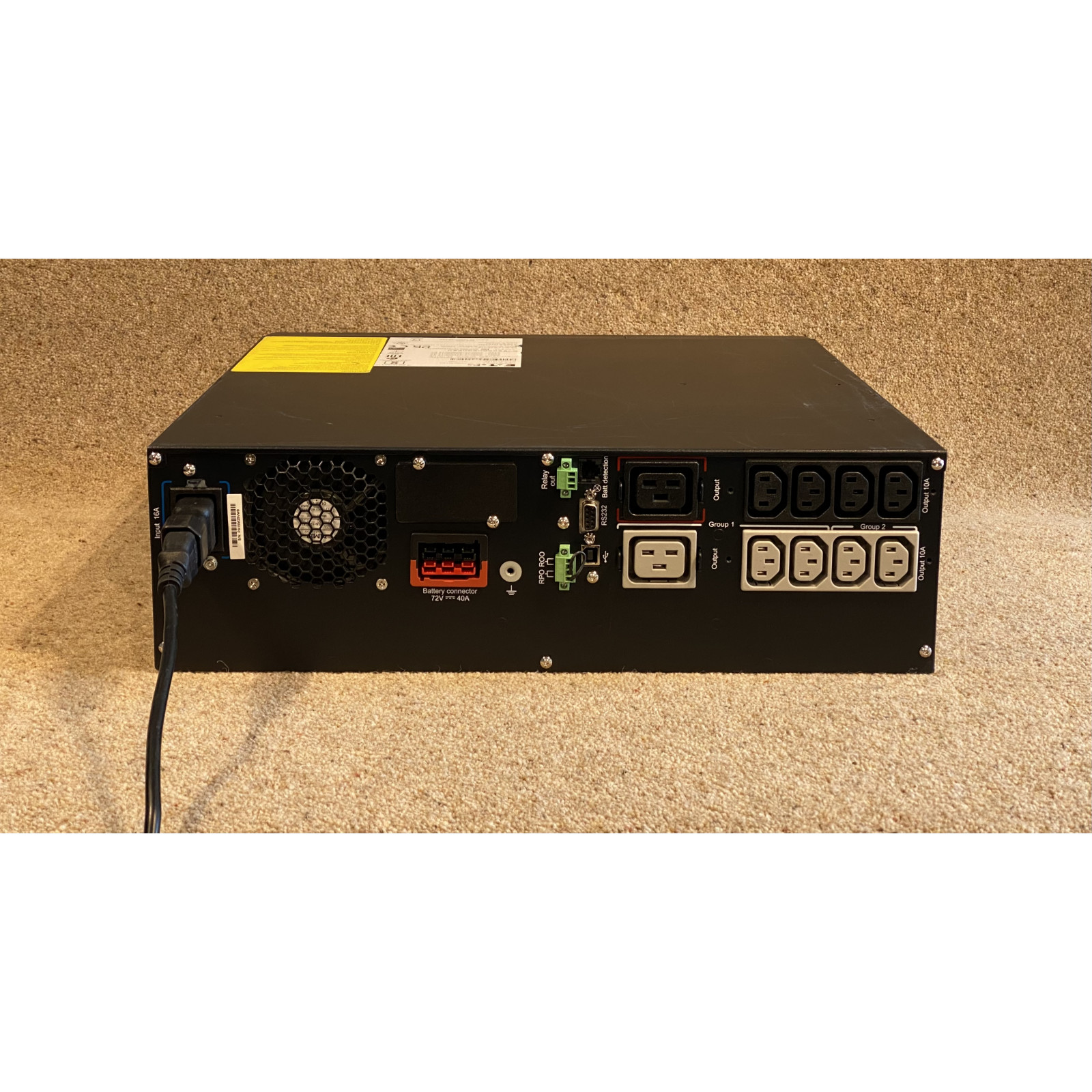

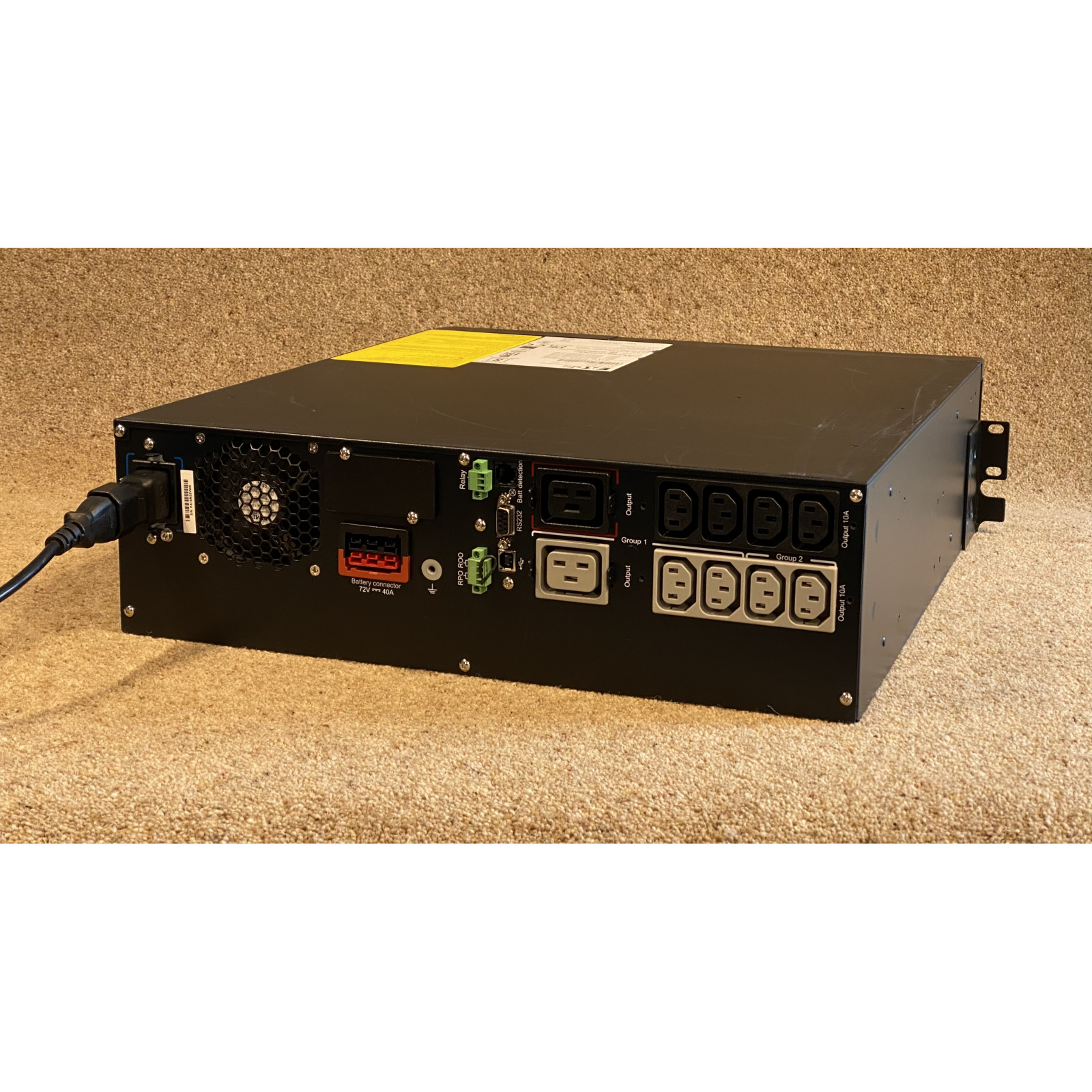

Receptacle: (8) C13, (2) C19
Topology: Online/Double-conversion
Wattage: 3000 W
VA rating: 3000 VA
Output waveform: Sine wave
Voltage: 230V
Output power factor: 1
Output nominal voltage: 230V default (200/208/220/230/240V)
Output voltage range: 200/208/220/230/240 V +/- 1%
Voltage distortion output (linear load) - max: 3
Output frequency: 50/60 Hz
Feed type: 1

ELECTRICAL INPUT
Input nominal voltage: 230V default (200/208/220/230/240V)
Input voltage range: 176-276 V (100-276 V with derating)
Nominal frequency: 50/60 Hz
Input frequency range: 40-70 Hz
Input power factor: >.99

Communication:
USB port (HID compliant)
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Mini-terminal block for output relay
Dry contacts (3 outputs, 1 input, optocoupler, DB9)

Expansion slots:
One slot for optional communication card
Ethernet interface: No
Includes network card: No
Software compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector

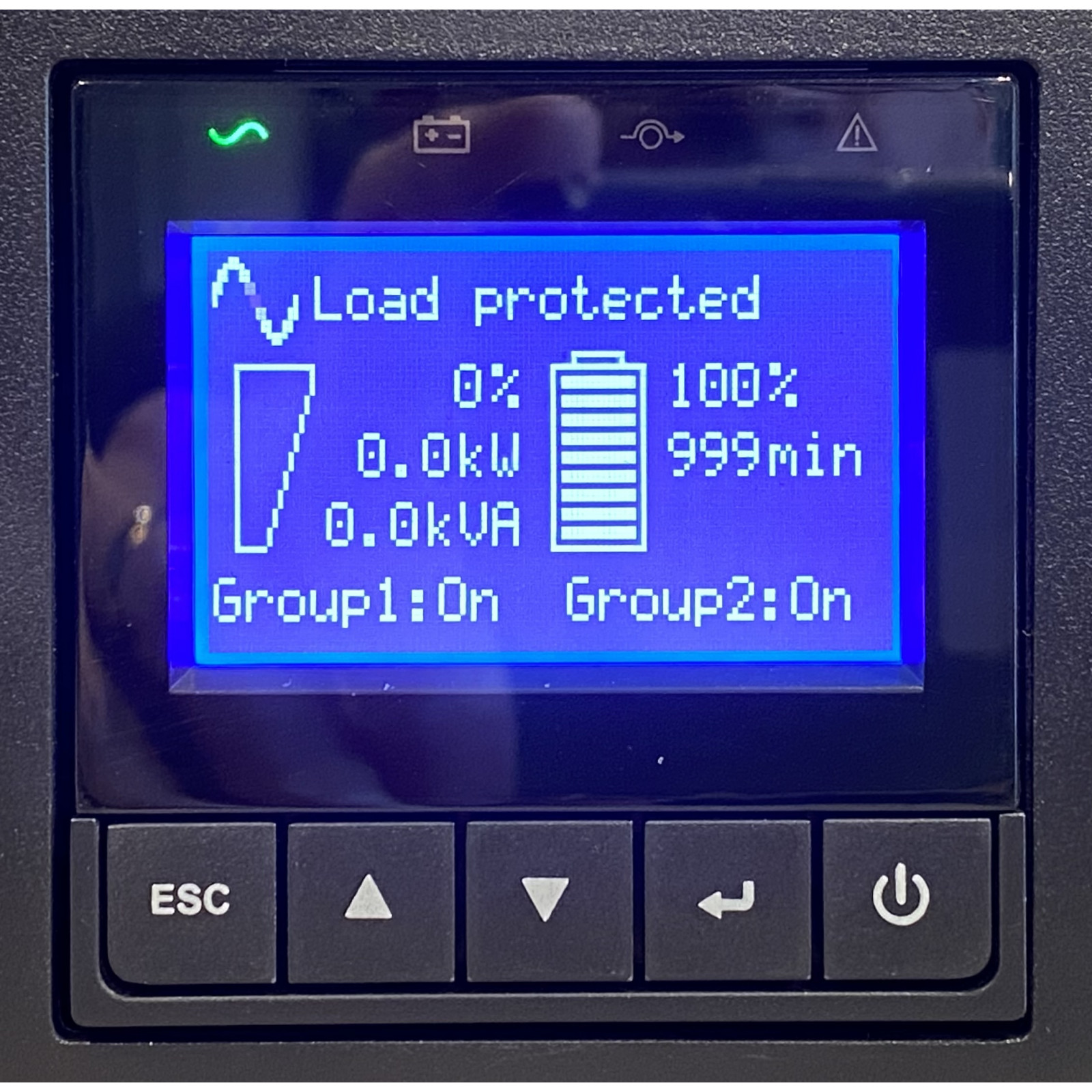

User interface: Multilingual graphical LCD display
Potential free switch contact: Yes

Battery management:
ABM & Temperature compensated charging method (user selectable)
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
Battery replacement
Hot-swappable internal batteries and extended battery modules (EBMs)
Battery quantity: 6
Battery type: Sealed, lead-acid
Extended battery capability: Yes

Height: 130mm
Width: 440mm
Depth: 485mm

  • Topology On-line / Double conversion
