> >SRT10KRMXLI

SRT10KRMXLI

SRT10Kxli View larger
Previous Next

SRT10KRMXLI-WF

Used

Fully tested, fully working SRT10K with 12 month RTB warranty.
New cells installed by us before testing.

More details

Warning: Last items in stock!

£ 2,926.00 tax incl.

Includes the front plastics and rackmount ears. There is an inbuilt networking card of AP9630 class on these UPS for comms and remote mornitoring, and there is a second smartslot which is unpopulated. We reset the networking function to manufacturer defaults and to acquire an IP by DHCP handshake.

Can be used as a rack UPS or as a tower

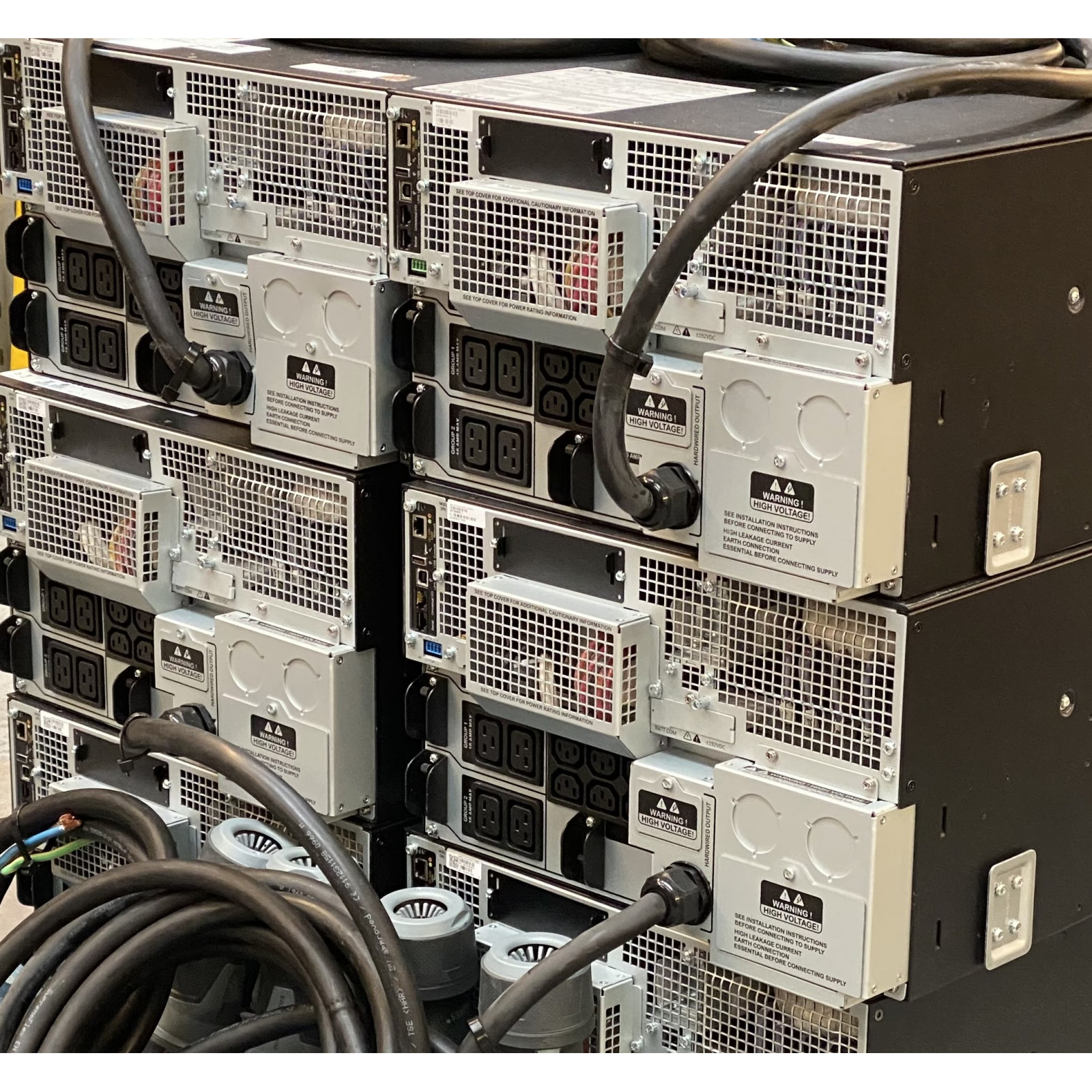

The UPS has 3 output groups that can be independently switched both via the front LCD panel and the web interface. The input is a hard wire panel. They come from APC with no wiring, but sometimes we have cable offcuts that we can include free of charge. Let us know what plug type you intend to use and 1P or 3P and we'll see what is in stock.

We also have some of the extra runtime packs that work with this UPS. Email if you want us to quote for those.

Specifications

10,000VA Max Power
Pure sinewave
online topology

Height (Rack Units) 6U

Input Voltage AC 230 V
Frequency Provided 50/60 Hz
Frequency Required 45 - 65 Hz
Input Connectors Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G)
Power Output Connectors Details 6 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19

Surge Suppression Yes
Surge Energy Rating 480 Joules
Efficiency 98%

Interfaces 1 x management (Ethernet) - RJ-45
1 x management (USB) - 4 pin USB Type B
1 x EPO (emergency power off)
1 x serial - RJ-45
Expansion Slots 1 (total)

Miscellaneous
Features Audible alarm, LCD display

Sound Emission 55 dBA
Dimensions & Weight
Width 26.3 cm
Depth 71.5 cm
Height 43.2 cm
Weight 111.82 kg

  • Topology On-line / Double conversion

No customer reviews for the moment.

Write a review

SRT10KRMXLI

SRT10KRMXLI

Fully tested, fully working SRT10K with 12 month RTB warranty.
New cells installed by us before testing.
