> >Eaton 9SX 3000IR

Eaton 9SX 3000IR

New Eaton 9SX 3000IR View larger
Previous Next

9SX3000IR-WF

Used

This Eaton 9SX3000IR has had new cells fitted to its battery pack and been thoroughly tested by one of our UPS technicians.

It is ready to install on delivery and carries our 12-month RTB warranty.

It is an online design, which makes it suited to powering and protecting delicate electronic equipment.

More details

Warning: Last items in stock!

£ 385.00 tax incl.

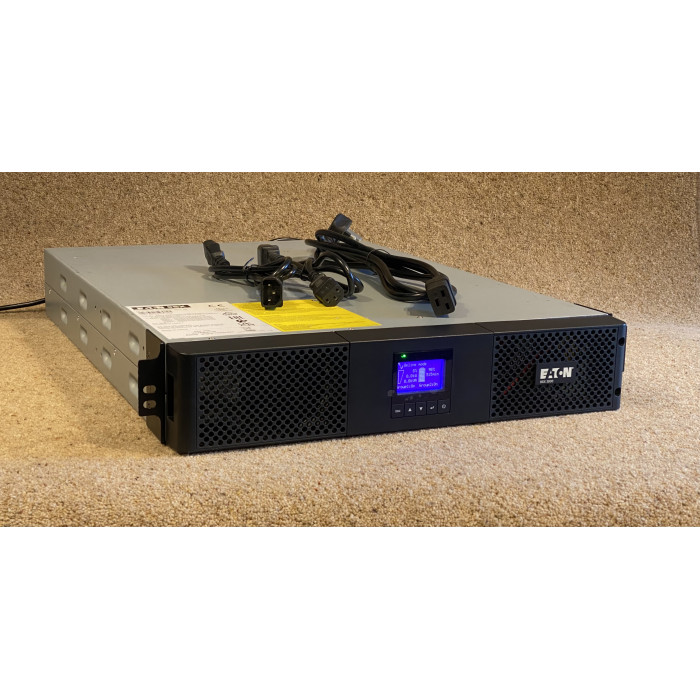

Included with the UPS are 1 x UK mains input cable and 2 x C13-14 output cables.

Specifications

PRODUCT NAME Eaton 9SX UPS
CATALOG NUMBER 9SX3000IR
UPC 743172091147

Electrical output

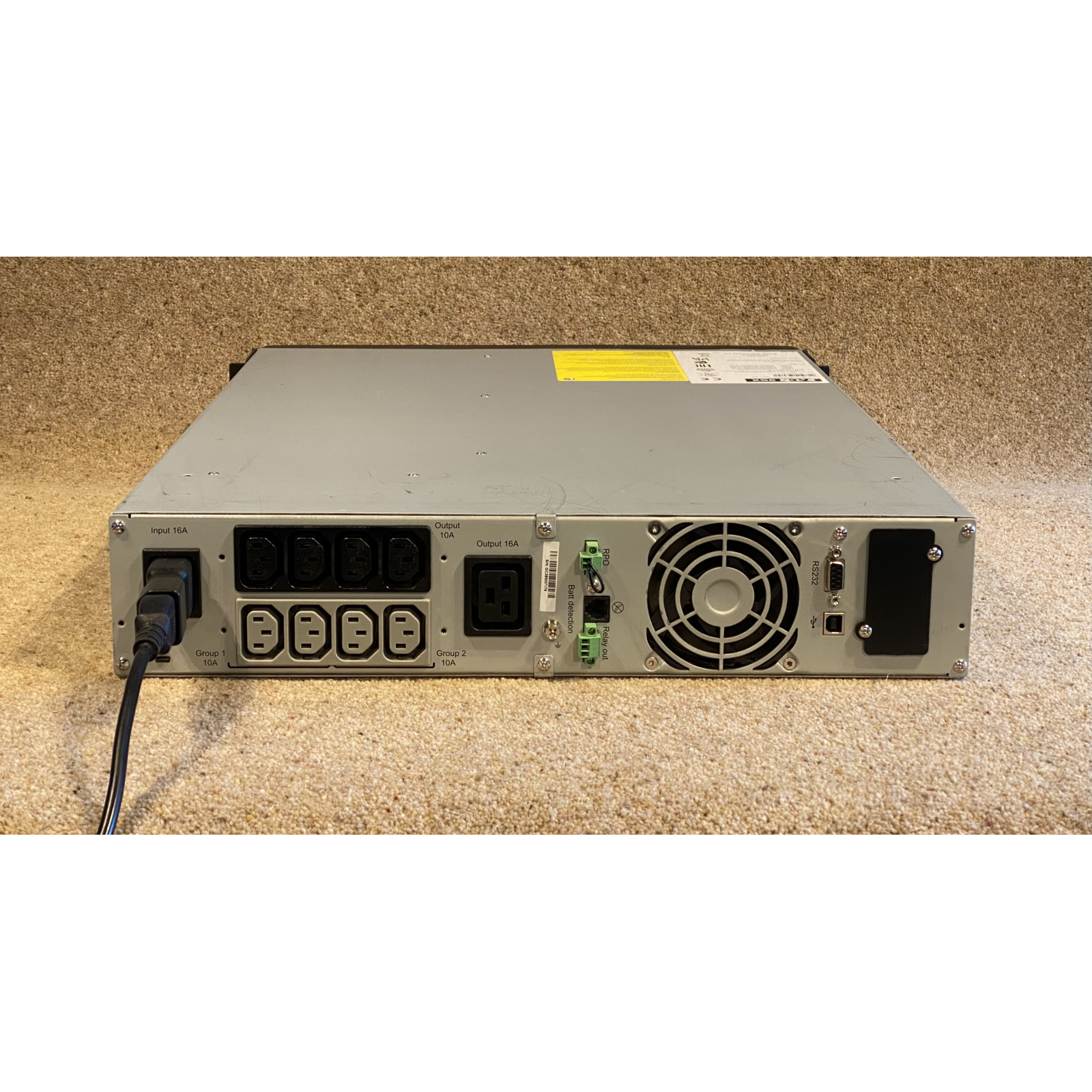

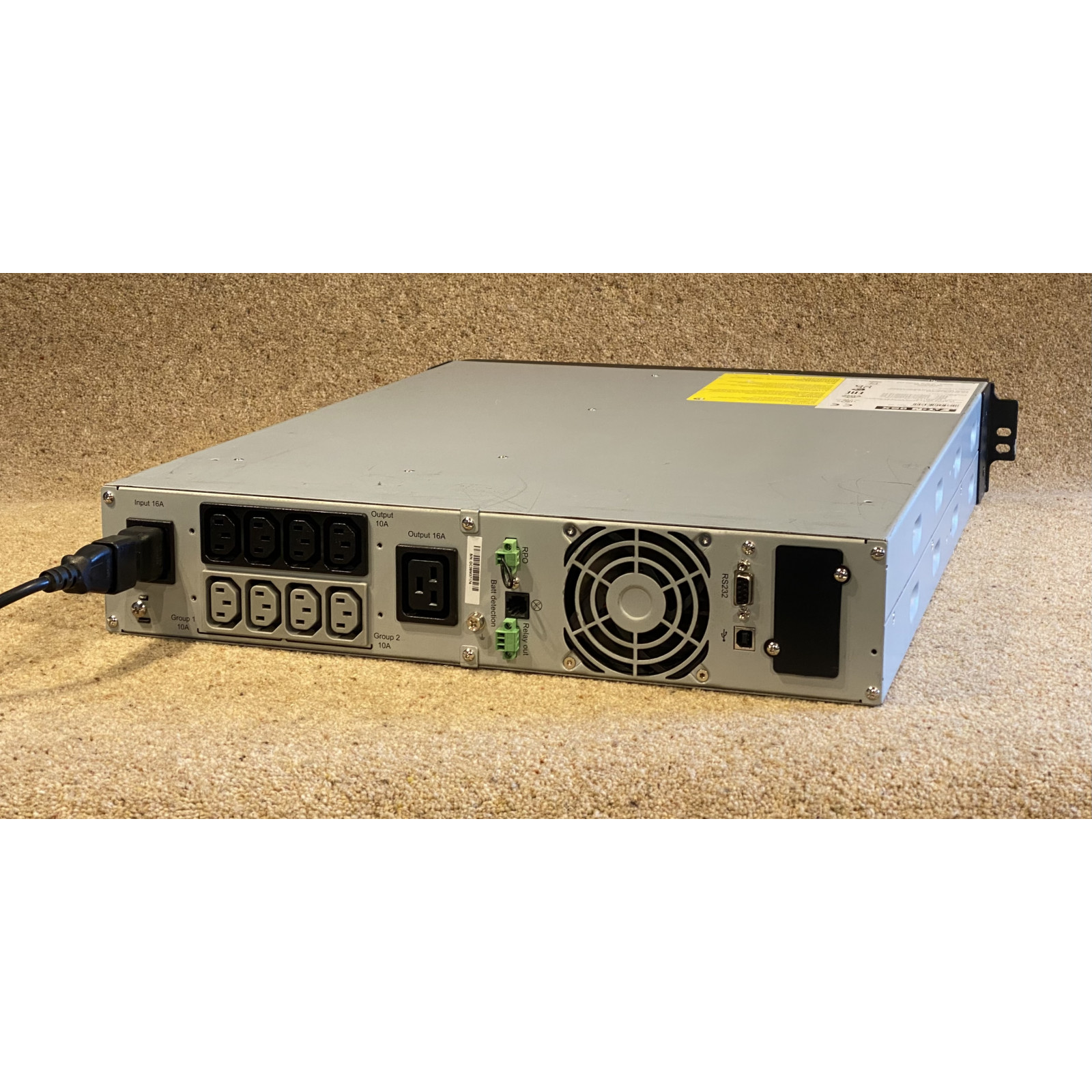

RECEPTACLE (8) C13, (1) C19
VOLTAGE 230V
WATTAGE 2700 W
OUTPUT POWER FACTOR 0.9
OUTPUT VOLTAGE

Electrical Input
INPUT CONNECTION C20
INPUT NOMINAL
VOLTAGE
230V default
(200/208/220/230/240/250V)

Communications
INCLUDES NETWORK
CARD No
COMMUNICATION
USB port (HID
compliant)
•
• Serial port (RS232)
Mini-terminal block
for remote power off
•
Mini-terminal block
for output relay
•
Dry contacts (2
outputs, 1 input,
optocoupler, DB9)
•

ETHERNET INTERFACE No

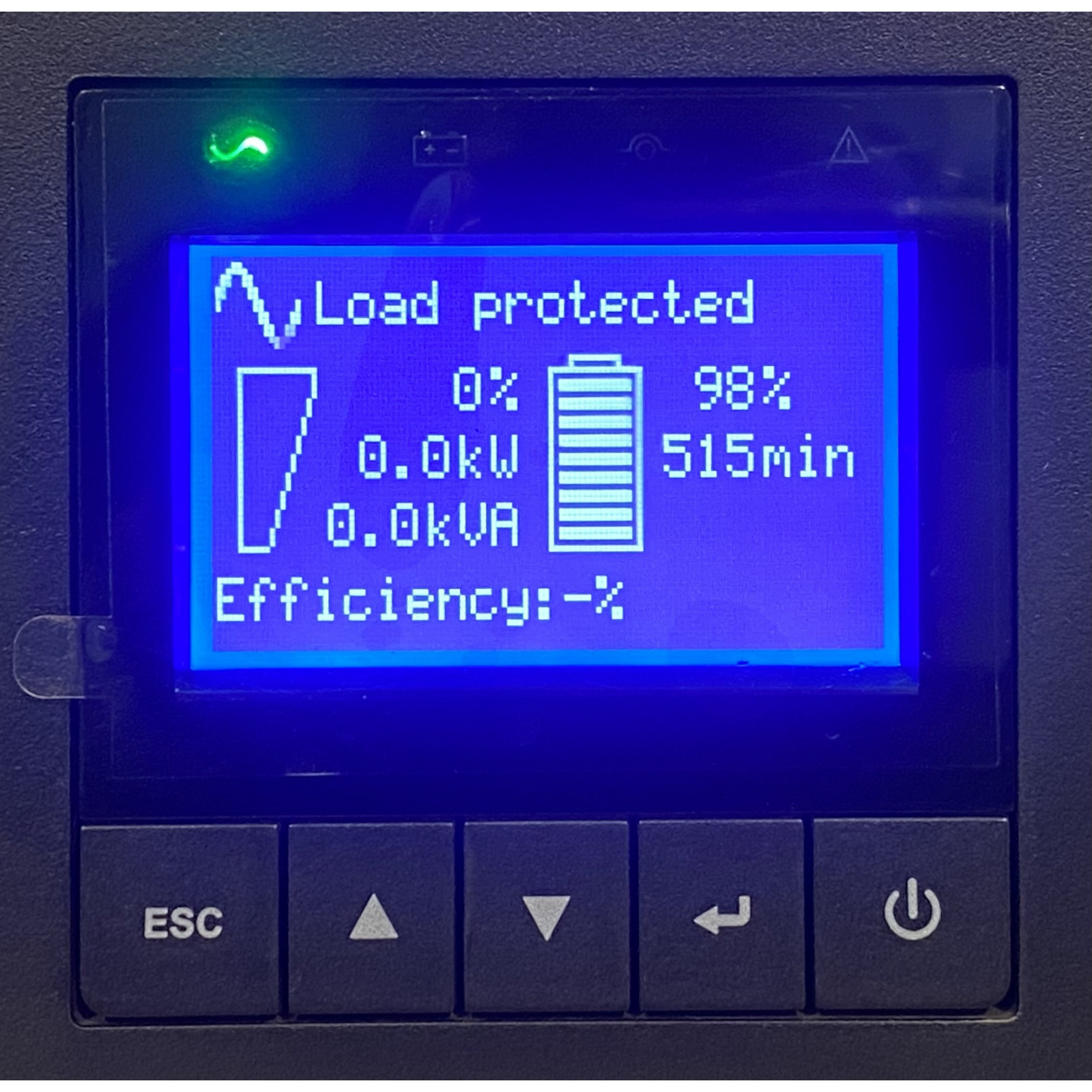

USER INTERFACE Multilingual graphical LCD
display
POTENTIAL FREE
SWITCH CONTACT Yes
EXPANSION SLOTS One slot for optional
communication card
SOFTWARE
COMPATIBILITY
Eaton Intelligent Power
Manager, Eaton Intelligent
Power Protector
NOMINAL FREQUENCY 50/60 Hz
INPUT POWER FACTOR >.99
INPUT CORD LENGTH 1.8m
INPUT VOLTAGE RANGE
200-276 Vac without derating
(up to 140-276 Vac with
derating)
INPUT FREQUENCY
RANGE 40-70 Hz
RANGE 200/208/220/230/240 V +/- 2%
OUTPUT WAVEFORM Sine wave
OUTPUT NOMINAL
VOLTAGE
230V default
(200/208/220/230/240V)
VOLTAGE DISTORTION
OUTPUT (LINEAR LOAD) -
MAX
3
FEED TYPE 1
TOPOLOGY Online/Double-conversion
VA RATING 3000 VA

PRODUCT
LENGTH/DEPTH 608 mm
PRODUCT HEIGHT 86.5 mm
PRODUCT WIDTH 438 mm
PRODUCT WEIGHT 26.5 kg

  • Topology On-line / Double conversion

No customer reviews for the moment.

Write a review

Eaton 9SX 3000IR

Eaton 9SX 3000IR

This Eaton 9SX3000IR has had new cells fitted to its battery pack and been thoroughly tested by one of our UPS technicians.

It is ready to install on delivery and carries our 12-month RTB warranty.

It is an online design, which makes it suited to powering and protecting delicate electronic equipment.
