Eaton 5SC2200IRT

Used

This 2200 VA 1980 watt UPS has had new cells fitted and been thoroughly tested. It is ready to install on delivery and carries our 12-month RTB warranty.

This UPS has a short depth of just 441mm.


More details

Warning: Last items in stock!

£ 385.81 tax incl.

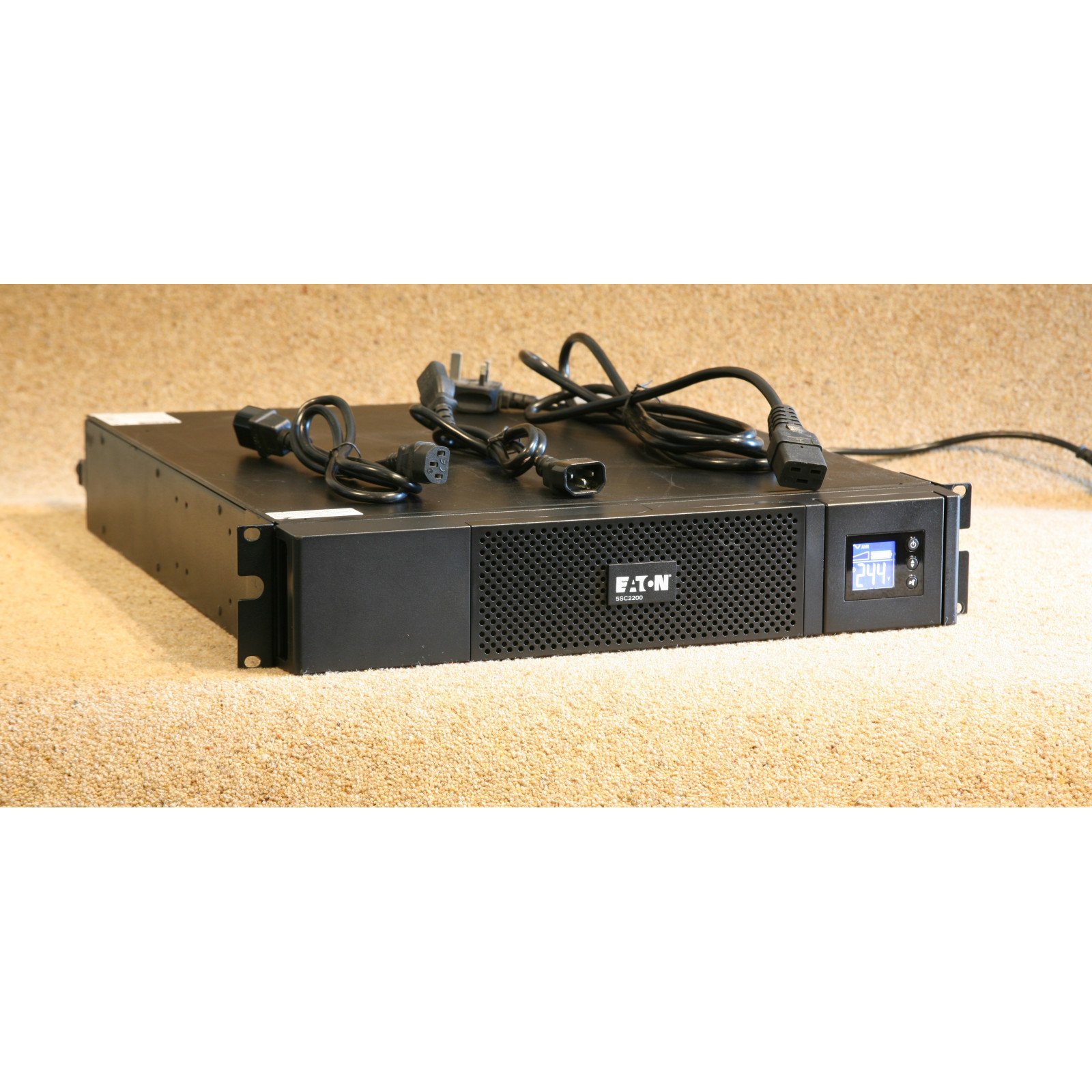

Included with the UPS are 1x mains input cable, 2x C13-14 output cables and rack-mounting ears. If we are short of original ears for your order, we will manufacture some sturdy aluminium ones and include those.

Specifications

BATTERY -
BATTERY TYPE: Lead-acid maintenance-free (replaceable)

BATTERY MANAGEMENT
ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection

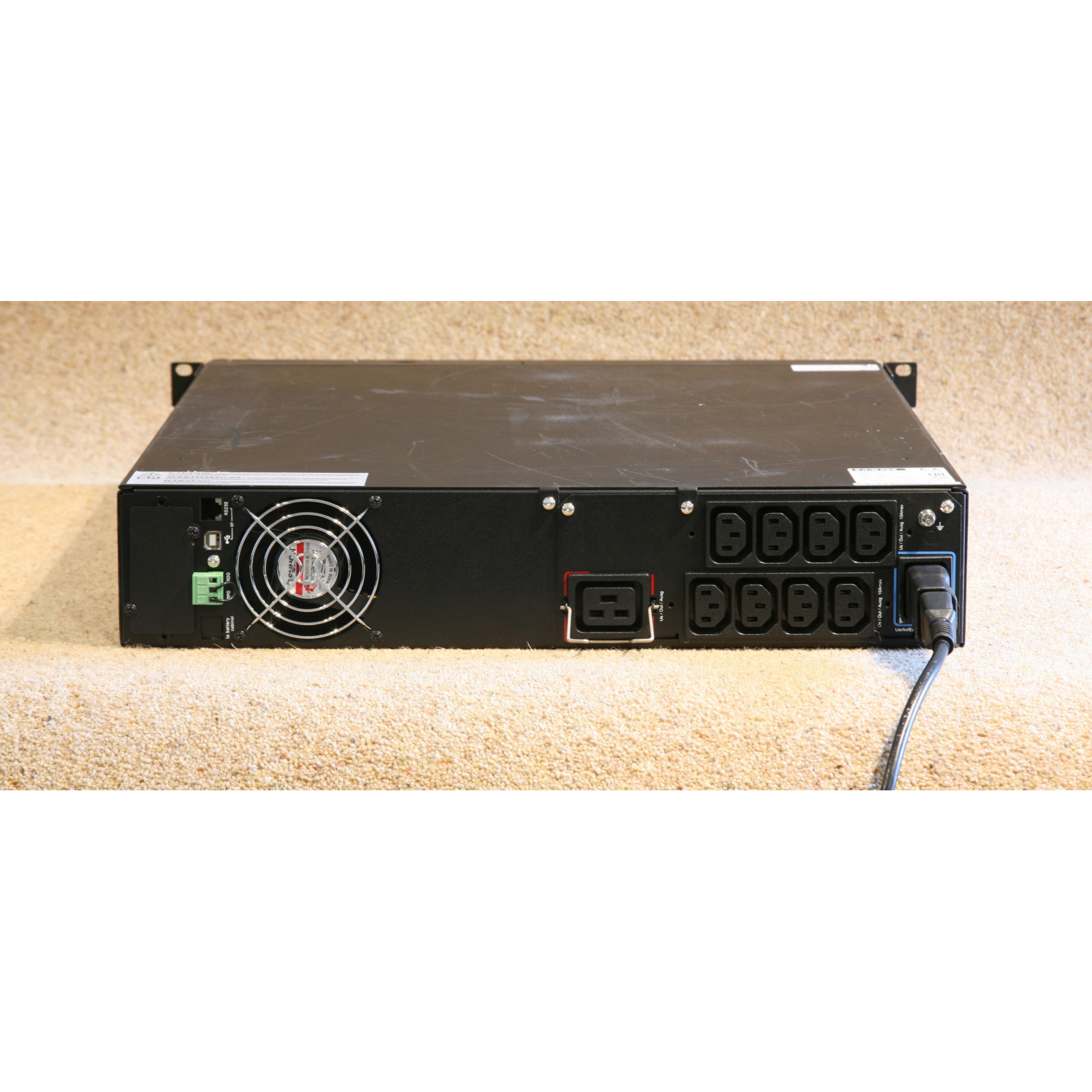

ELECTRICAL OUTPUT SOCKETS: (8) C13, (1) C19
VOLTAGE: 230V
WATTAGE: 1980 W
OUTPUT POWER FACTOR: 0.9
OUTPUT VOLTAGE RANGE: 230 V (+6%/-10%)
OUTPUT WAVEFORM: Sine wave
OUTPUT NOMINAL VOLTAGE: 230V default (220/230/240V)
TOPOLOGY: Line-interactive
VA RATING: 2200 VA
INPUT CONNECTION: C20
INPUT NOMINAL VOLTAGE: 230V default (220/230/240V)
NOMINAL FREQUENCY: 50-60 Hz
INPUT VOLTAGE RANGE: 184-276 V
INPUT FREQUENCY RANGE: 45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system)
COMMUNICATION: USB port (HID compliant)
Serial port (RS232): Mini-terminal block for remote On/Off and Remote Power Off

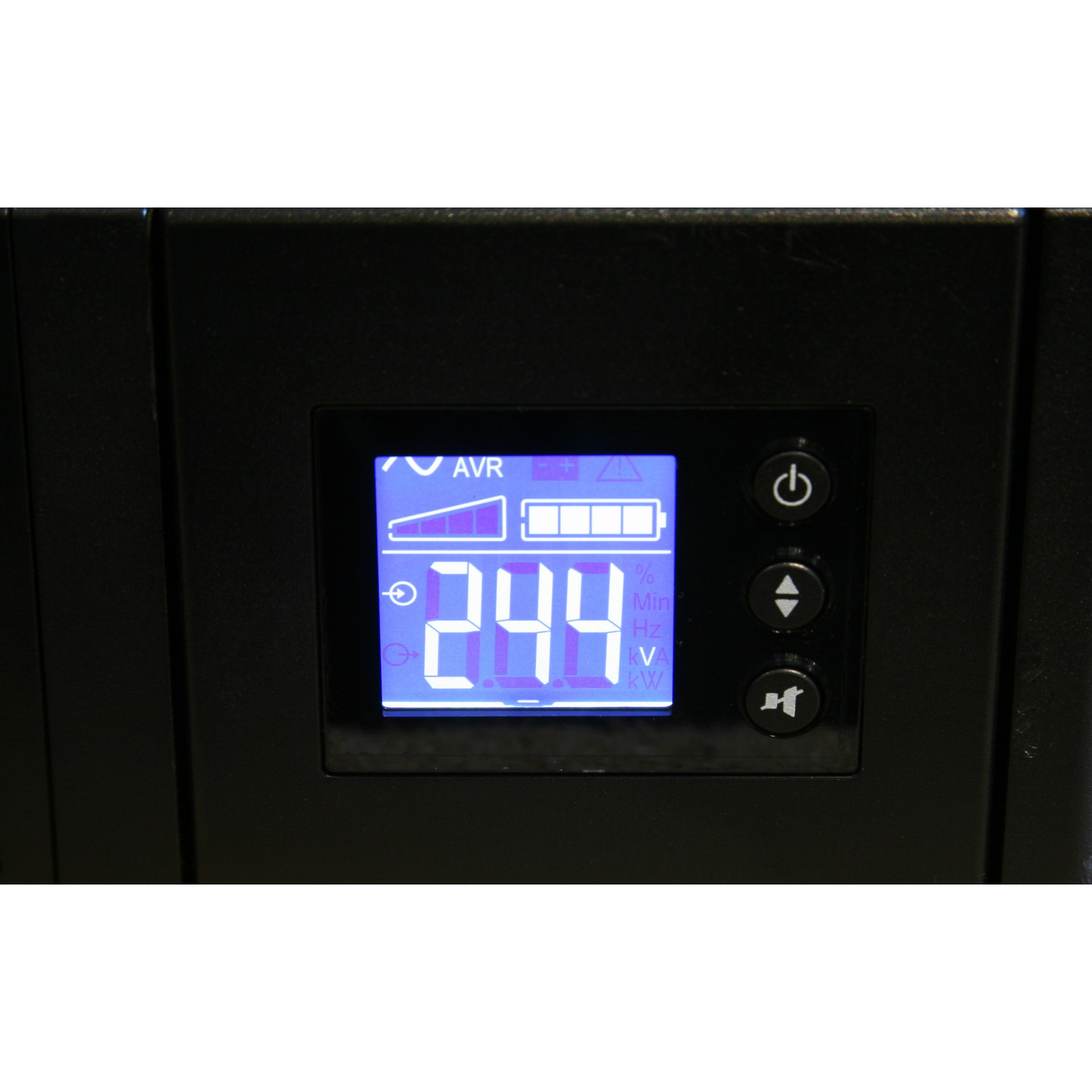

LCD Display
EXPANSION SLOTS: One slot for optional communication card (not included)

ENVIRONMENTAL -
ALTITUDE: 3000 m
NOISE LEVEL: <40 dB at 1 meter
TEMPERATURE RANGE: 0-90% non-condensing
RELATIVE HUMIDITY: 0-90% non-condensing

PRODUCT LENGTH/DEPTH
441 mm
PRODUCT HEIGHT
86.2 mm
PRODUCT WIDTH
522 mm
PRODUCT WEIGHT
26.5 kg

  • Topology Line Interactive

No customer reviews for the moment.

Write a review

Eaton 5SC 2200IRT

Eaton 5SC 2200IRT

This 2200 VA 1980 watt UPS has had new cells fitted and been thoroughly tested. It is ready to install on delivery and carries our 12-month RTB warranty.

This UPS has a short depth of just 441mm.
