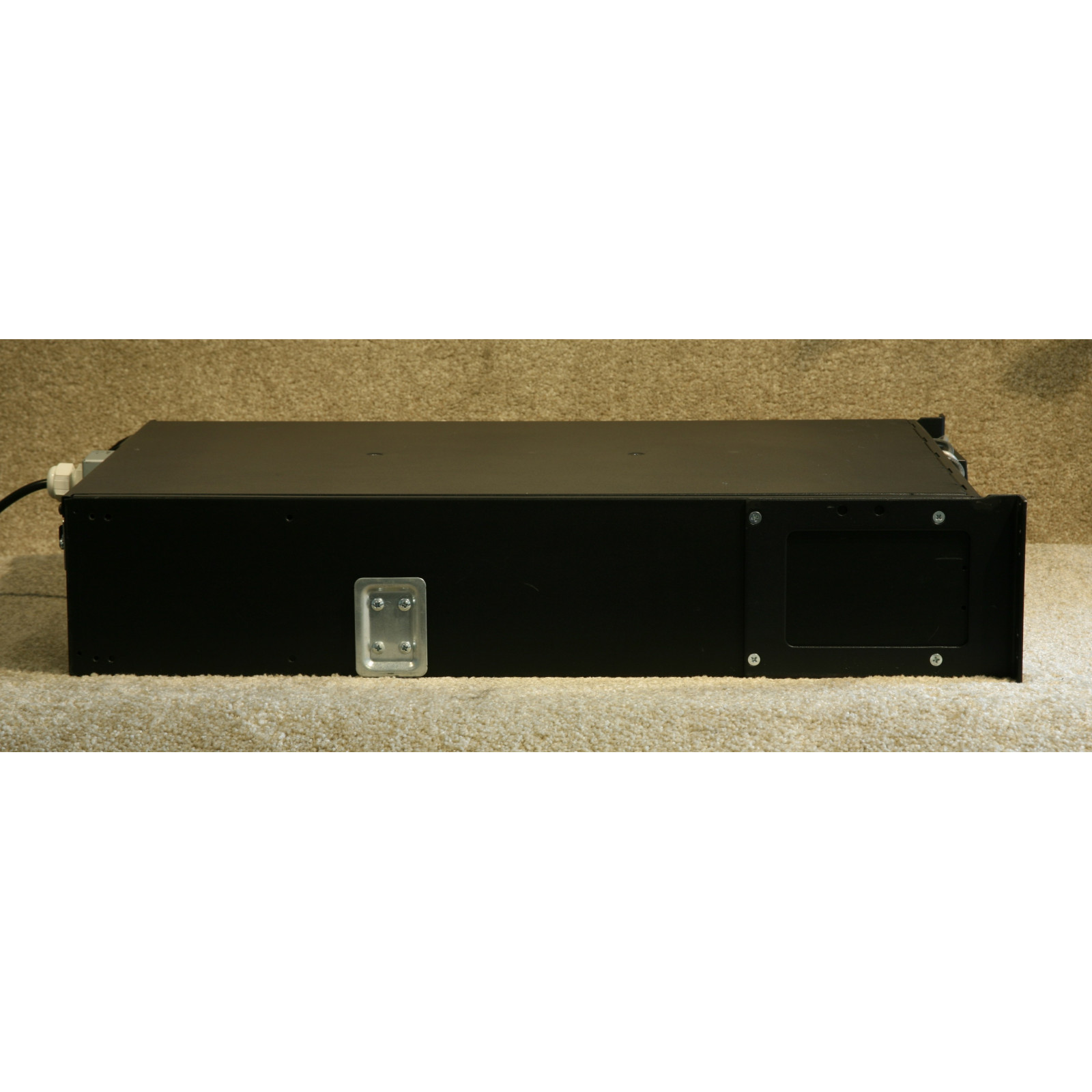

SURTD5000xli

SURTD5000xli-nf

Used

refurbished unit with new cells
12m RTB warranty
2x output cables

Input wiring is "hard wired" and comes with no input lead from APC. We have spares in stock and can wire as per your needs - email to let us know.

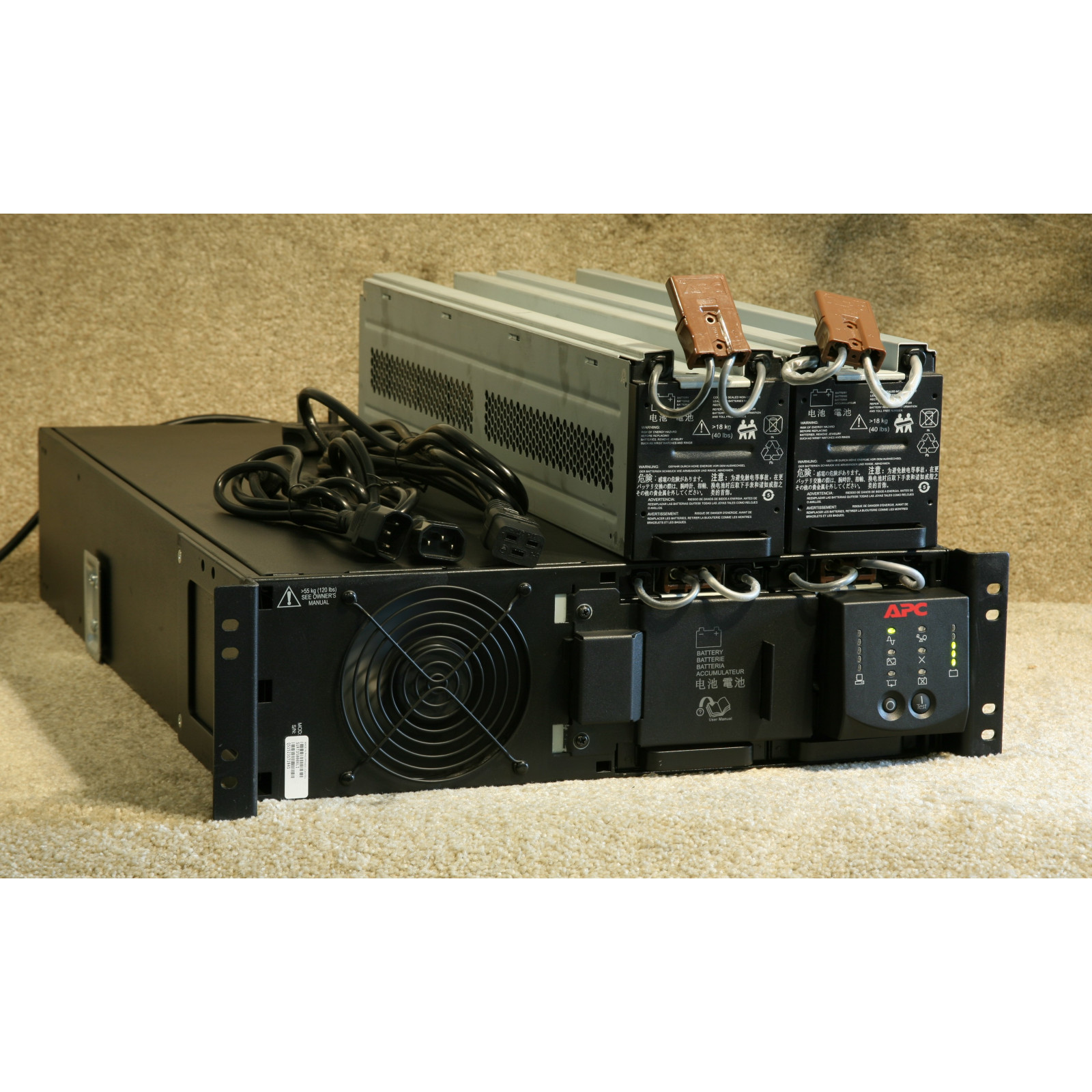

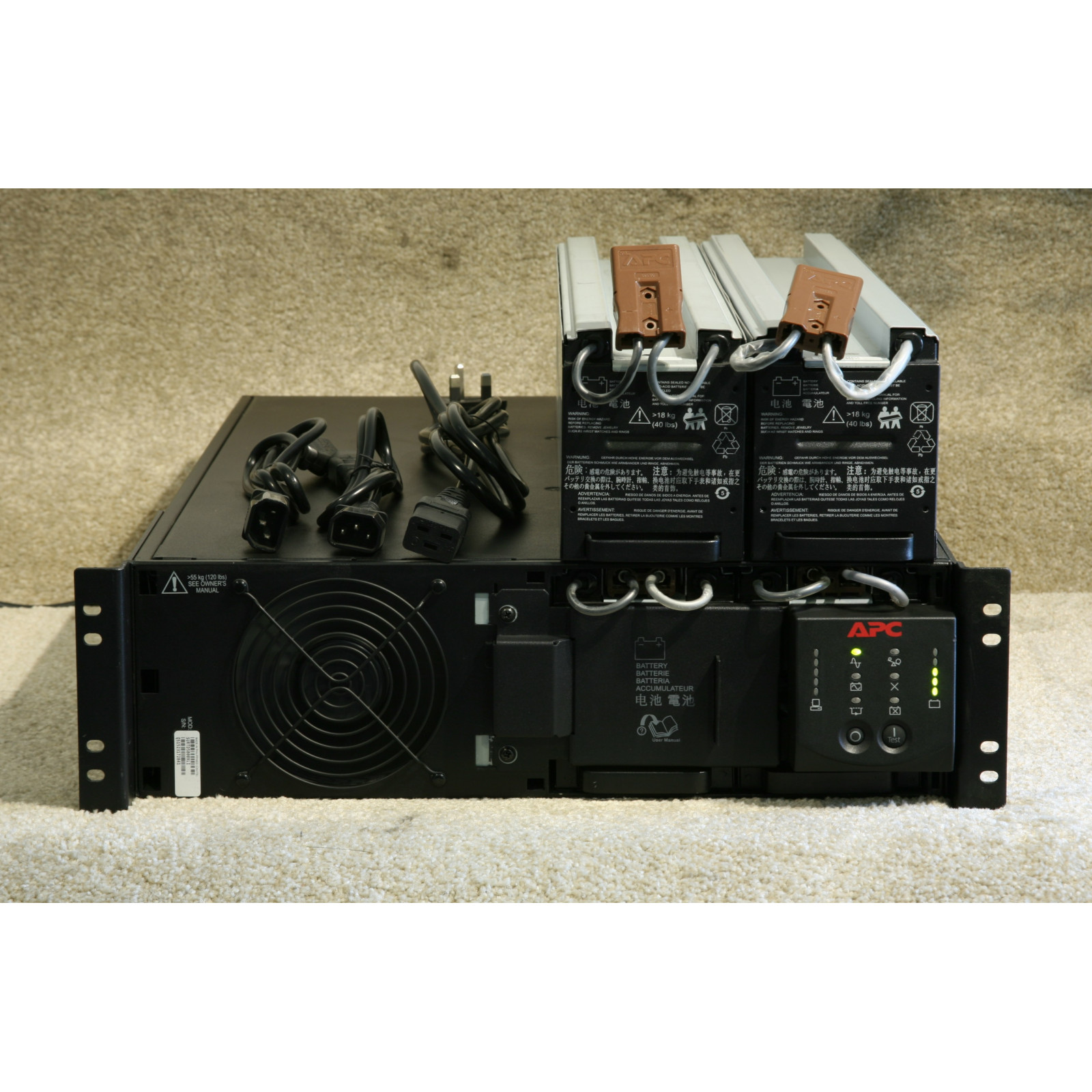

Front plastic which covers the battery packs is not included.
The main plastic with LED + buttons is included.

More details

Warning: Last items in stock!

£ 670.00 tax incl.


Output Power Capacity 3500 Watts / 5000 VA

Nominal Input Voltage 230V
Input Frequency 50/60 Hz +/- 5 Hz (auto sensing)
Input voltage window for normal operation 160V-280V AC

Nominal Output Voltage 230V
Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion Less than 3%
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Other Output Voltages 220, 240
Crest Factor 3 : 1

Topology Double Conversion Online
Waveform Type Sine wave

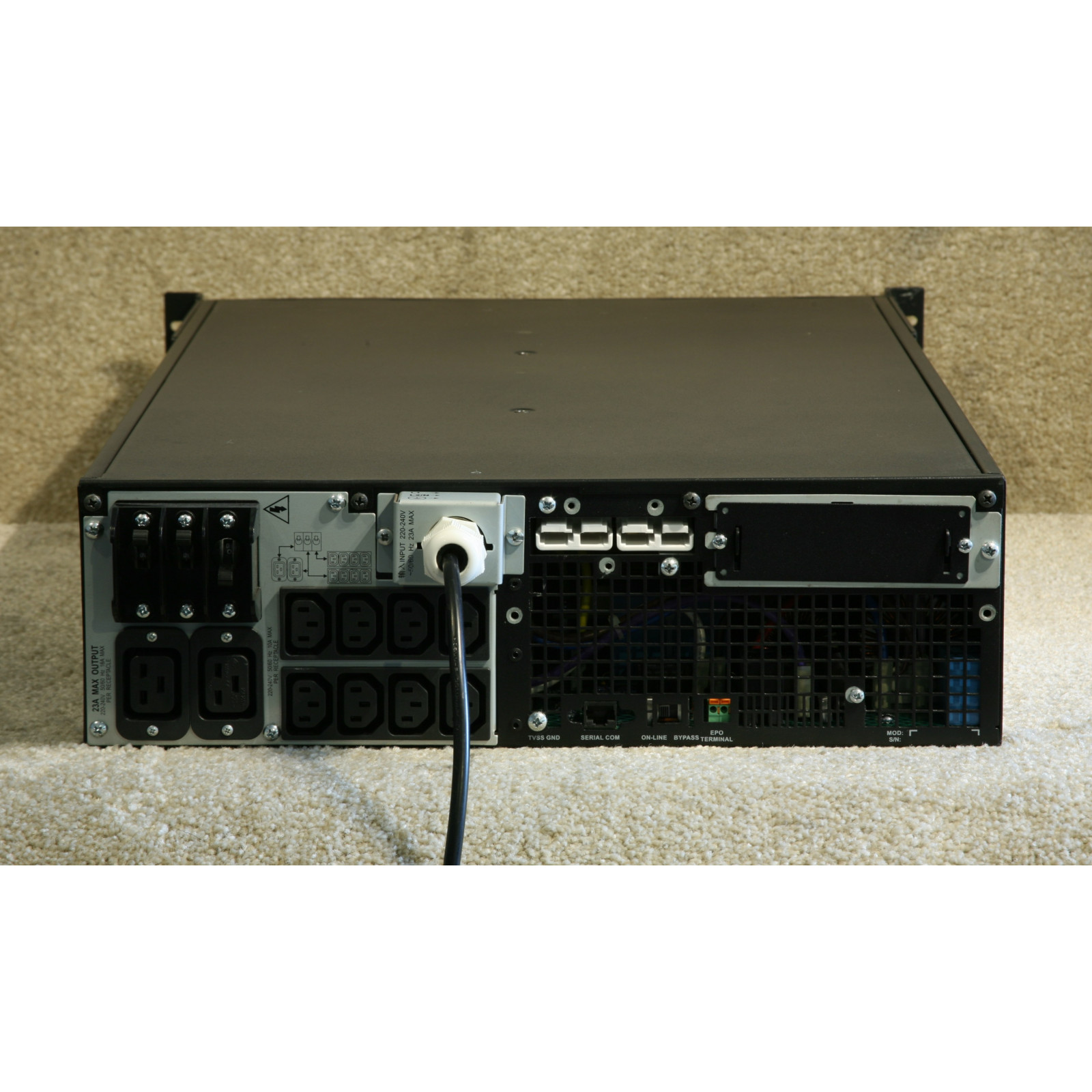

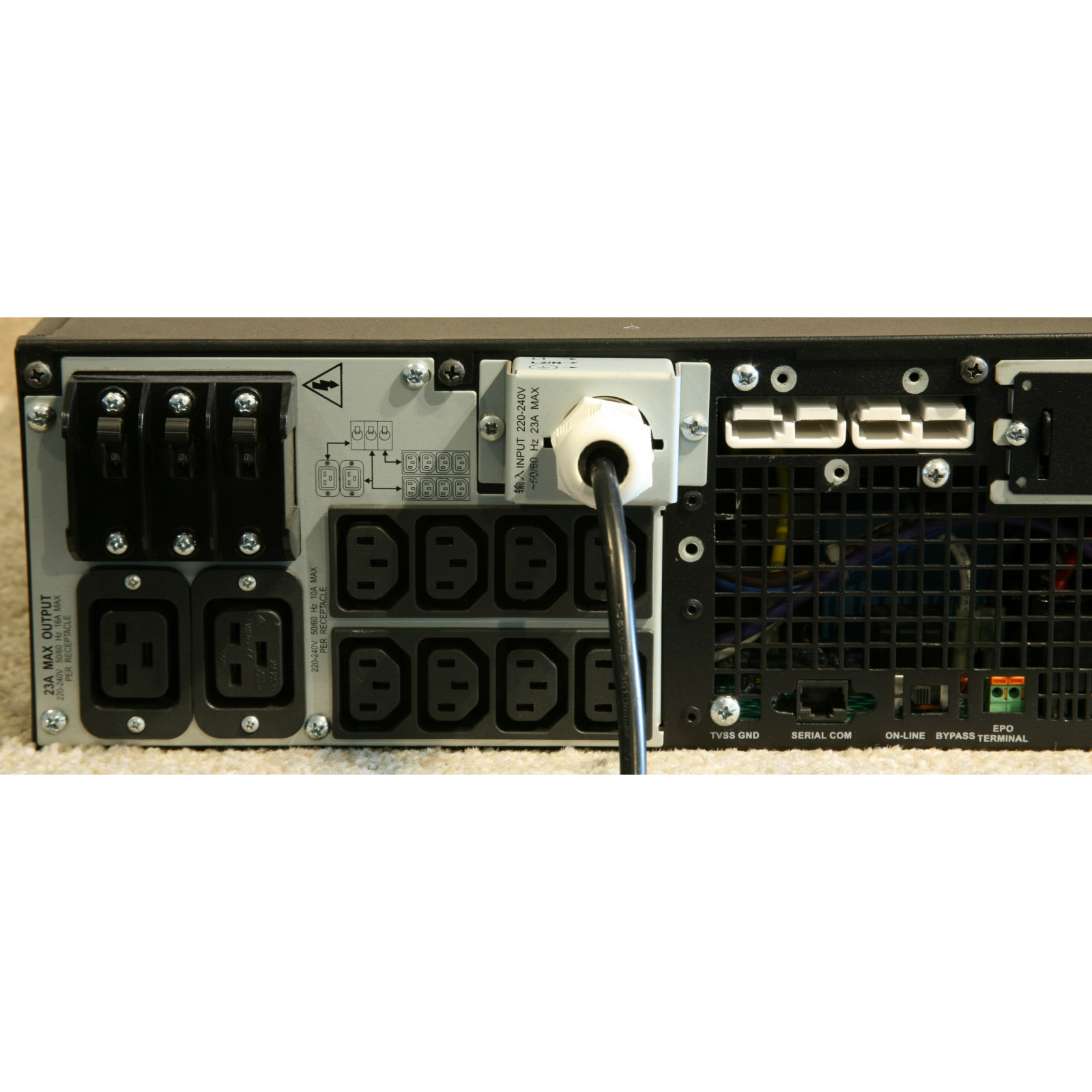

Output Connections (8) IEC 320 C13 + (2) IEC 320 C19

Bypass Internal Bypass (Automatic and Manual)

Typical battery recharge time 2.5 Hours

Control panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace
Battery : Overload and Bypass Indicators
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO) Yes

Surge energy rating 555J Joules
Filtering Full time multi-pole noise

Maximum Height 432.00 mm
Maximum Width 130.00 mm
Maximum Depth 660.00 mm
Rack Height 3U

Shipping Weight ~65 KG


Audible noise at 1 meter from surface of unit 55.00 dBA
Online Thermal Dissipation 1220.00 BTU/hr

  • Topology On-line / Double conversion

No customer reviews for the moment.

Write a review

SURTD5000xli

SURTD5000xli

refurbished unit with new cells
12m RTB warranty
2x output cables

Input wiring is "hard wired" and comes with no input lead from APC. We have spares in stock and can wire as per your needs - email to let us know.

Front plastic which covers the battery packs is not included.
The main plastic with LED + buttons is included.
