Eaton 9SX 5000

Fully working UPS, new cells installed, 12 month RTB warranty.

Pure sine wive, Double conversion/online UPS type with 5000VA max load power.

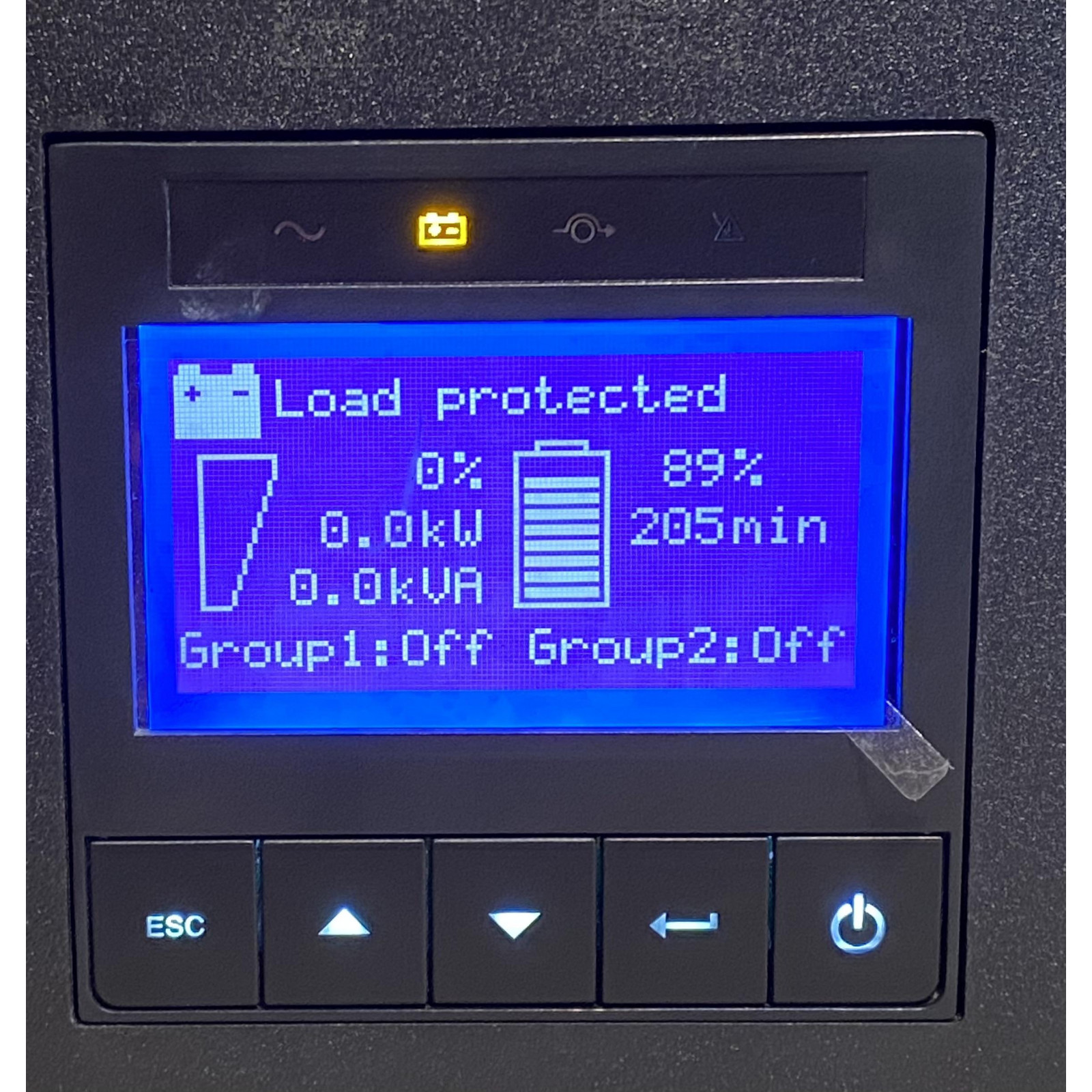

Recent model type with LCD display for configuration, reporting and diagnosis.

The UPS is ready for use on delivery. The input type of this is hard wire, so you wire on whichever plug you need for the location, or you can wire direct to a distribution panel. If you let us know what type of plug you need we can see if we have any. If we do we include free of charge. I have included photos of the hard wire terminal block (which also has an output section, which can be used but does not have to be - there are standard C13 and C19 sockets for output too) so you can see what you'll be working with.

We include 2x output cables. More available at cost (£2 per cable)

We normally have compatible rails and network cards in stock, but these are not included in the price.

General
Topology On-line double conversion with PFC (Power Factor Correction) system
Configuration Rack/Tower
Part Number 9SX5KiRT
Rating (VA/Watts) 5000/4500

Dimensions (H x W x D, mm) 130 (3U) x 440 x 685
Weight (kg) 48

Electrical Input Connection Hardwired - see manual for terminal block layout

Input Voltage Range 176-276V without derating (up to 100–276V with derating)

Nominal Voltage 200/208/220/230/240V
Frequency 50/60 Hz autoselection
Frequency Range 40-70 Hz

Short Circuit Current 90 A
THDI <5%

Electrical Output Voltages 200/208/220/230/240V +/– 1%
Voltage THD < 2%

8x C13 output sockets
2x C19 output sockets
1x provision for hard wire to the rear panel

Overload Capacity 102–110% : 120s,

Efficiency (Normal Mode) Up to 94% in Online mode, 98% in Hi-Efficiency mode
Output Frequency 50/60 Hz autoselect, frequency converter as standard
Load Crest Factor 3:1

User Interface Multilingual graphical LCD display
Communication Ports 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off
Communication Slot 1 slot for Network-MS card, ModBus-MS or Relay-MS cards.

Audible Noise <45dB
Operating Temperature 0 to 40°C continuous
