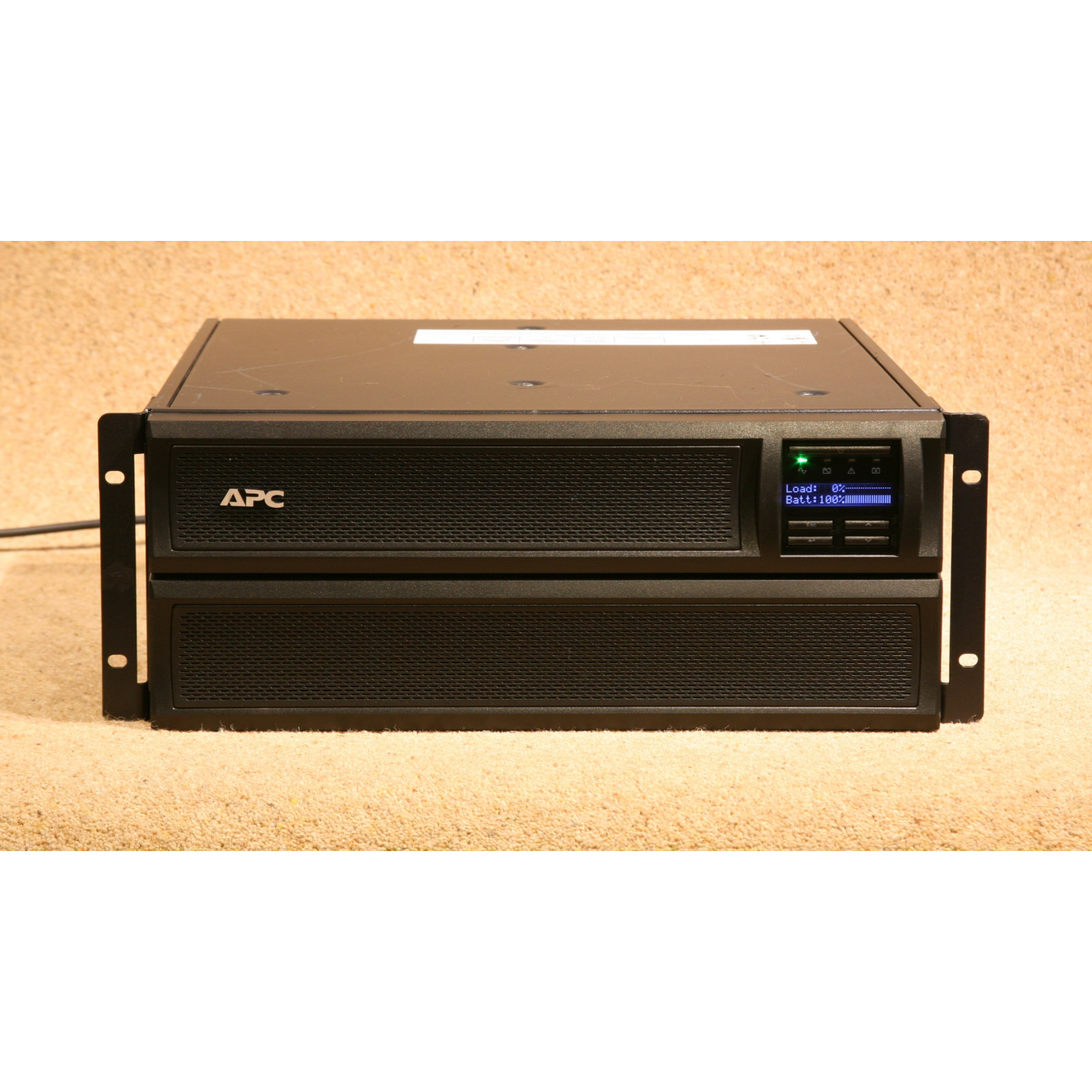

APC SMX3000HV 4U Boxed with Rack / Tower Kits

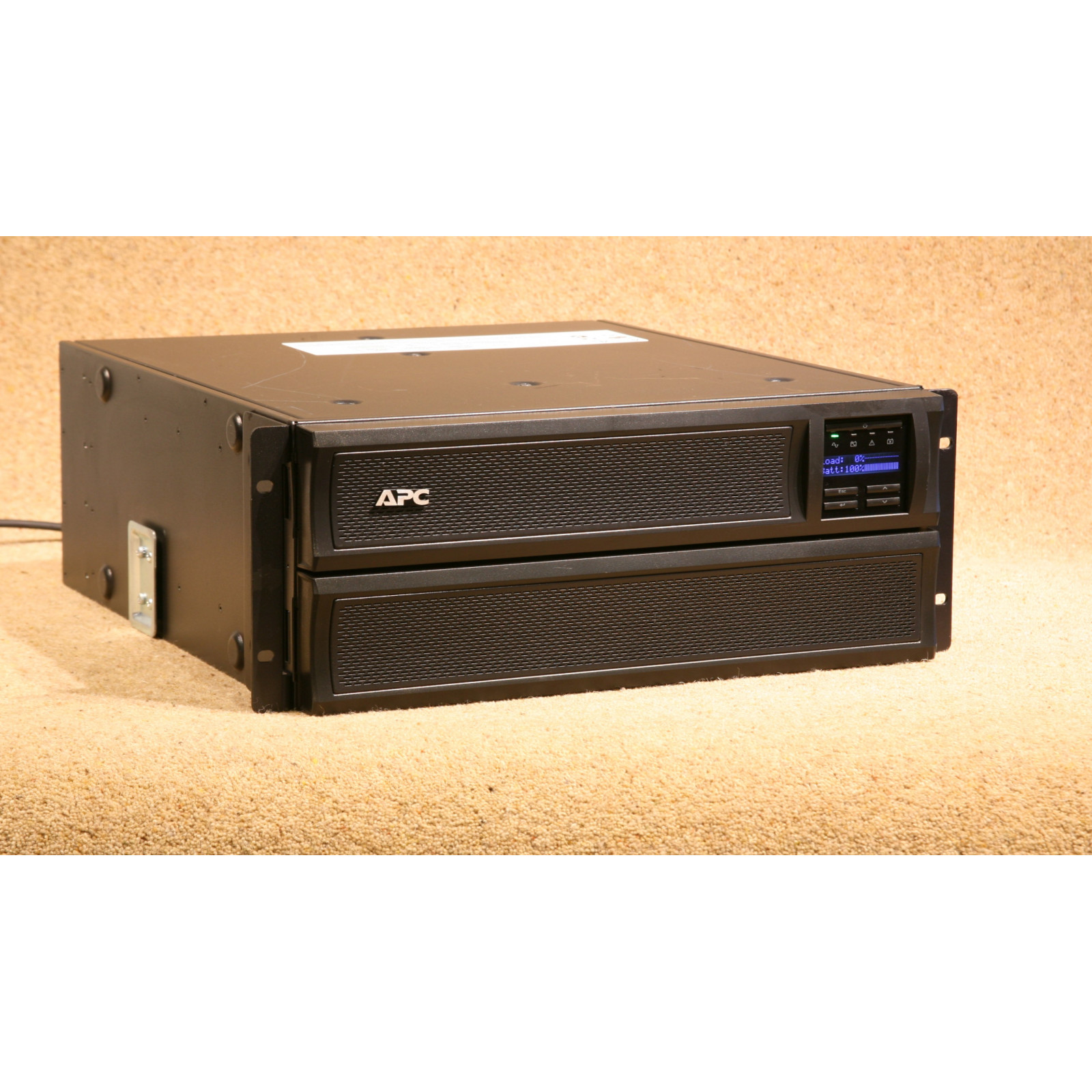

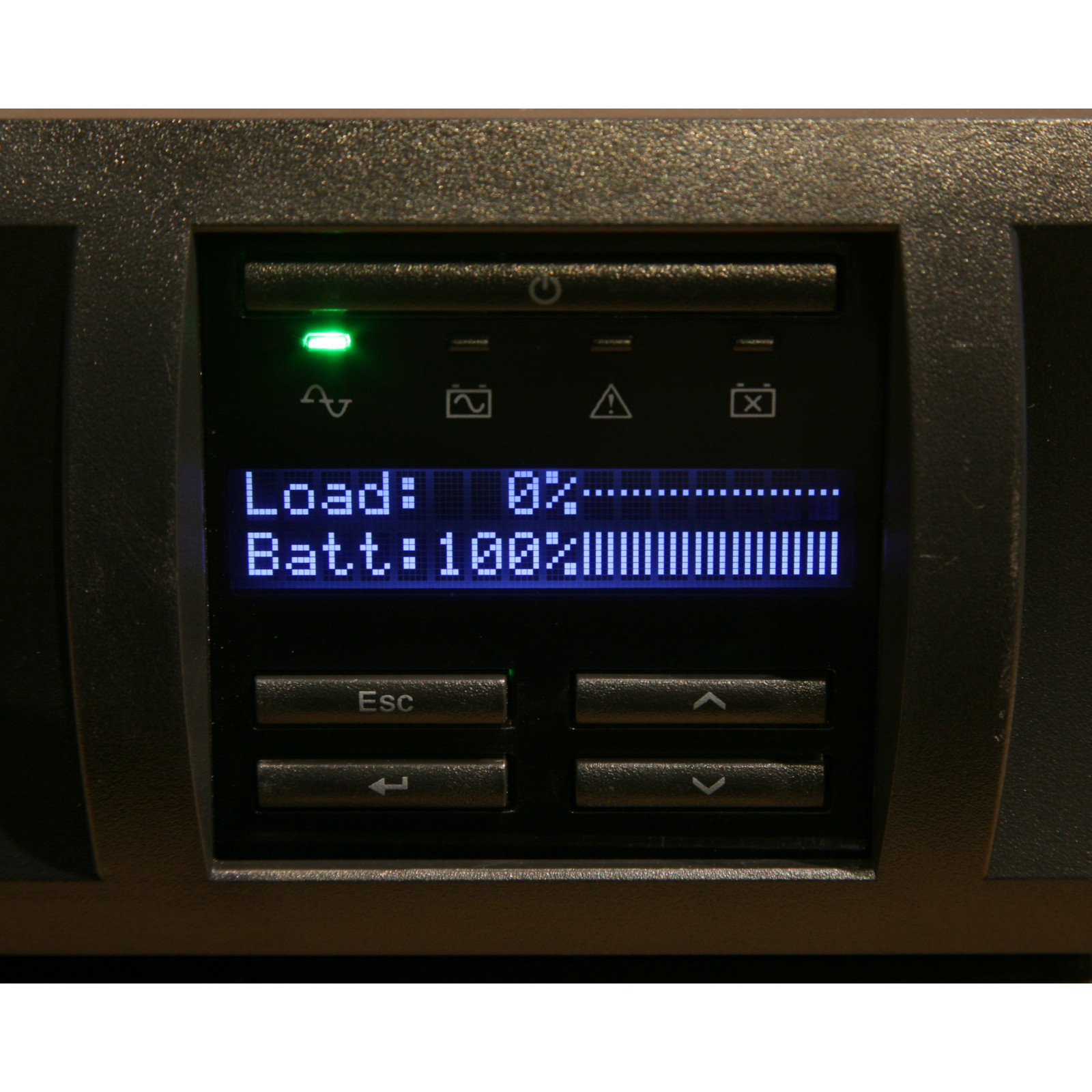

It can be rack-mounted or used as a tower. The informative LCD control panel can be rotated through 90 degrees to facilitate this.

This UPS is ready to install on delivery and carries our 12-month RTB warranty.

What's in the box?

• Fully tested and refurbished SMX3000HV with new batteries fitted

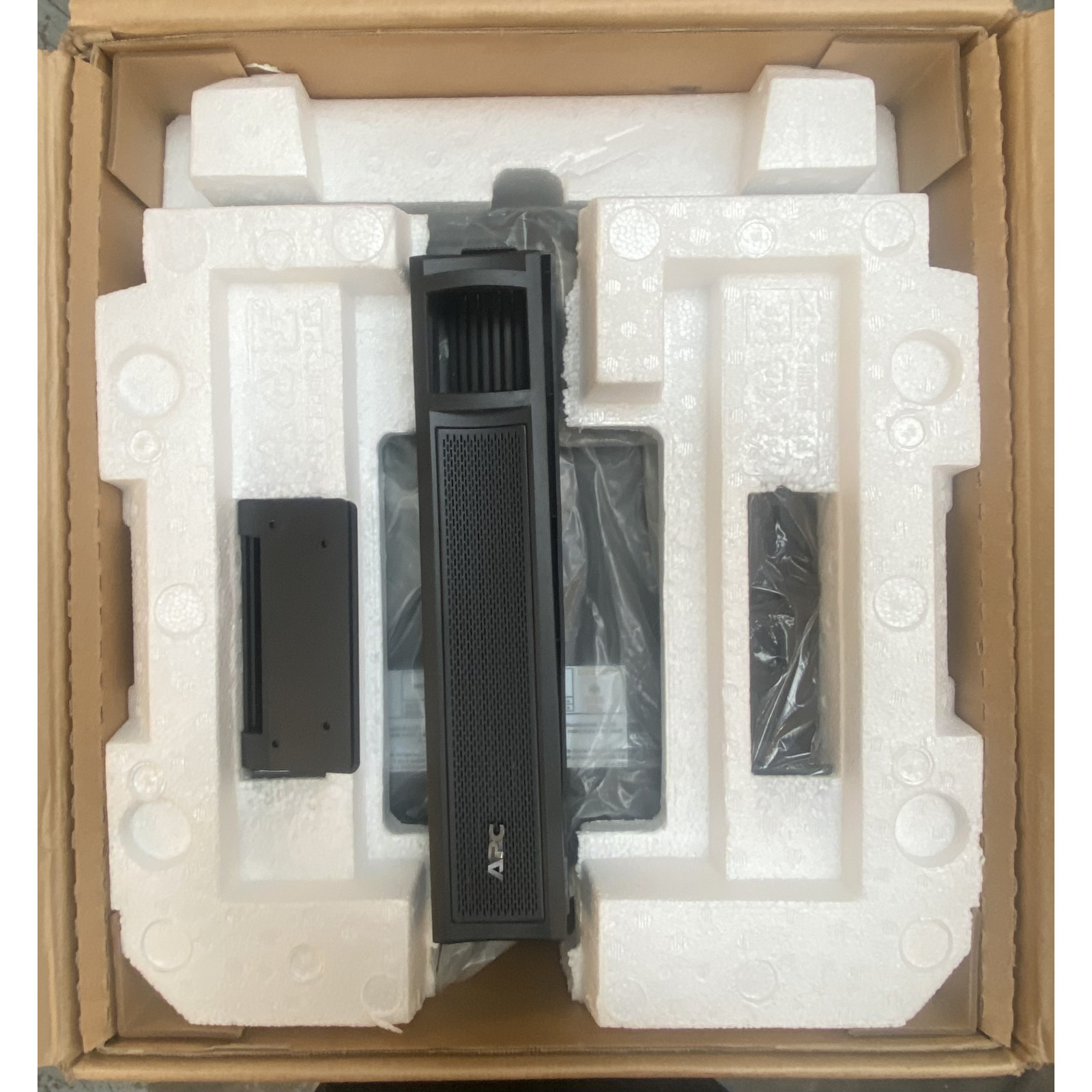

• Front plastic fascias

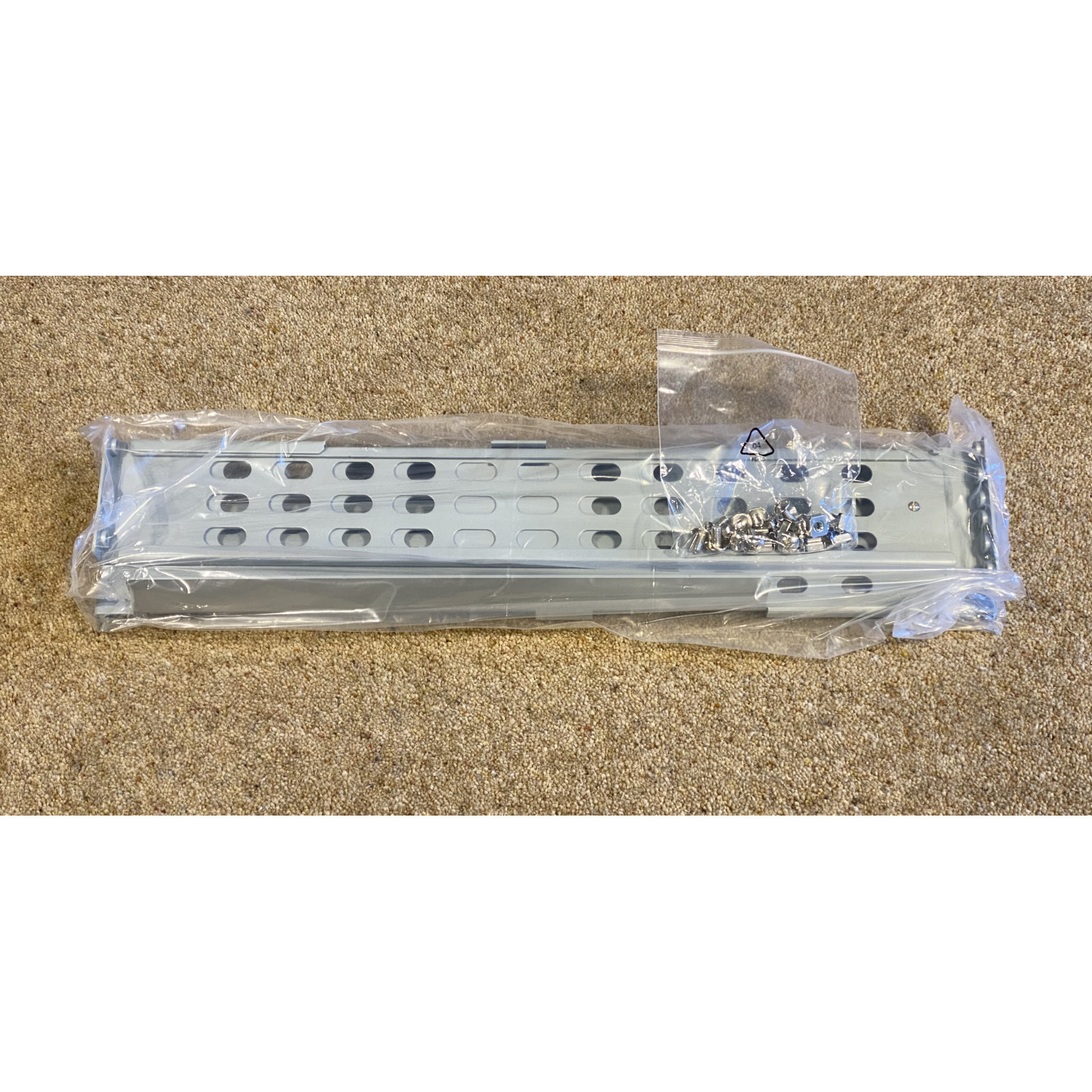

• Rack-mounting rails, ears and screws

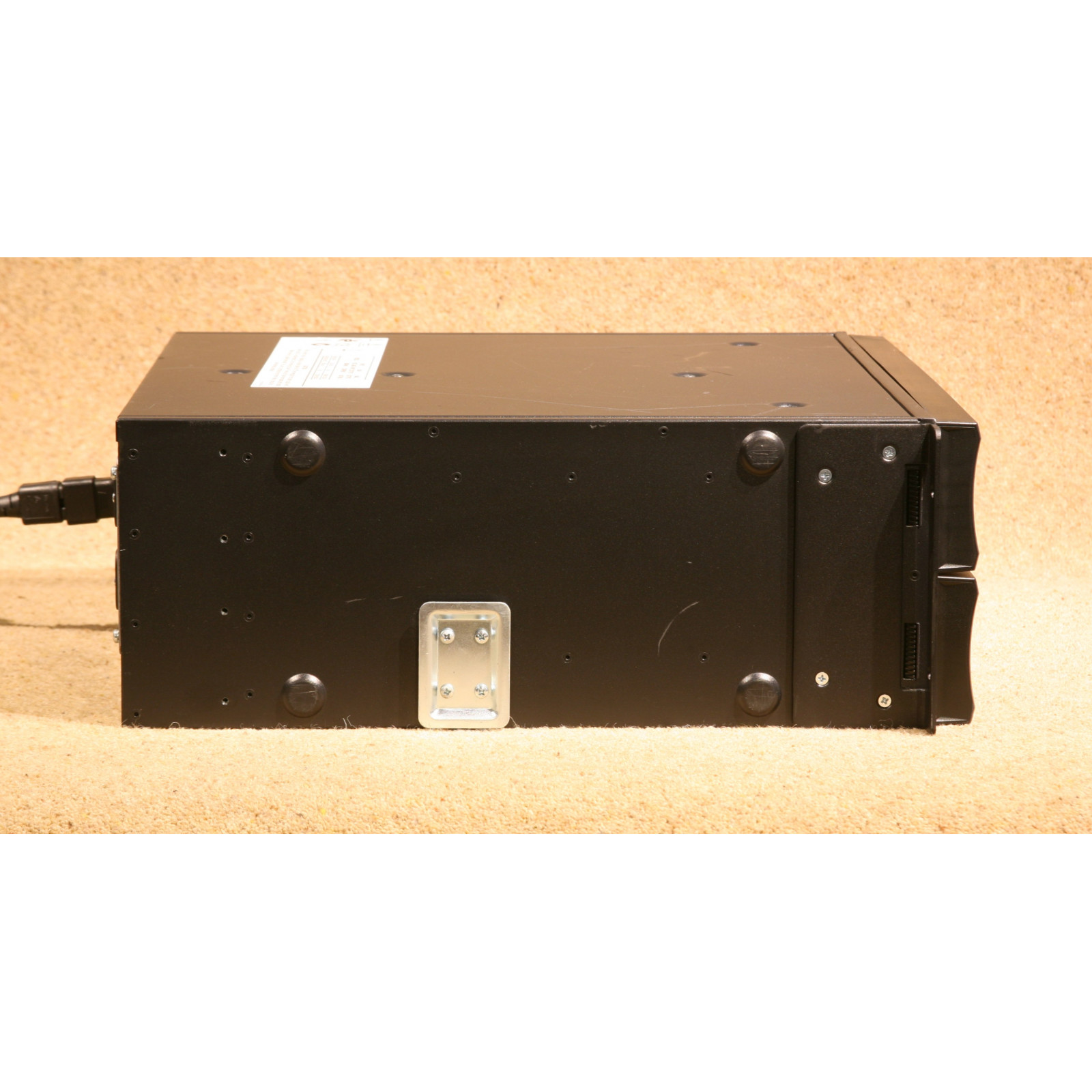

• Stablising feet for use in tower configuration

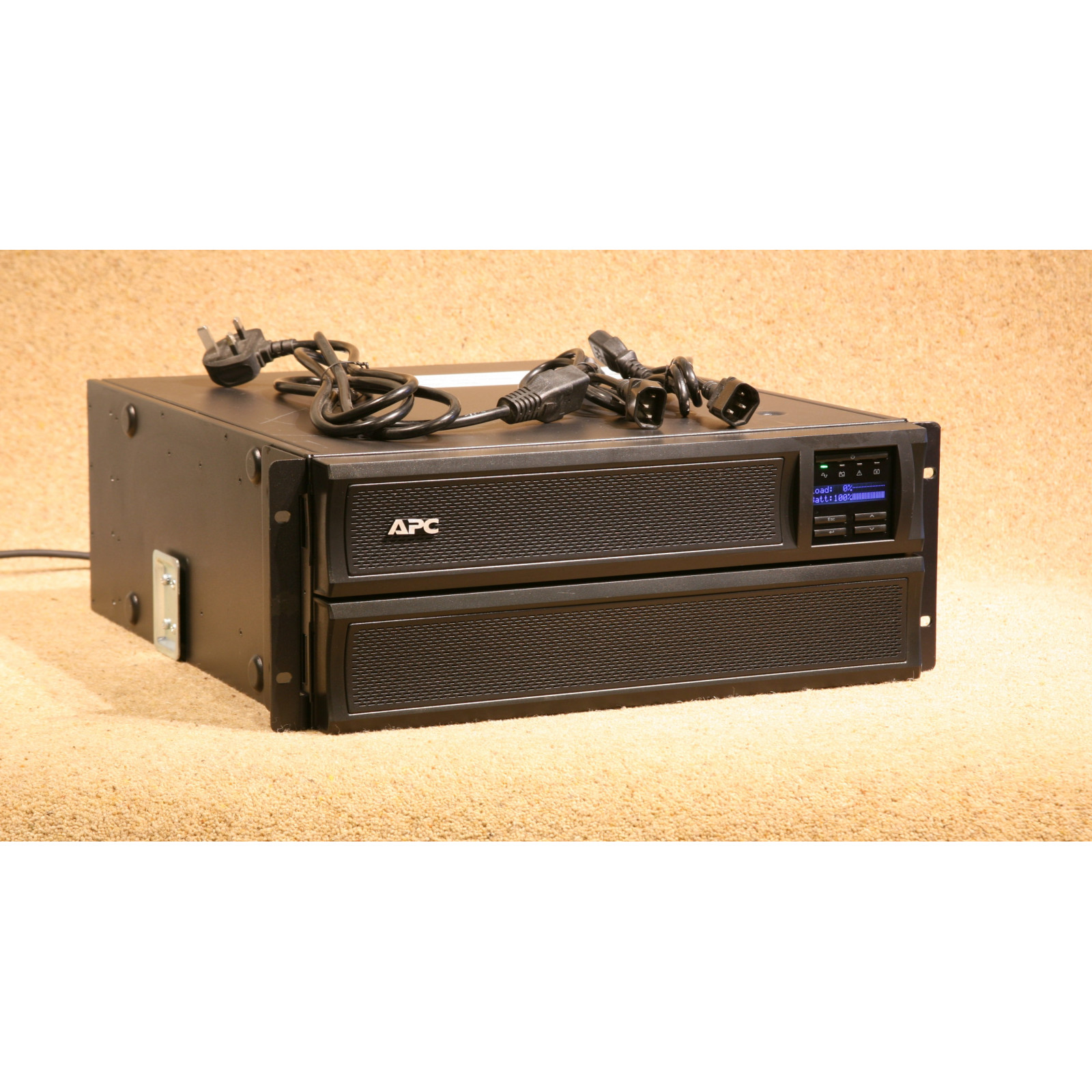

• Mains power input cable
• 2 x C13-14 output cables
• AP9630 networking card

How loud are these in use? See Here

Specifications

Manufacturer: American Power Conversion Corp
Manufacturer Part Number: SMX3000HV

Brand Name: APC
Product Line: Smart-UPS
Product Name: Smart-UPS X 3000VA Rack/Tower LCD 200-240V
Product Type: Line-interactive UPS

Technical Information:

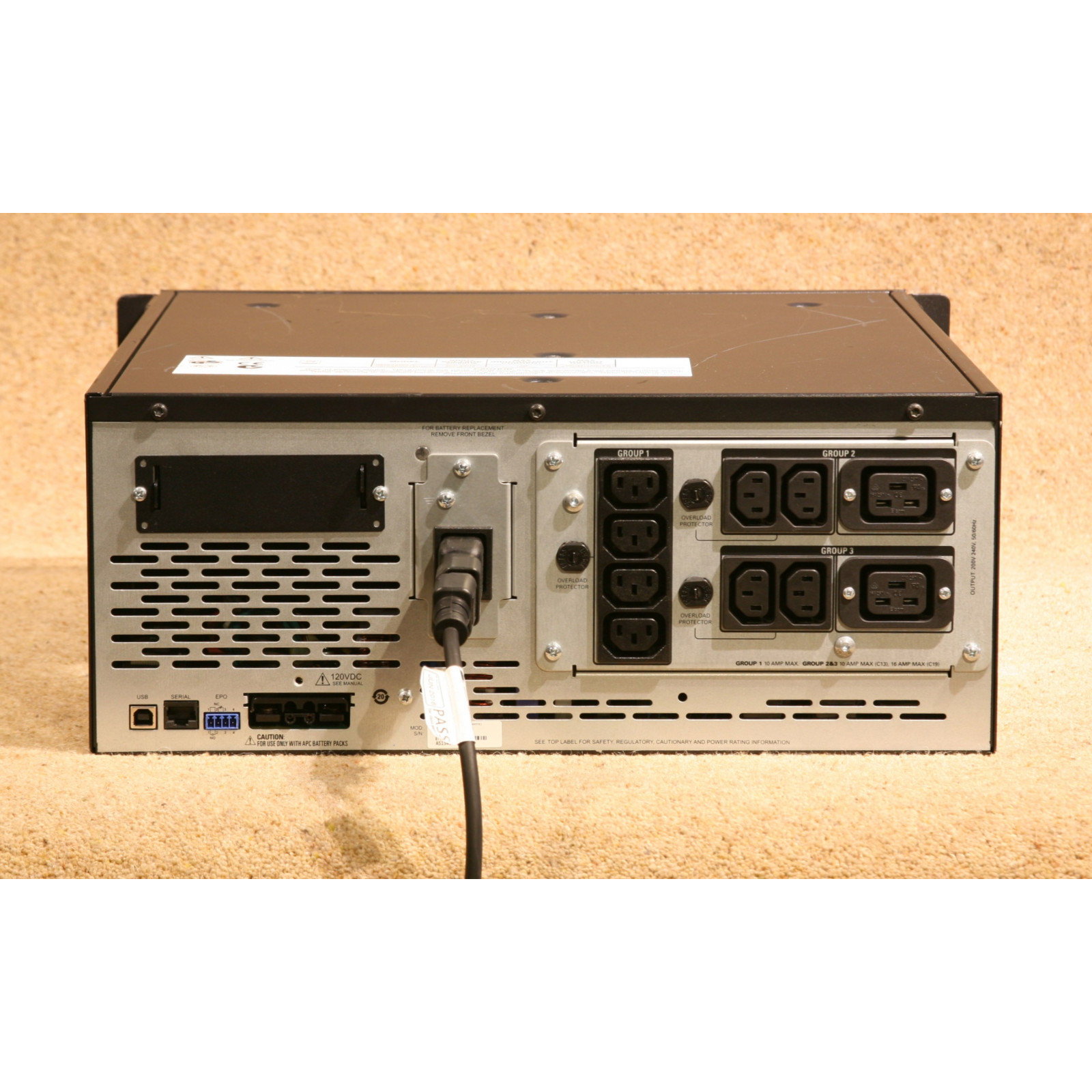

Plug/Connector Type: IEC 60320 C20
Receptacles: 8 x IEC 60320 C13
Receptacles: 3 x IEC 60320 C19
Receptacles: 2 x IEC Jumper
Emergency Power OFF: Yes

Power Description:

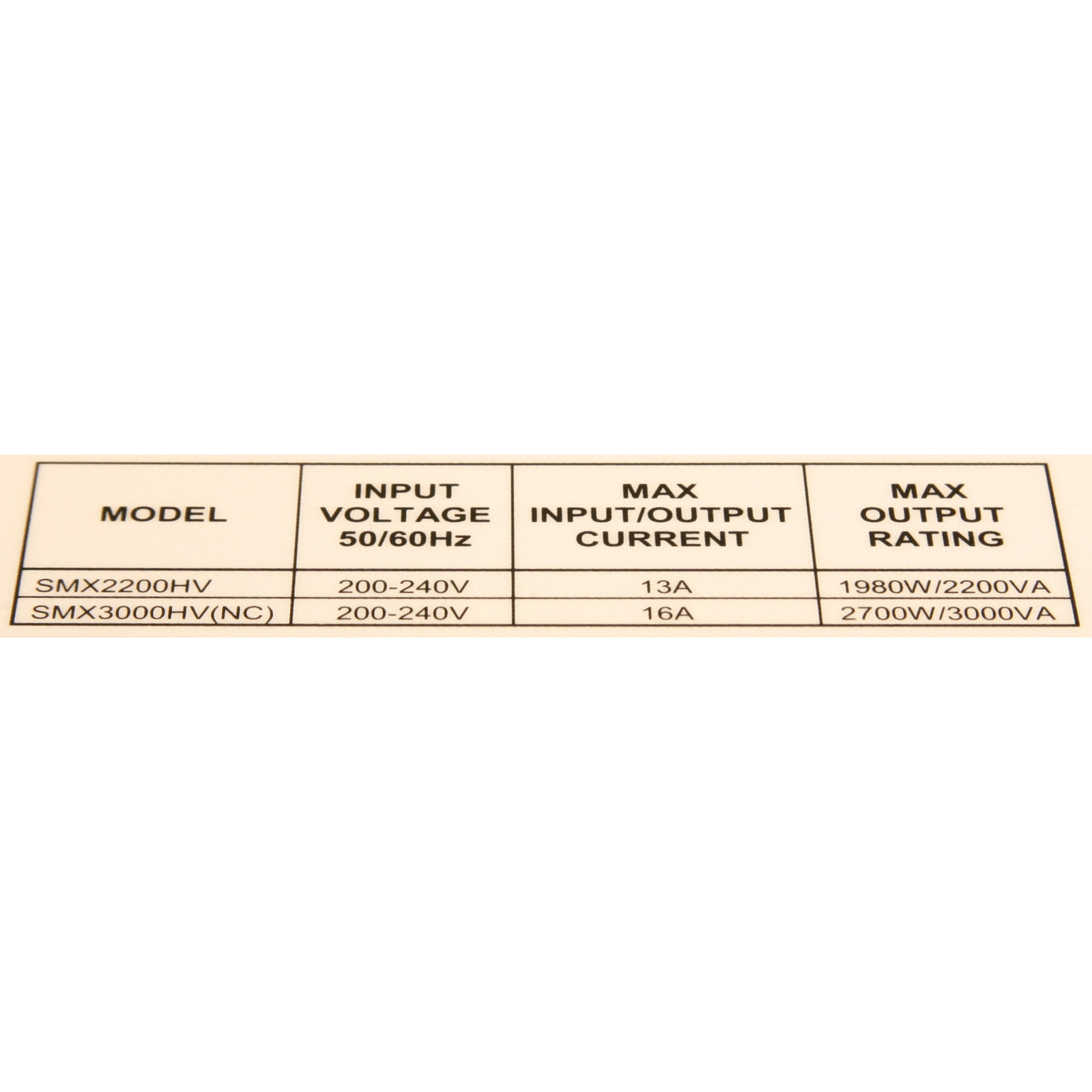

Load Capacity (VA): 3000 VA
Load Capacity (Watts): 2700 W
Input Voltage: 208 V AC
Input Voltage: 230 V AC
Output Voltage: 230 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 645 J

Management:
Alarm Low Battery
Alarm On Battery
Alarm Configurable Delay
Interfaces/Ports
Serial Port Yes
USB: Yes
Total Number of Expansion Slots: 1
Battery Information
Battery Characteristics Spill-proof, Maintenance-free
Battery Chemistry Sealed Lead Acid
Hot Swappable Yes
Physical Characteristics
Colour Black
Height 432 mm
Width 178 mm
Depth 483 mm
Rack Height 4U
Form Factor Tower/Rack Mountable
Weight (Approximate) 38.64 kg
