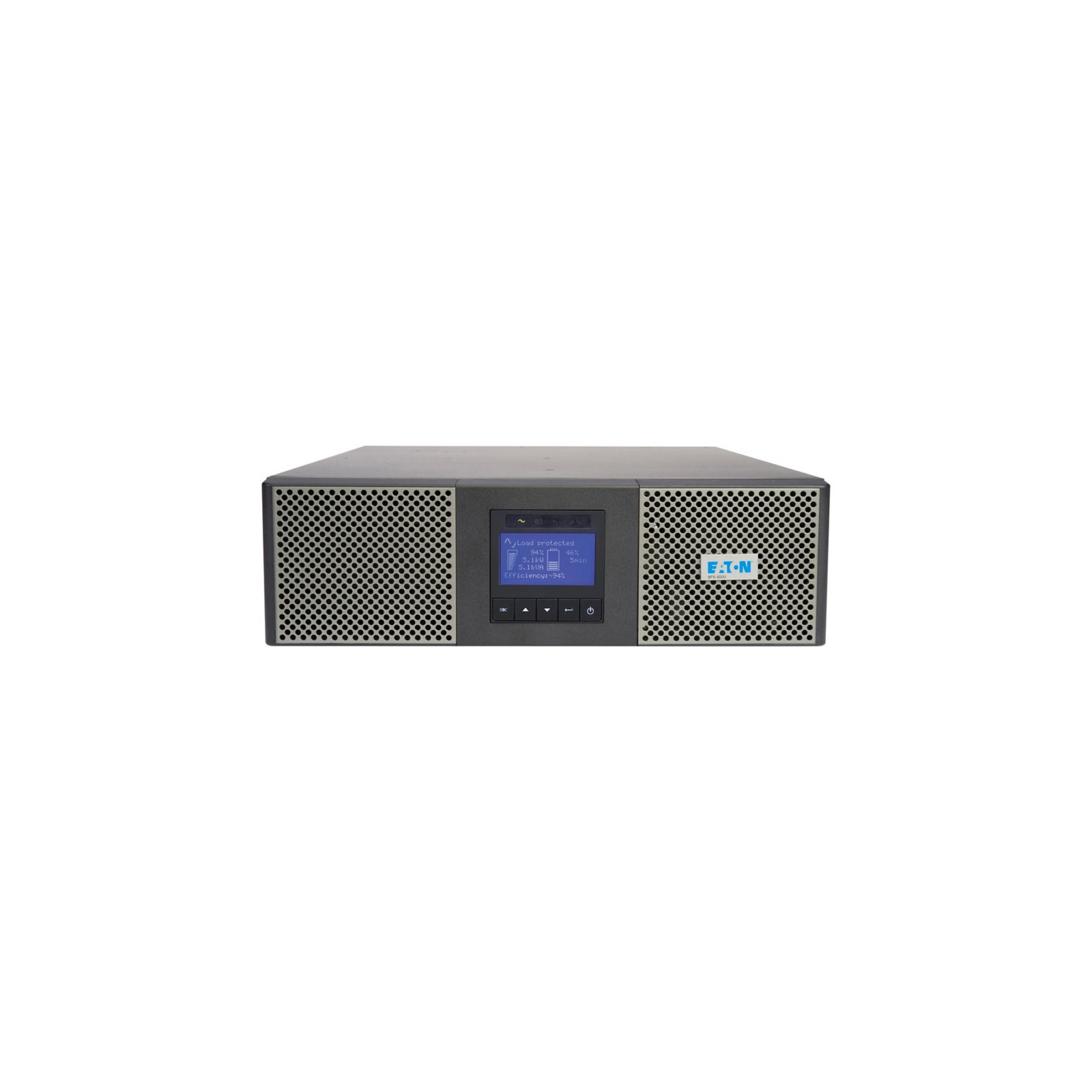

Eaton 9PX6000i Rack/ Tower UPS

This unit can be rack-mounted or installed as a tower. The informative LCD control panel can be rotated through 90 degrees to suit either application. The UPS is an online design, which makes it suited to powering and protecting delicate electronic equipment.

Rack-mounting rails and ears are included with the UPS.

Please note that a network card is NOT included but can be purchased separately here:

https://secure.ups-trader.co.uk/home/224-network-ms.html?search_query=network+MS&results=56

This card enables monitoring and integration to a large number of hosts / VM hosts, VMWare, EMC, Netapp, Citrix, and RedHat and Microsoft to name a few. The configuration of this is down to you, but the functionality is there.

http://powerquality.eaton.com/9PX6KUS.aspx?cx=212&GUID=B7645E34-7316-4CB1-A9E7-76F7659081B8

Max Output power 5400 W / 6000VA

Input operation voltage range 100 V - 276V
Power supply input frequency 40/70
Maximum current 90 A

Input current THD 5%
Crest factor 3:1

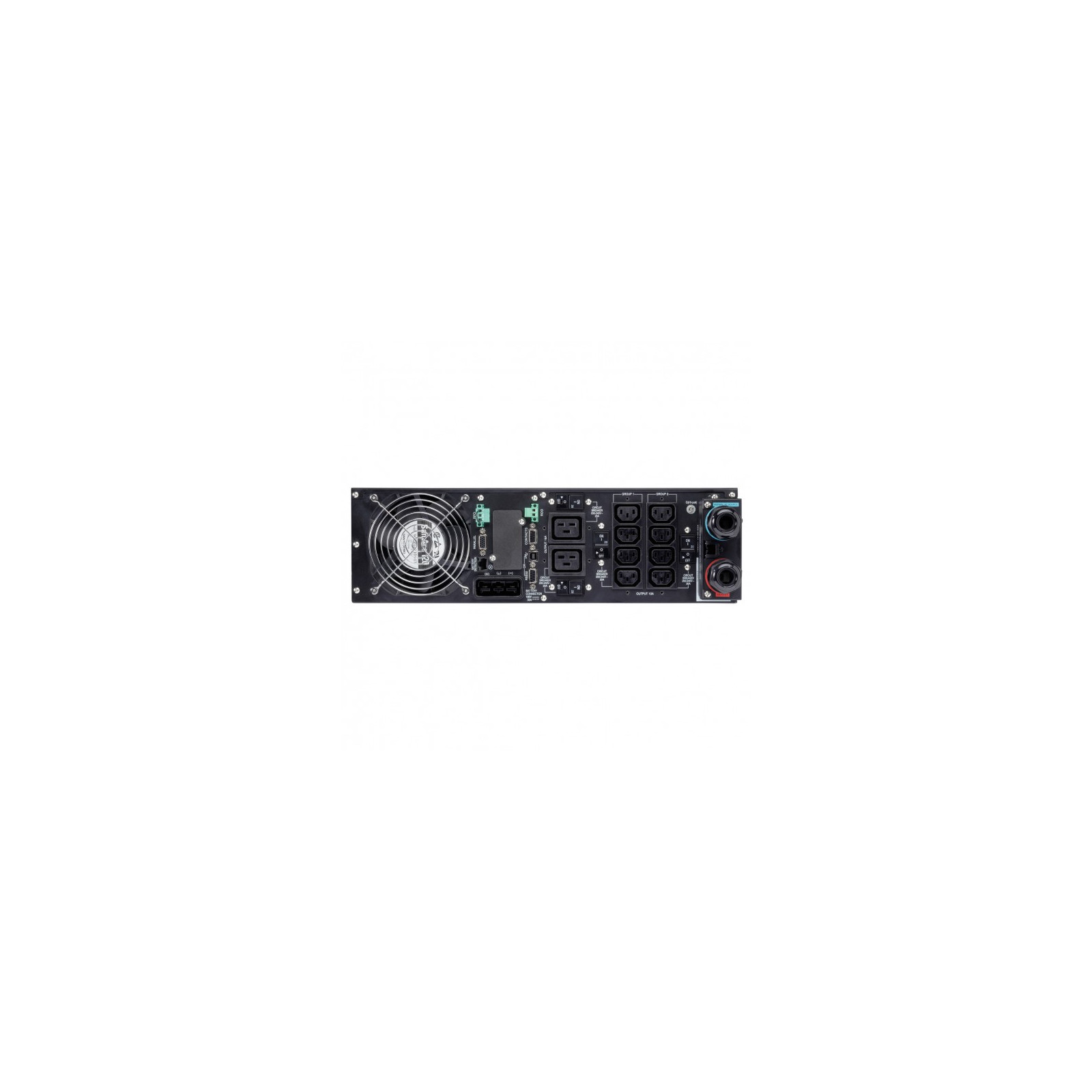

AC outlets quantity 5 AC outlet(s)
AC outlet types C13 coupler, C19 coupler, Terminal
Power plug Terminal
USB 2.0 ports quantity 1
RS-232 ports 1

Form factor Rackmount/Tower
Colour of product Black
Display LCD

Noise level 45 dB (variable speed fan)

Operating temperature (T-T) 0 - 40 °C

Safety IEC/EN 62040-1, UL 1778, CSA 22.2
Certification IEC/EN 62040 -2 , FCC A, IEC/EN 62040-3


Weight 48 kg
Width 130 mm
Height 440 mm
Depth 685 mm

Interface USB, RS232
