> >Tripp Lite 5KVA XL - 48V DC

Tripp Lite 5KVA XL - 48V DC

New Reduced price! Tripp Lite 5KVA XL - 48V DC View larger
Previous Next

Tripp Lite SMX5000XLRT3U-IPWired

Used

5000VA Heavy duty - pure sine wave line interactive UPS

48V DC system (easy to extend runtime by adding external battery packs)

New cells installed.

Can be cold started.

We will wire on an IEC309-32A (commando type) input plug

12 months RTB

More details

Warning: Last items in stock!

£ 390.00 tax incl.

-£ 60.00

£ 450.00 tax incl.

5000VA line interactive UPS system for server, network and telecommunications equipment. 5kVA UPS
with internal batteries installs in only 3 rack spaces with a depth of only 635mm / 25 inches. High 98%
line-power efficiency rating reduces energy consumption and BTU heat output. Expandable battery
runtime with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US
(multi-pack compatible) external battery packs. Uninterruptible Power Supply (UPS) switches to batteryderived
AC output during power failures and extreme voltage variations.

Line interactive Automatic Voltage Regulation (AVR) offers voltage boost during brownouts and voltage reduction during overvoltage
conditions to maintain regulated 230v output over an input range of 170-282V.

Supports hardwire input.


Includes C19 and C13 output receptacles. Network-grade AC surge and noise suppression.

Emergency Power Off (EPO) interface. 3-stage metered current monitoring and battery
charge status LEDs.

Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rackmount
installation accessories included; 2-9USTAND tower kit and 2POSTRMKITHD two post rack mounting
accessories available. Field-replaceable, hot-swappable internal batteries and external battery packs.

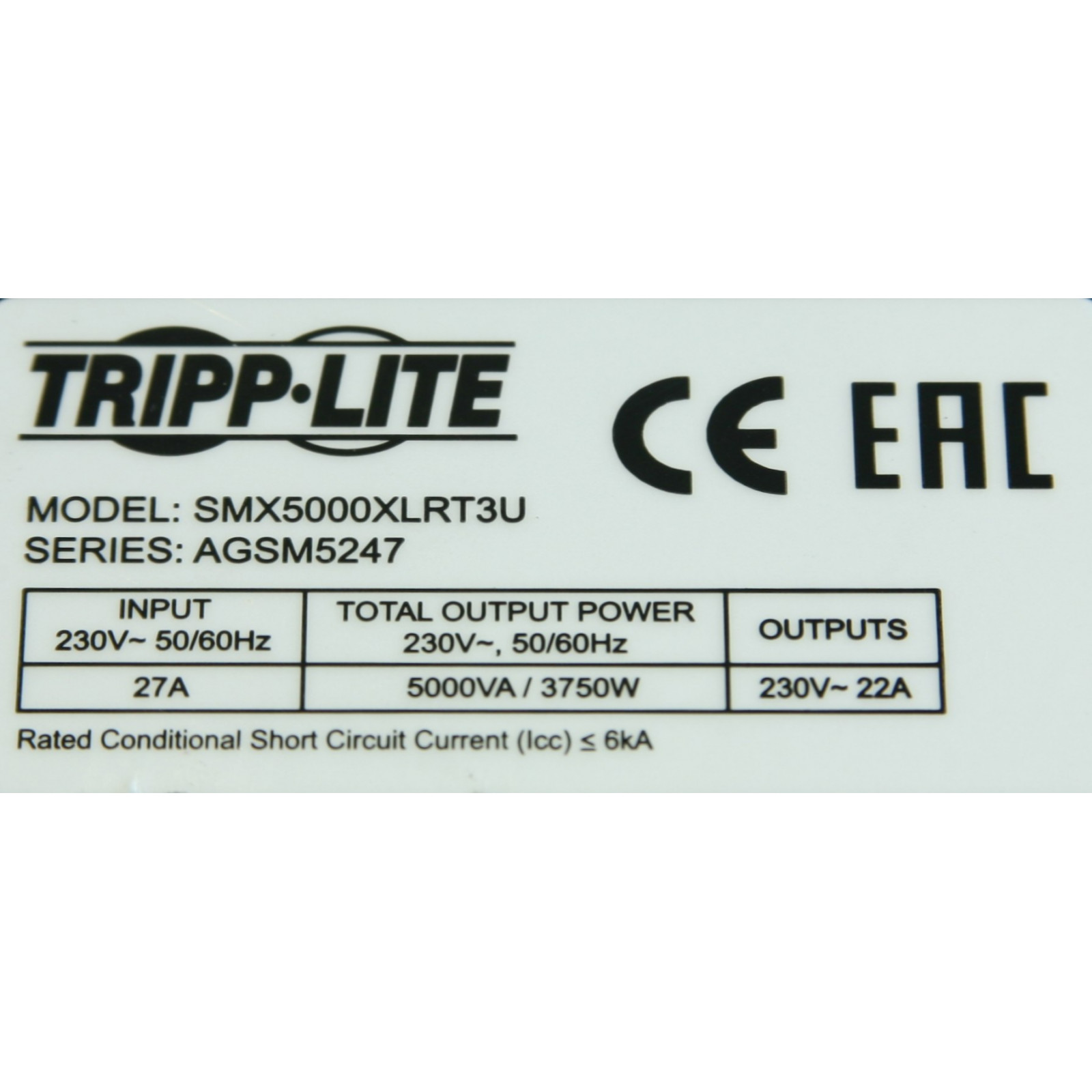

Max Output: 5000 VA - 3750 watts
Input voltage 220/230/240 VAC Nominal
Acceptable input voltage window - 170 - 282 VAC
Frequency 50/60Hz

Design: Line interactive
Transfer time 7ms max 1ms min typical
Automatic voltage regulation
Surge suppression rating 480 Joules
Efficiency 98% AC MODE


Cold start supported.

Recharge time for internal cells 4hrs 10% to 90% capacity

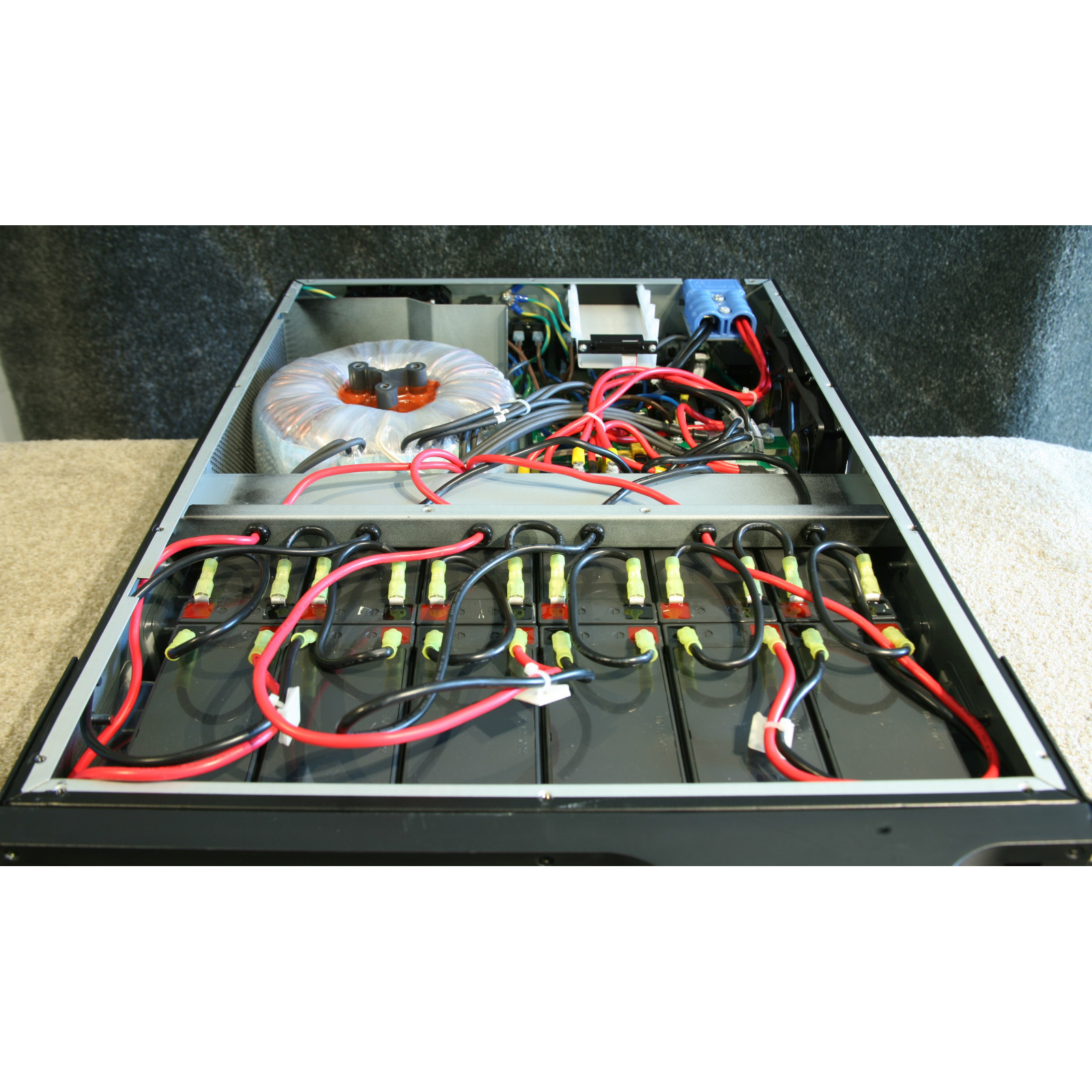

Internal cell compliment 12x RT1270 12v 7AH

Hardwired input AC connection

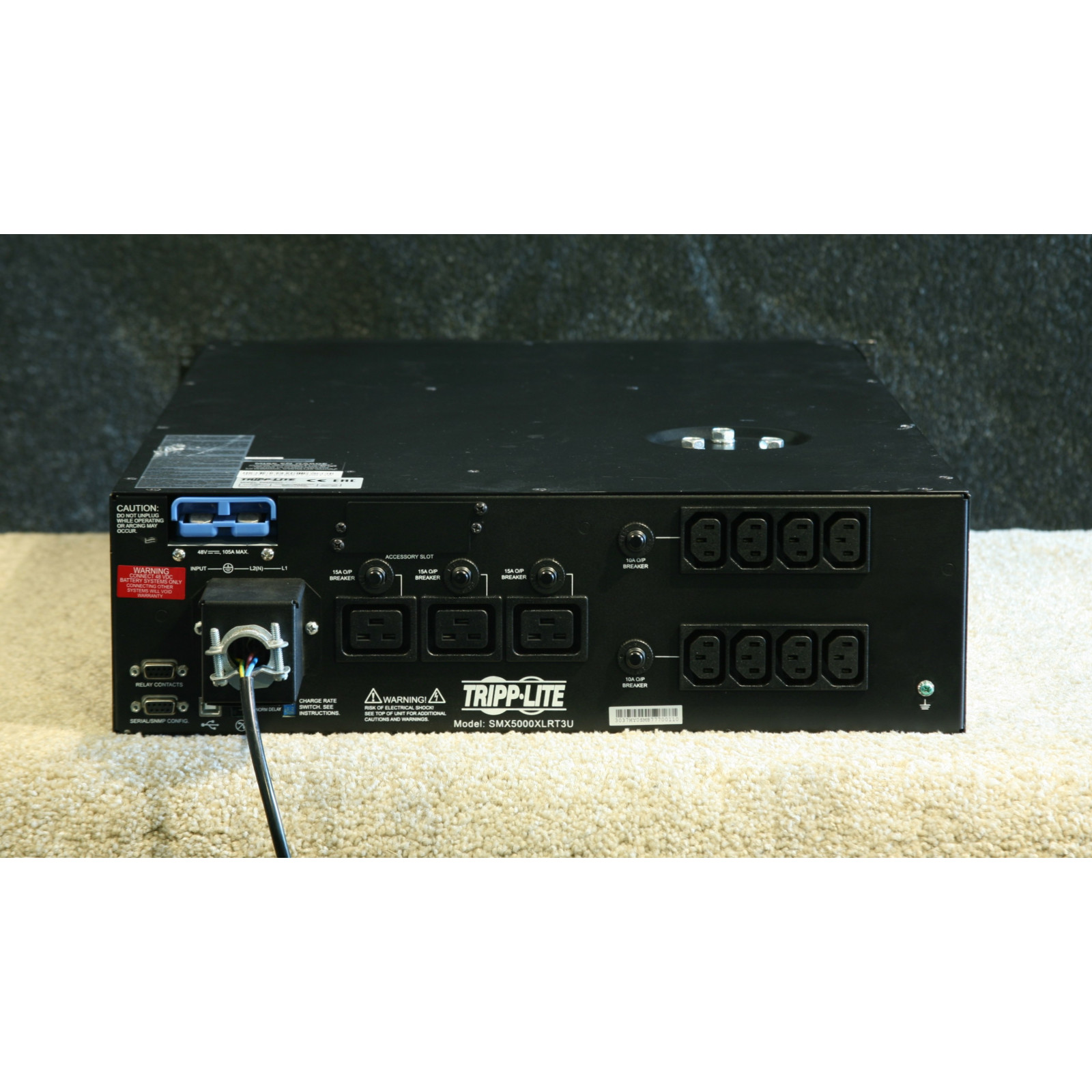

Outputs
3x C19
8x C13

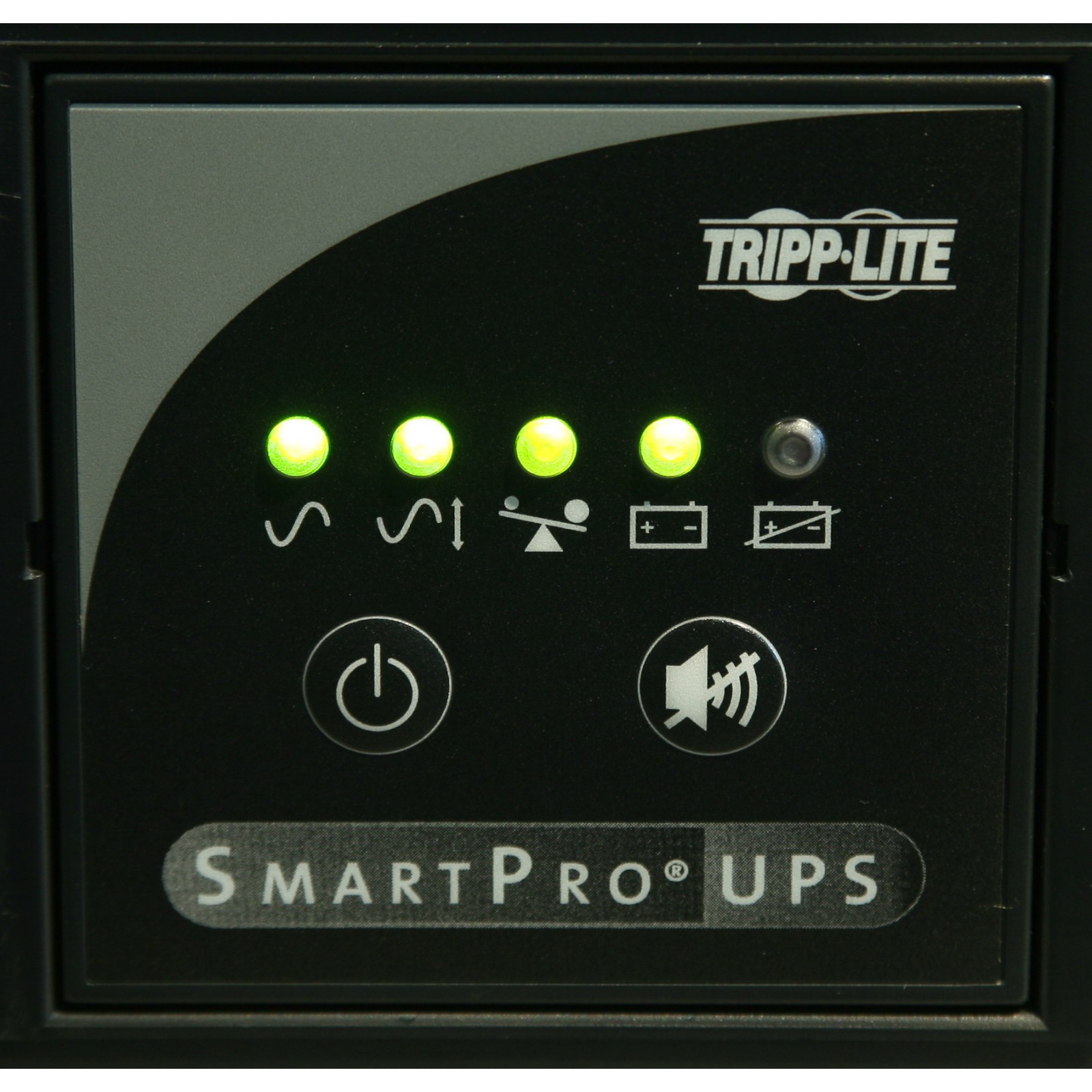

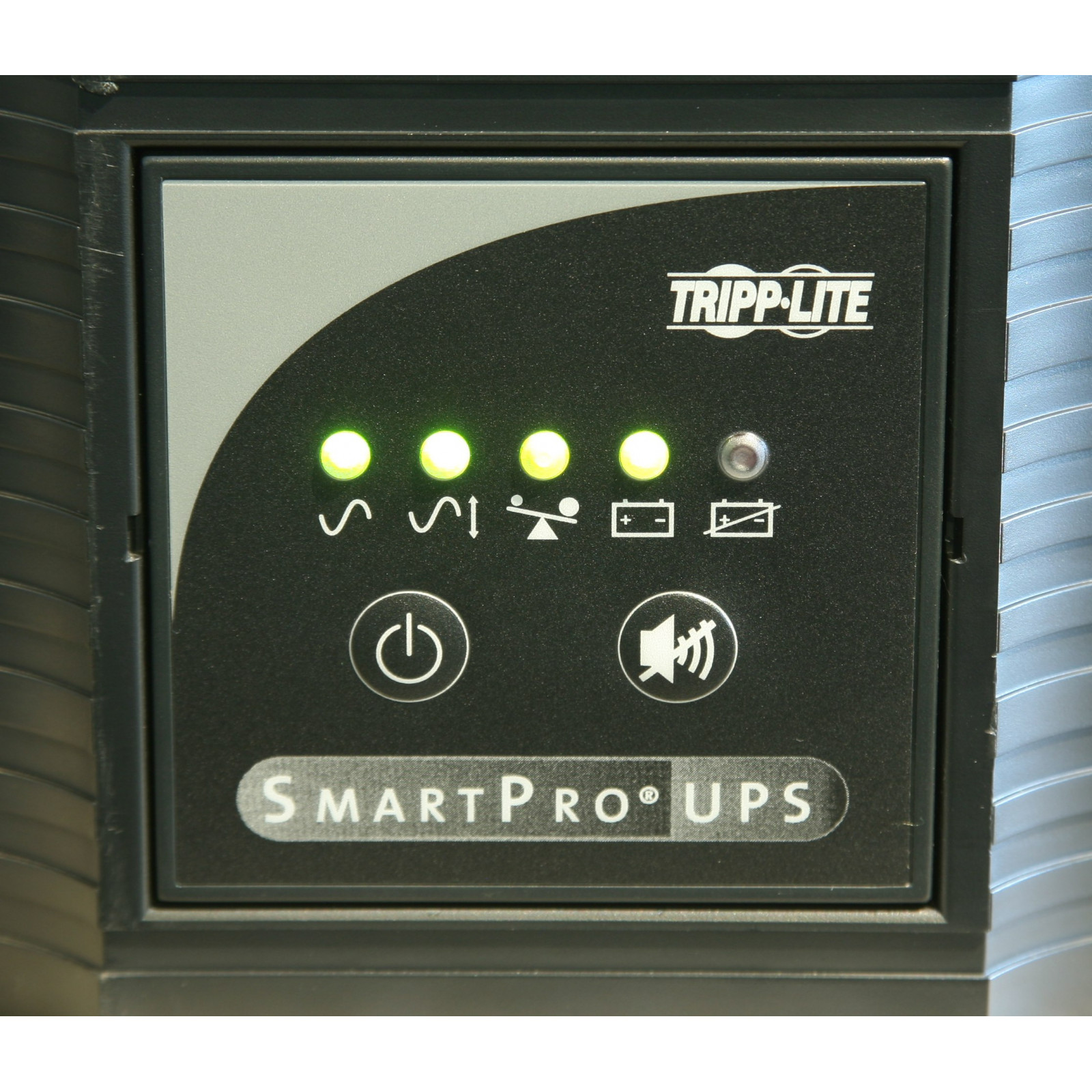

3 stage metered LEDs offer current monitoring and battery charge level
Mains power and voltage regulation LEDs offer at-a-glance power status information
Front panel switches support self-test and alarm cancel functions

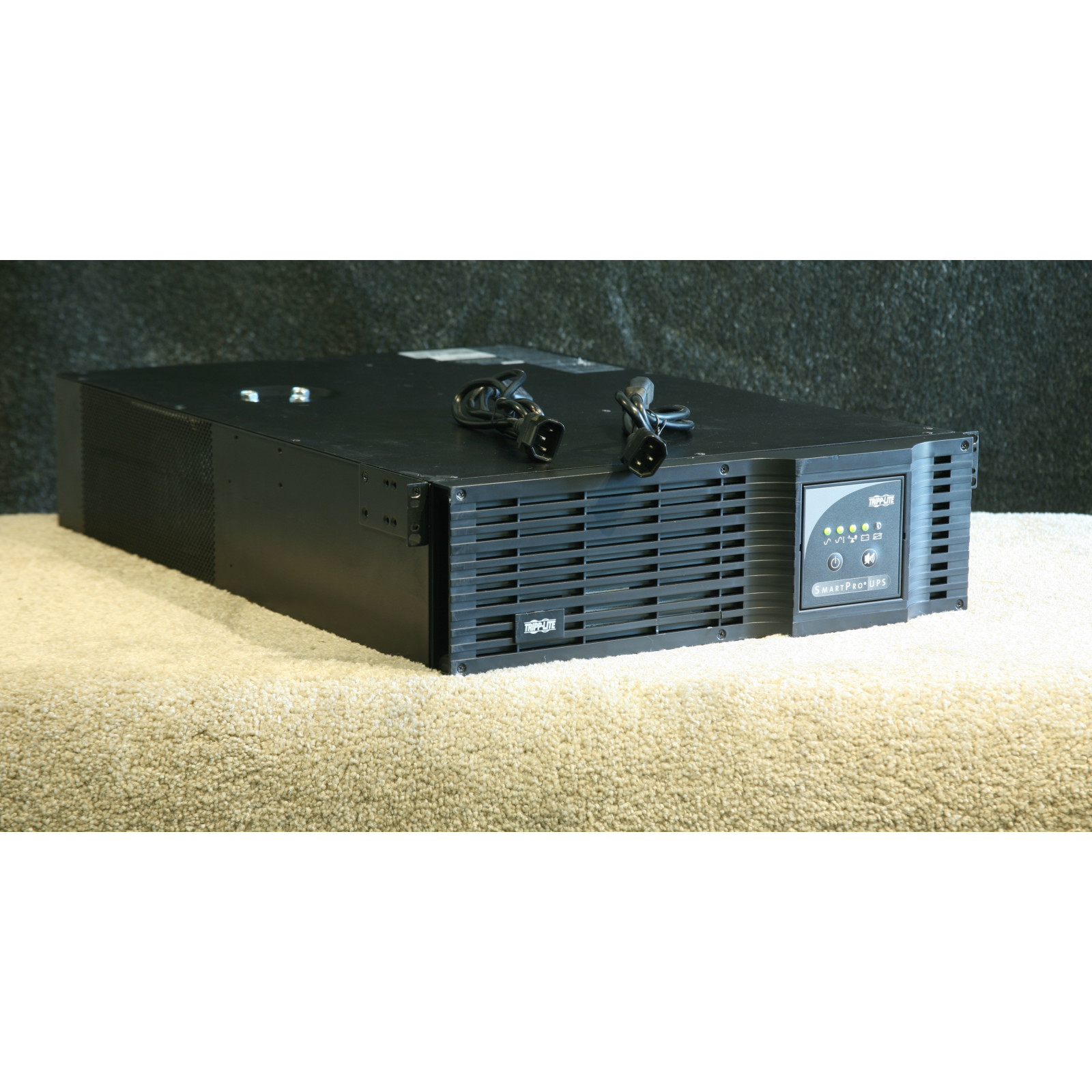

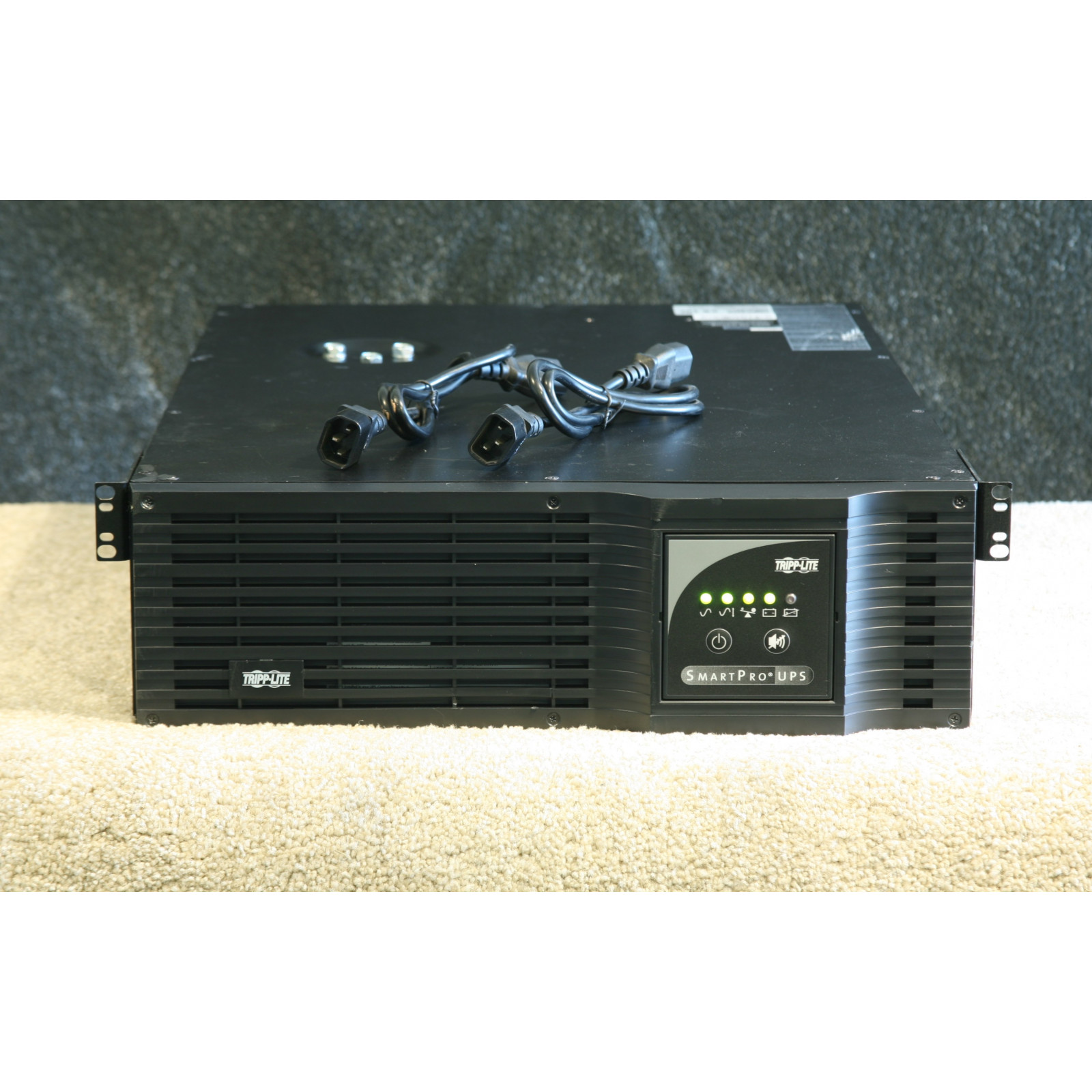

3U rack/tower UPS
Height 13.21
Width 44.45
Depth 63.50
Noise at 1m 45 dB A weighted @ 1M

Weight: 75 kg

  • Topology On-line / Double conversion

No customer reviews for the moment.

Write a review

Tripp Lite 5KVA XL - 48V DC

Tripp Lite 5KVA XL - 48V DC

5000VA Heavy duty - pure sine wave line interactive UPS

48V DC system (easy to extend runtime by adding external battery packs)

New cells installed.

Can be cold started.

We will wire on an IEC309-32A (commando type) input plug

12 months RTB
