EATON 5PX3000IRT3UG2 Rack/Tower UPS

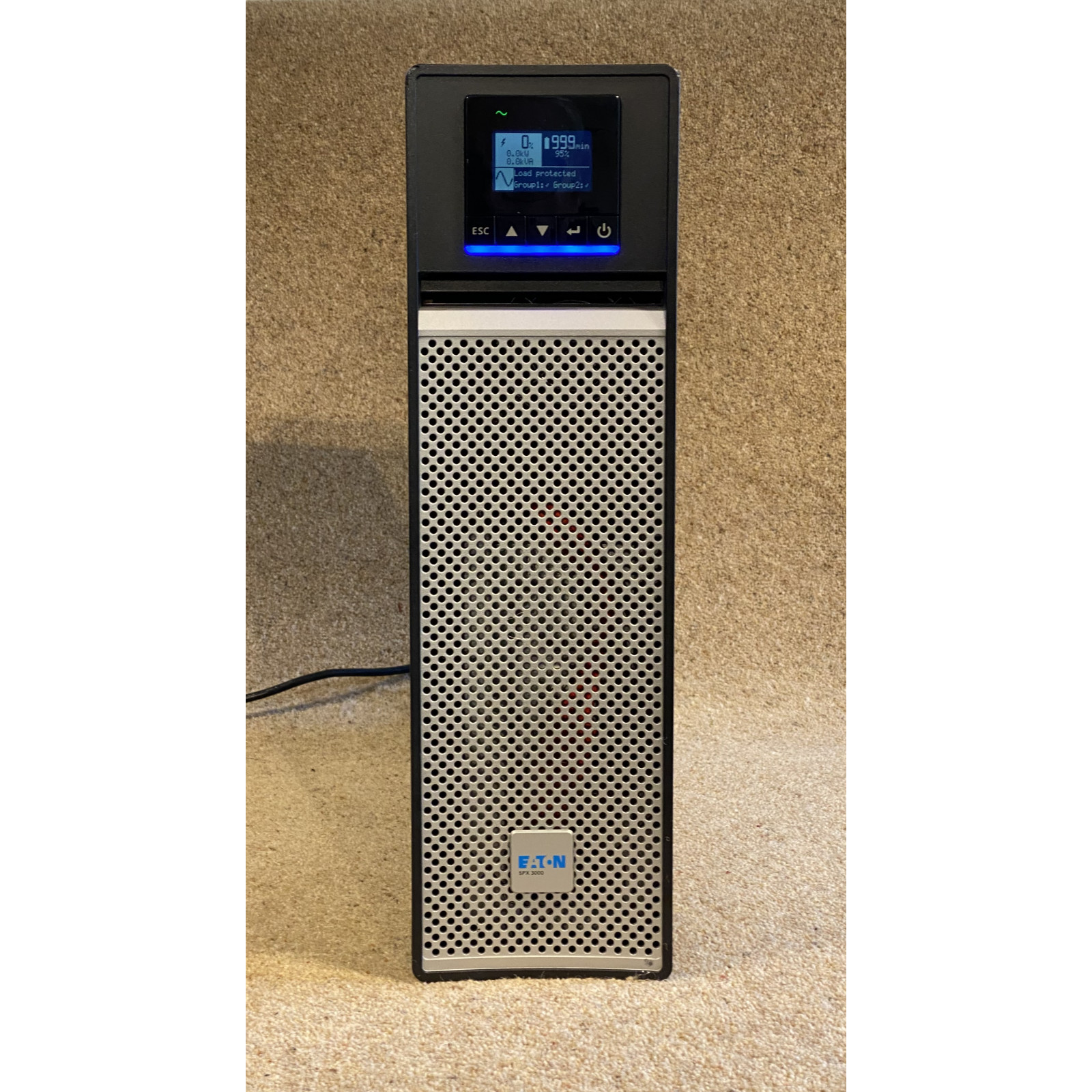

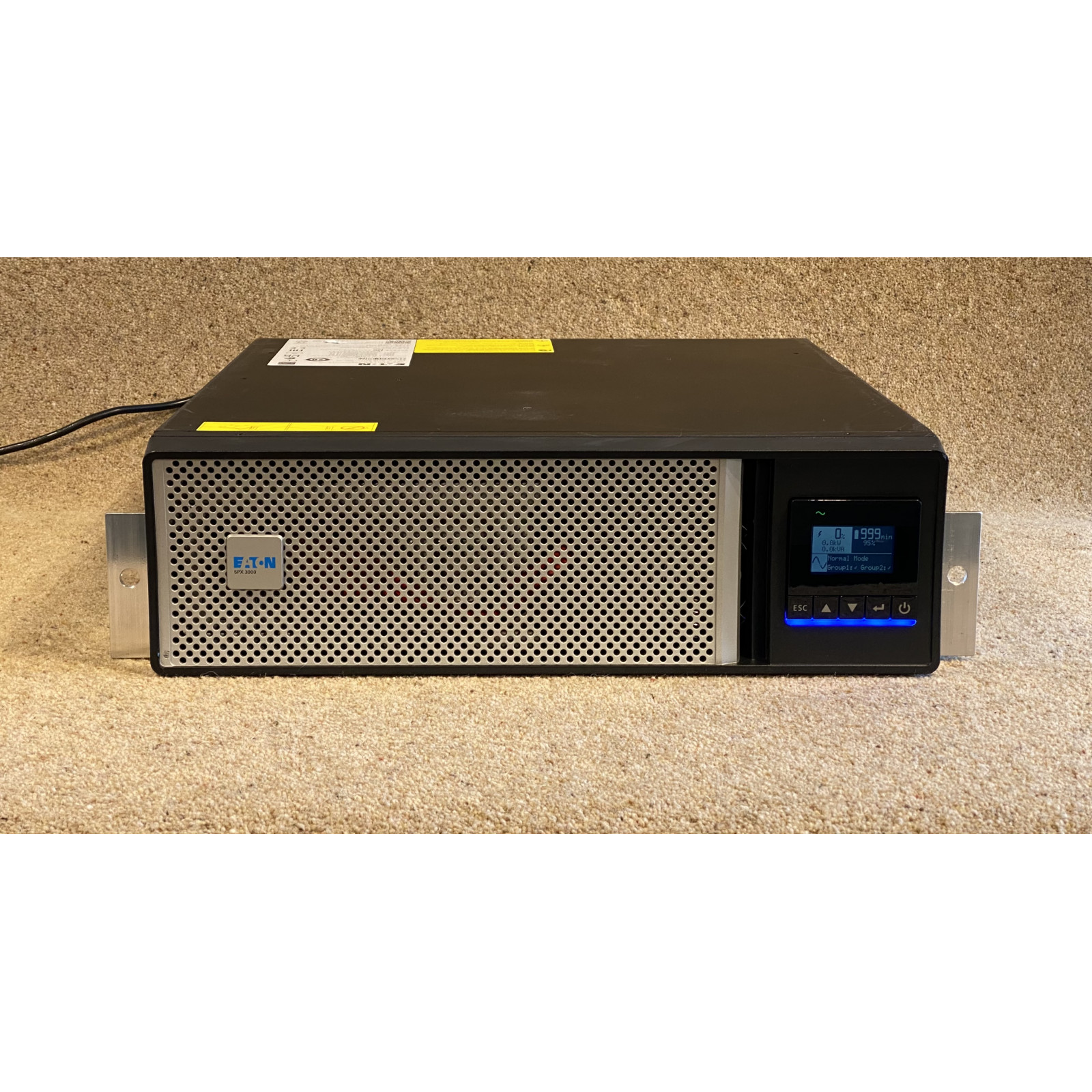

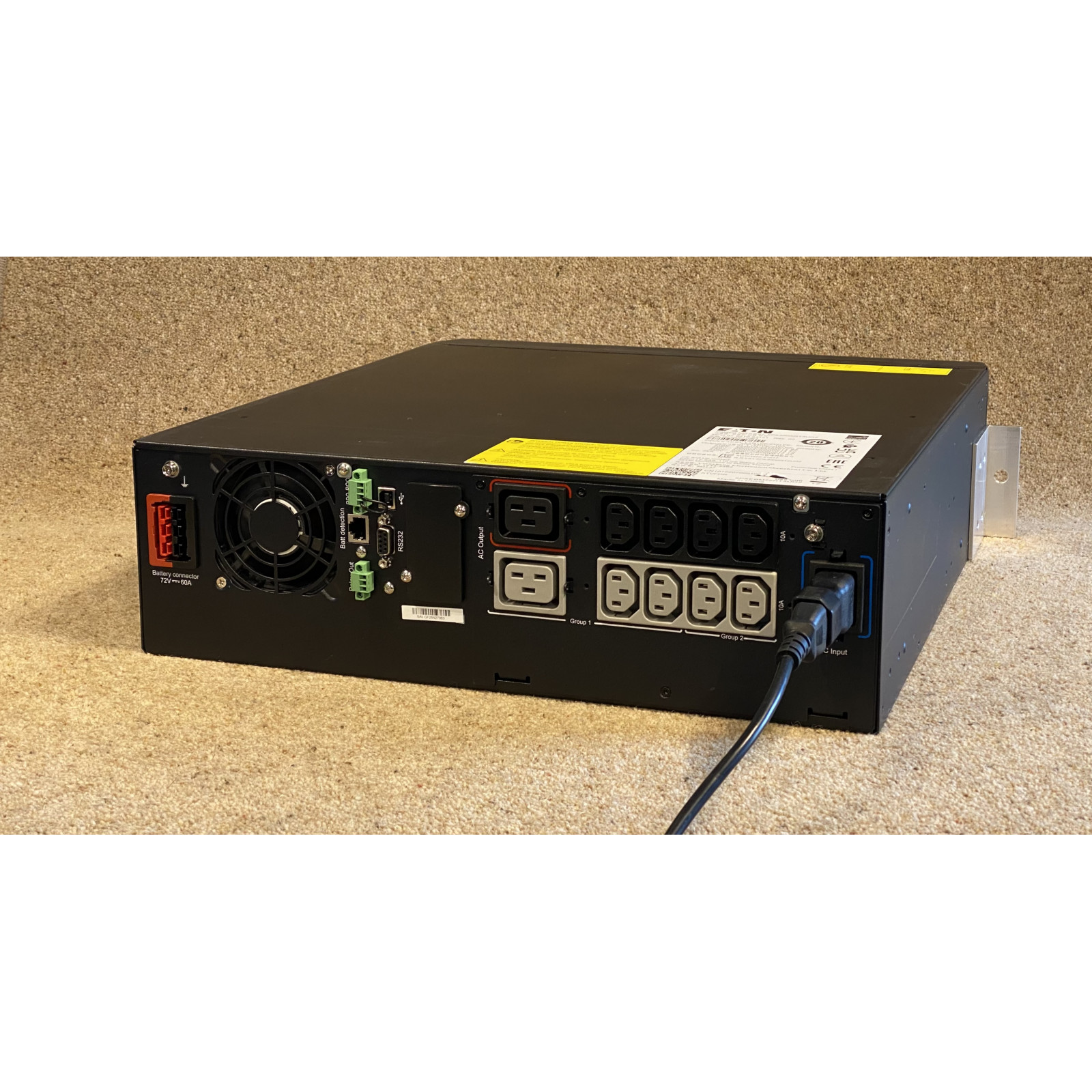

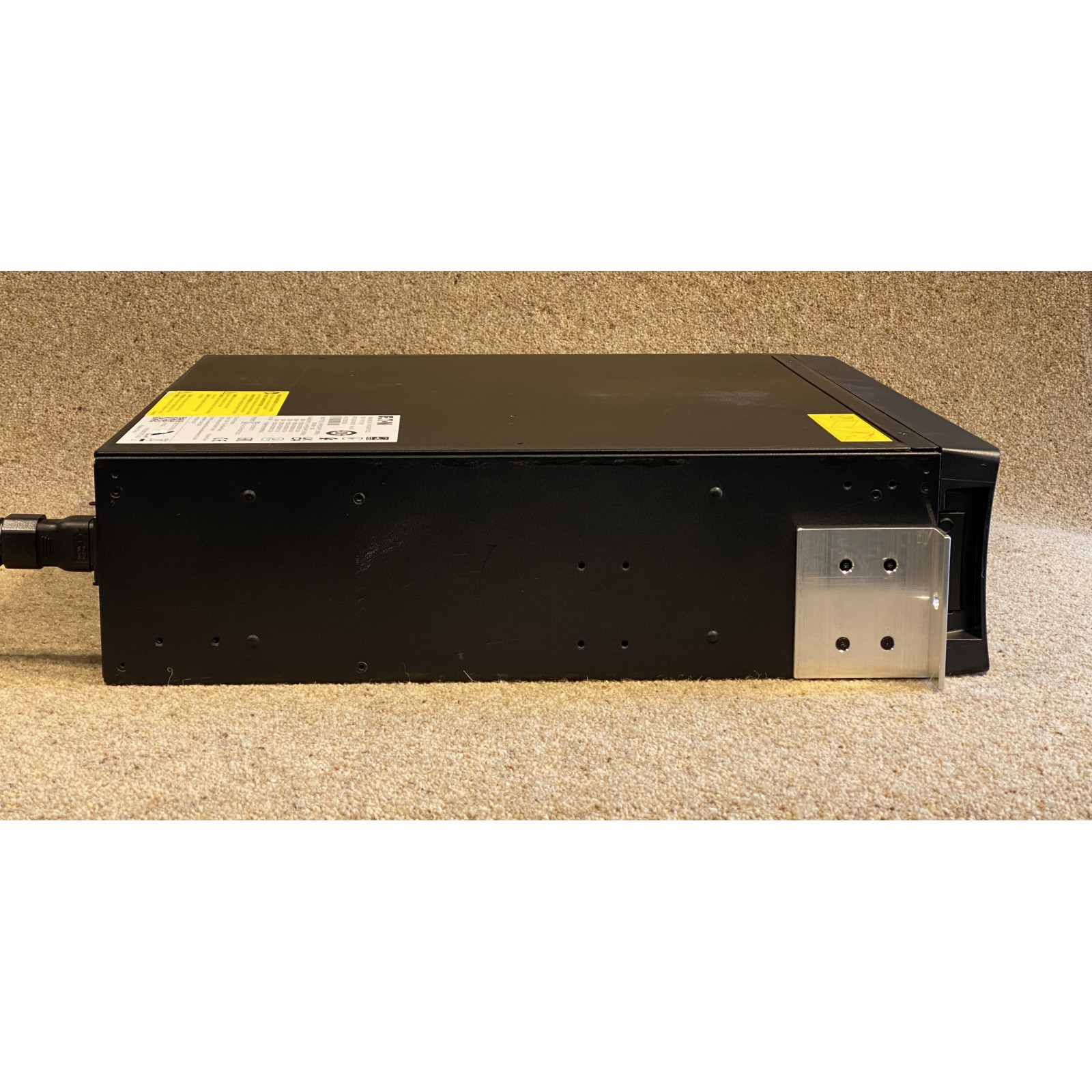

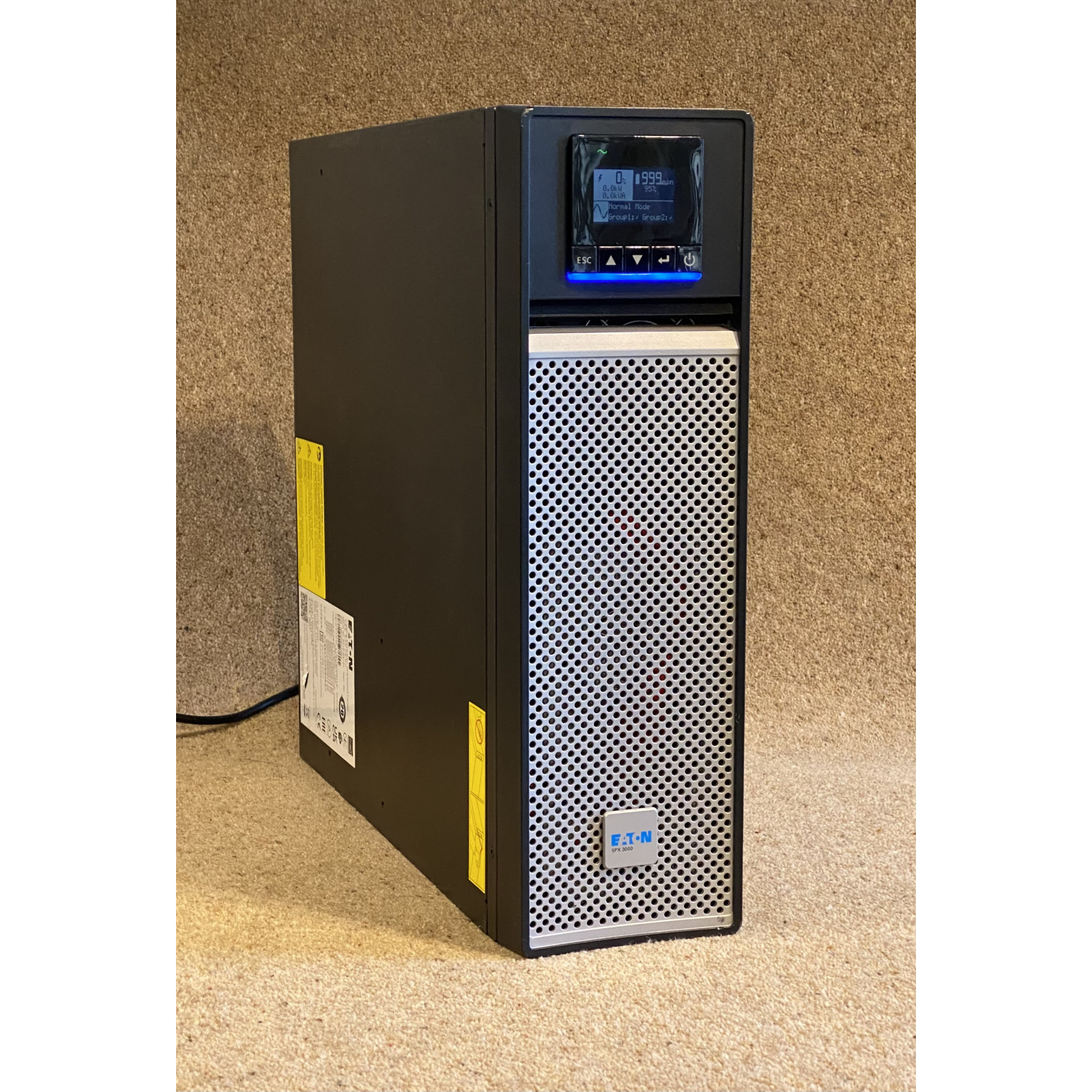

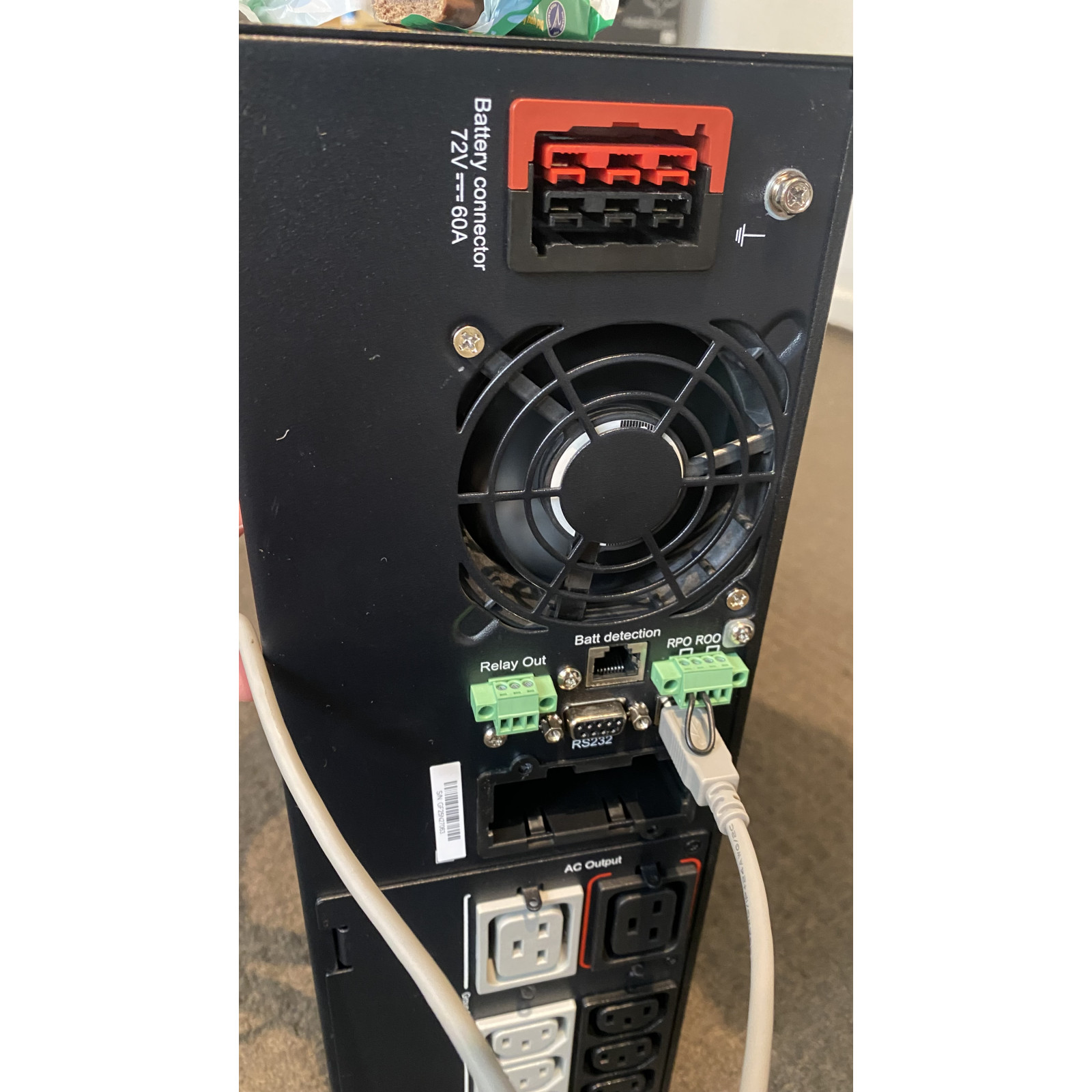

This UPS can be rack-mounted or installed as a tower. The informative LCD control panel can be rotated through 90 degrees to facilitate this. As can be seen in the photos, we provide in-house-manufactured aluminium rack-mounting ears.

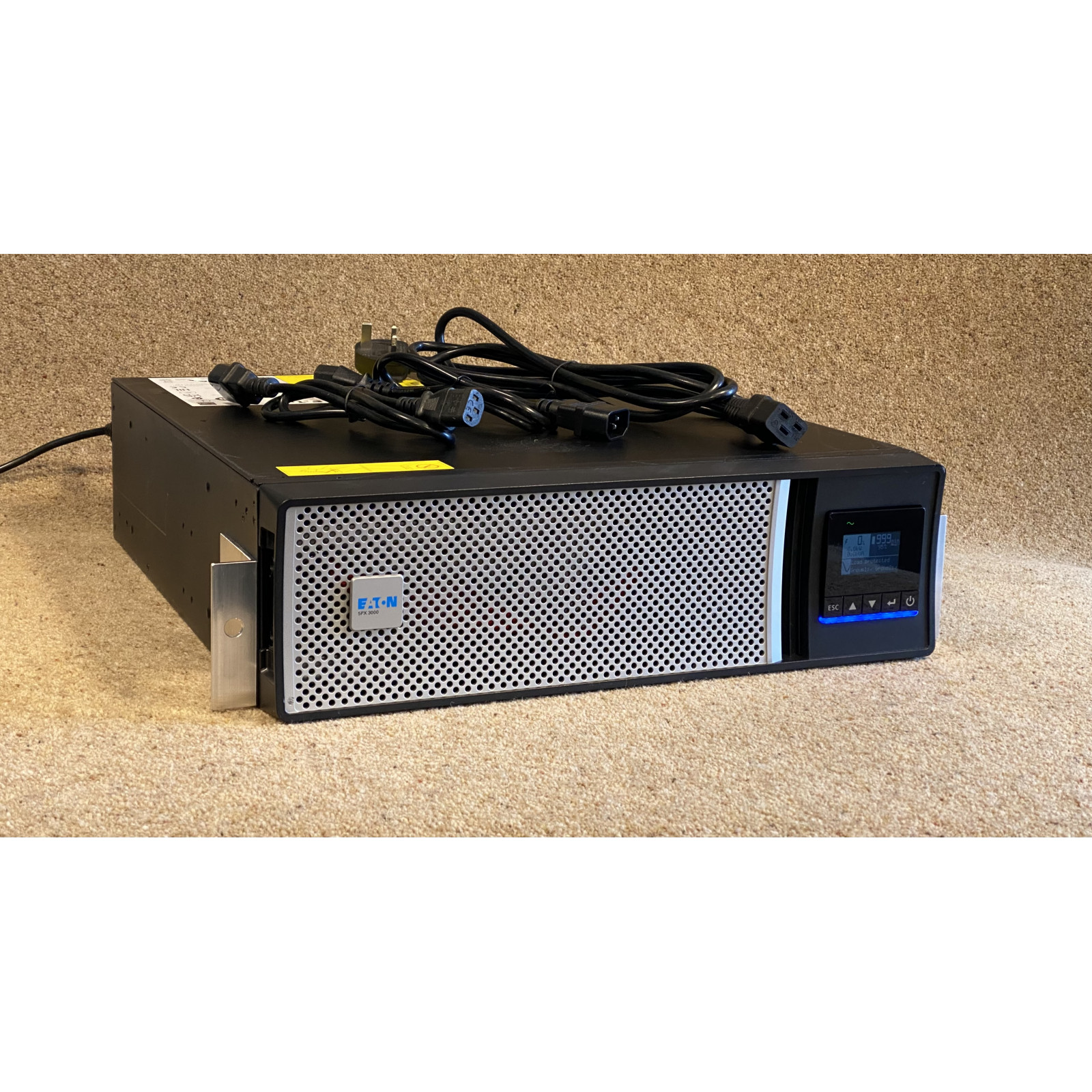

Also included are 1x UK mains input lead and 2x C13-14 output leads.

Specifications

GENERAL SPECIFICATIONS
Product Name: Eaton 5PX Gen2 UPS

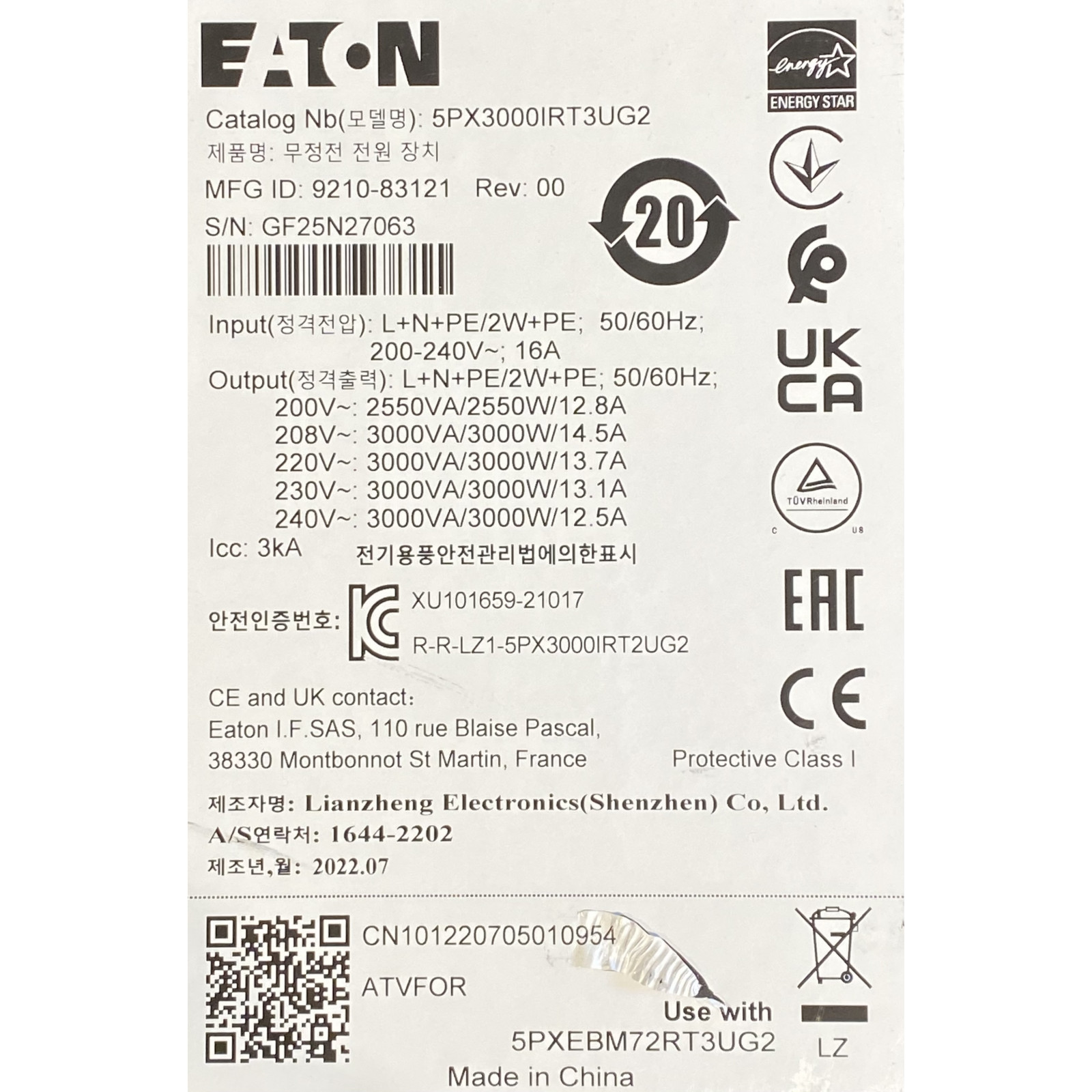

Catalog Number: 5PX3000IRT3UG2
Model Code: Eaton 5PX 3000i RT3U G2
UPC: 743172104892
Product Length/Depth: 483 mm
Product Height: 129 mm
Product Width: 438 mm
Product Weight: 31.1 kg

BATTERY
Battery type: Lead-acid maintenance-free (replaceable)
User replaceable
Battery quantity: 6
Battery management: ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Battery rating: 12 V / 9 Ah
Extended battery capability: Yes

ELECTRICAL OUTPUT

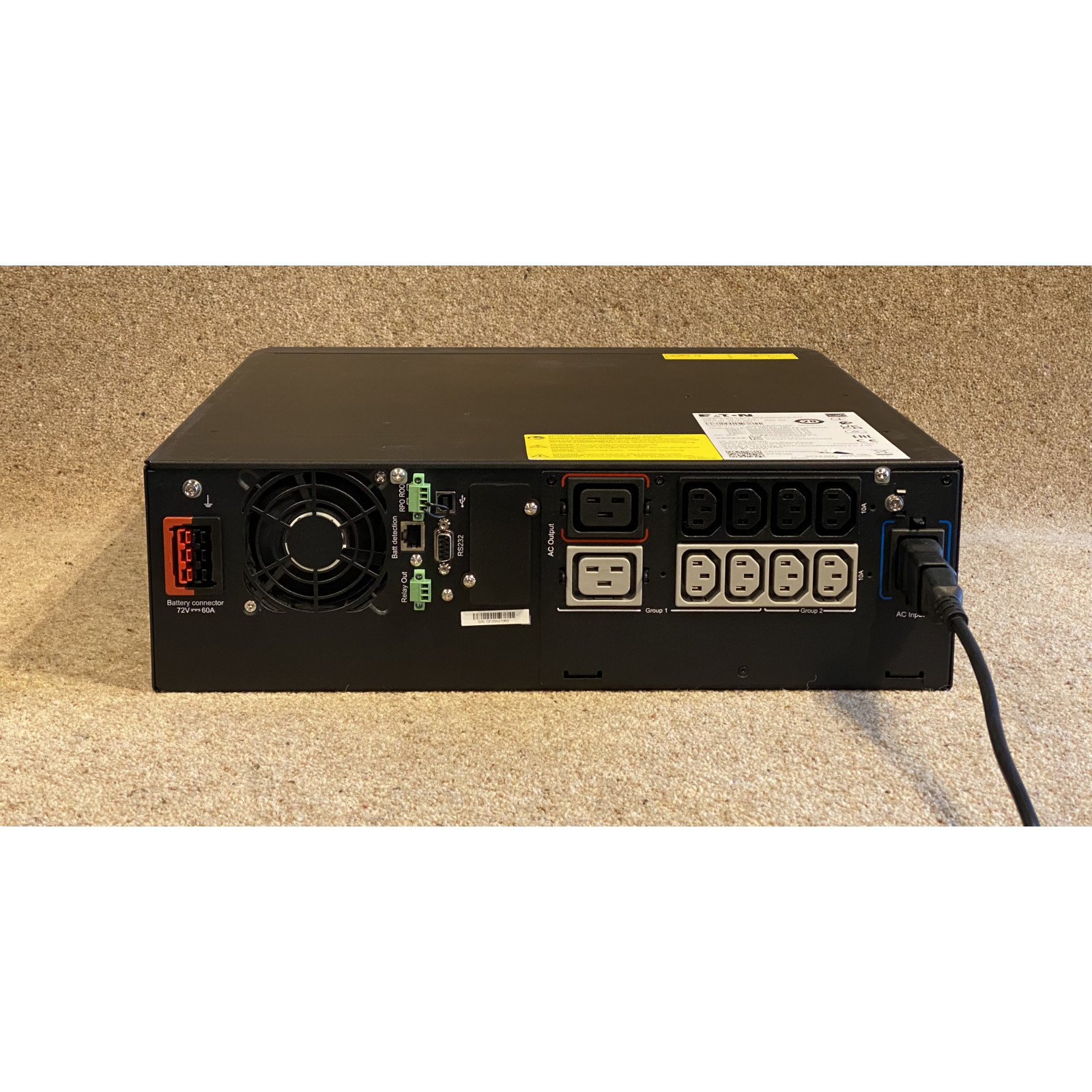

Receptacle: (8) C13, (2) C19
Voltage: 230V
Wattage: 3000 W
Output power factor: 1
Output voltage range: 230 V (+6%/-10%)
Output waveform: Sine wave
Output nominal voltage: 230V default (200/208/220/230/240V)
Voltage distortion output (linear load) - max: 0
Feed type: 1
Topology: Line-interactive
VA rating: 3000 VA

ELECTRICAL INPUT
Input connection: C20
Input nominal voltage: 230V default (200/208/220/230/240V)
Nominal frequency: 50-60 Hz
Input voltage range: 160-294 V (adjustable to 150 V-294 V)
Input frequency range: 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode

COMMUNICATIONS
Includes network card: No

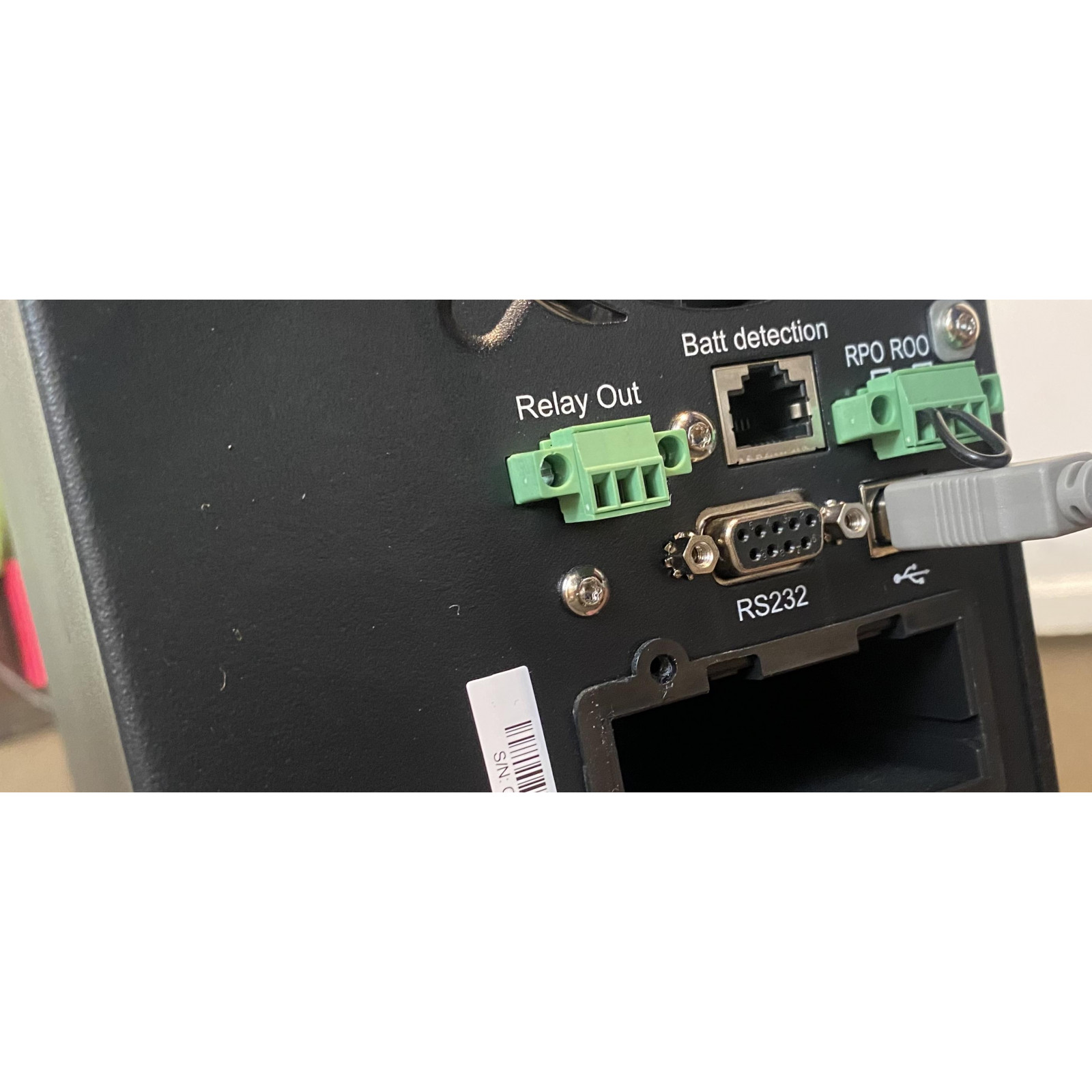

Communication: USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote On/Off and Remote Power Off
Mini-terminal block for output relay
Dry contacts (3 outputs, 1 input, optocoupler, DB9)

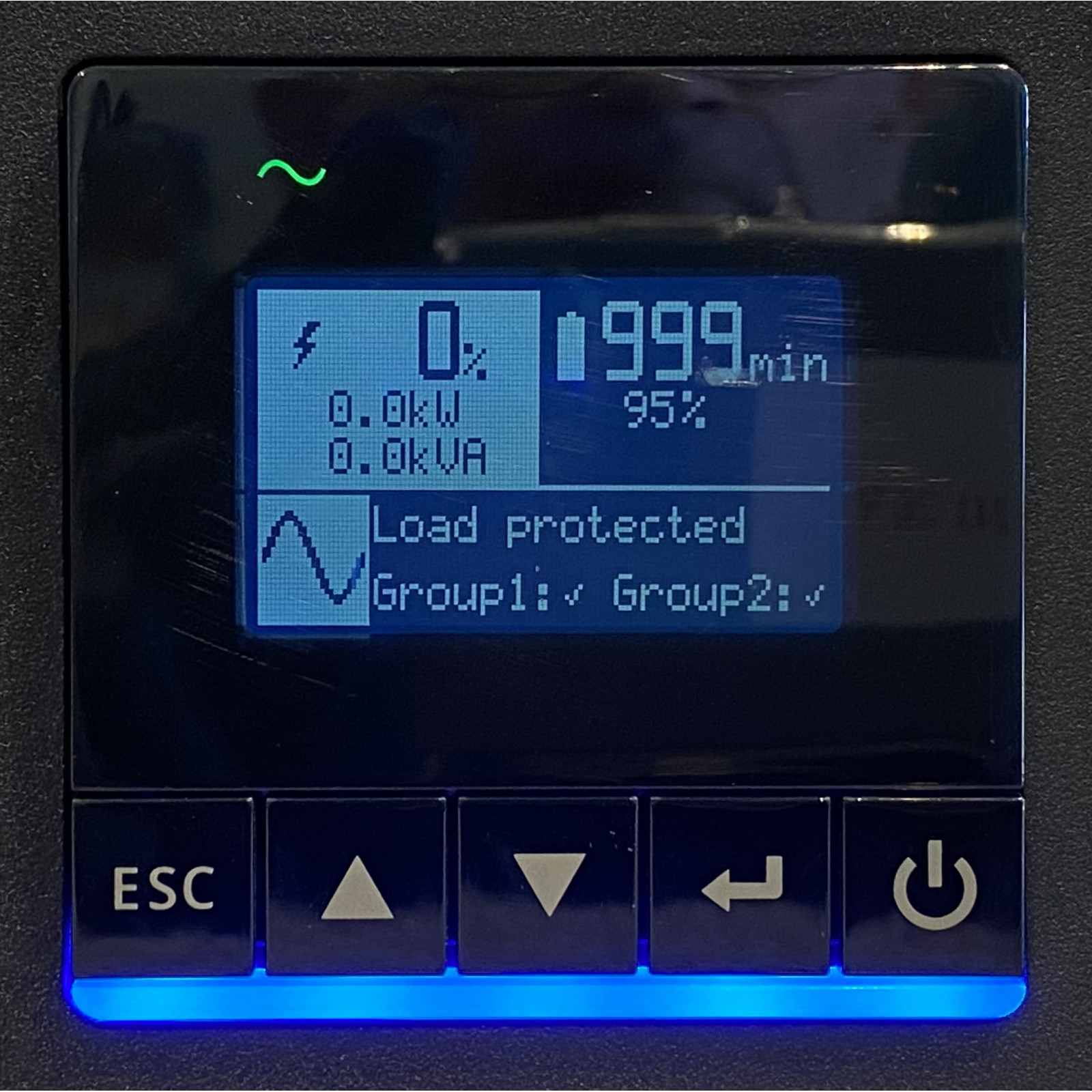

User interface: Multilingual graphical LCD display
Potential free switch contact: Yes
Expansion slots: One slot for optional communication card

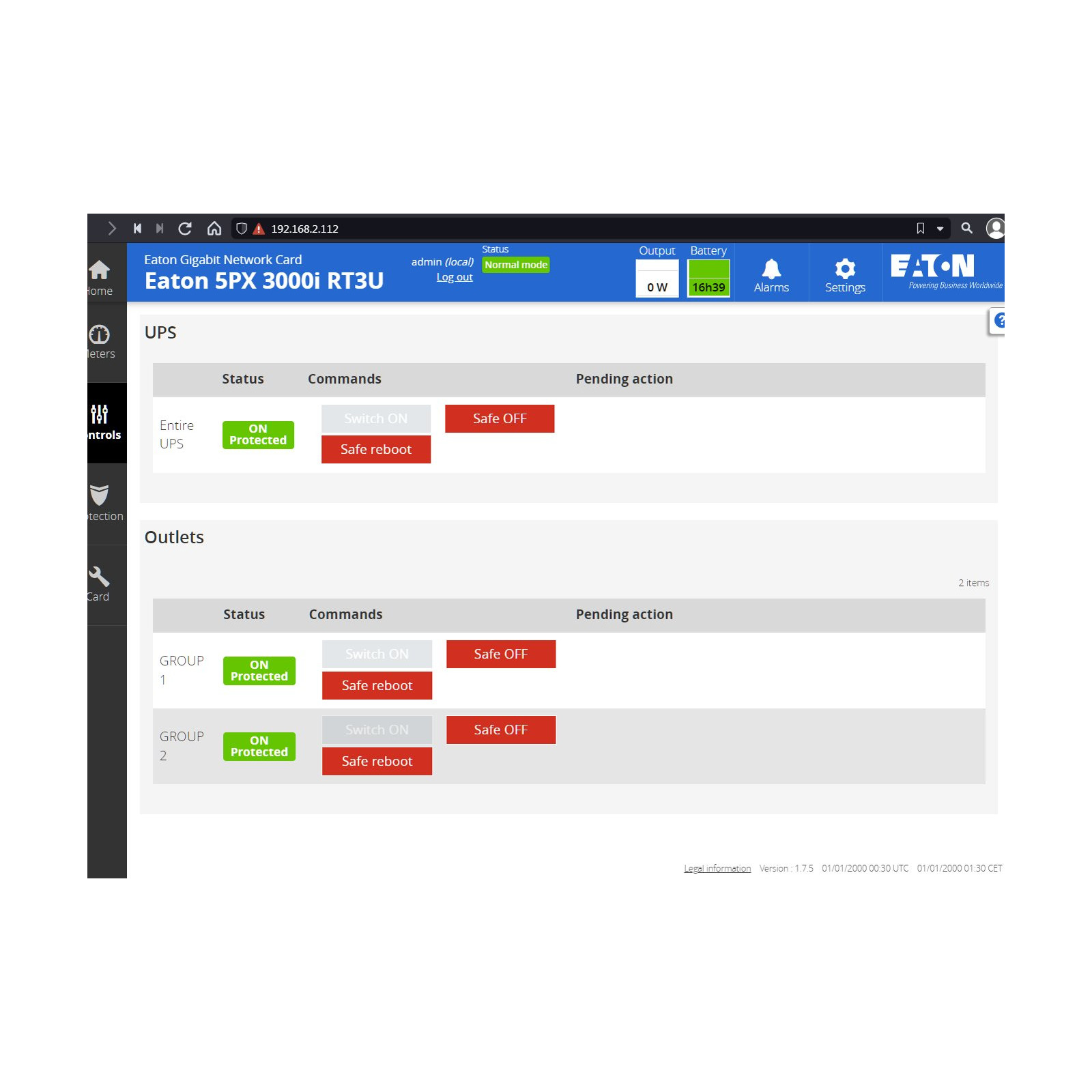

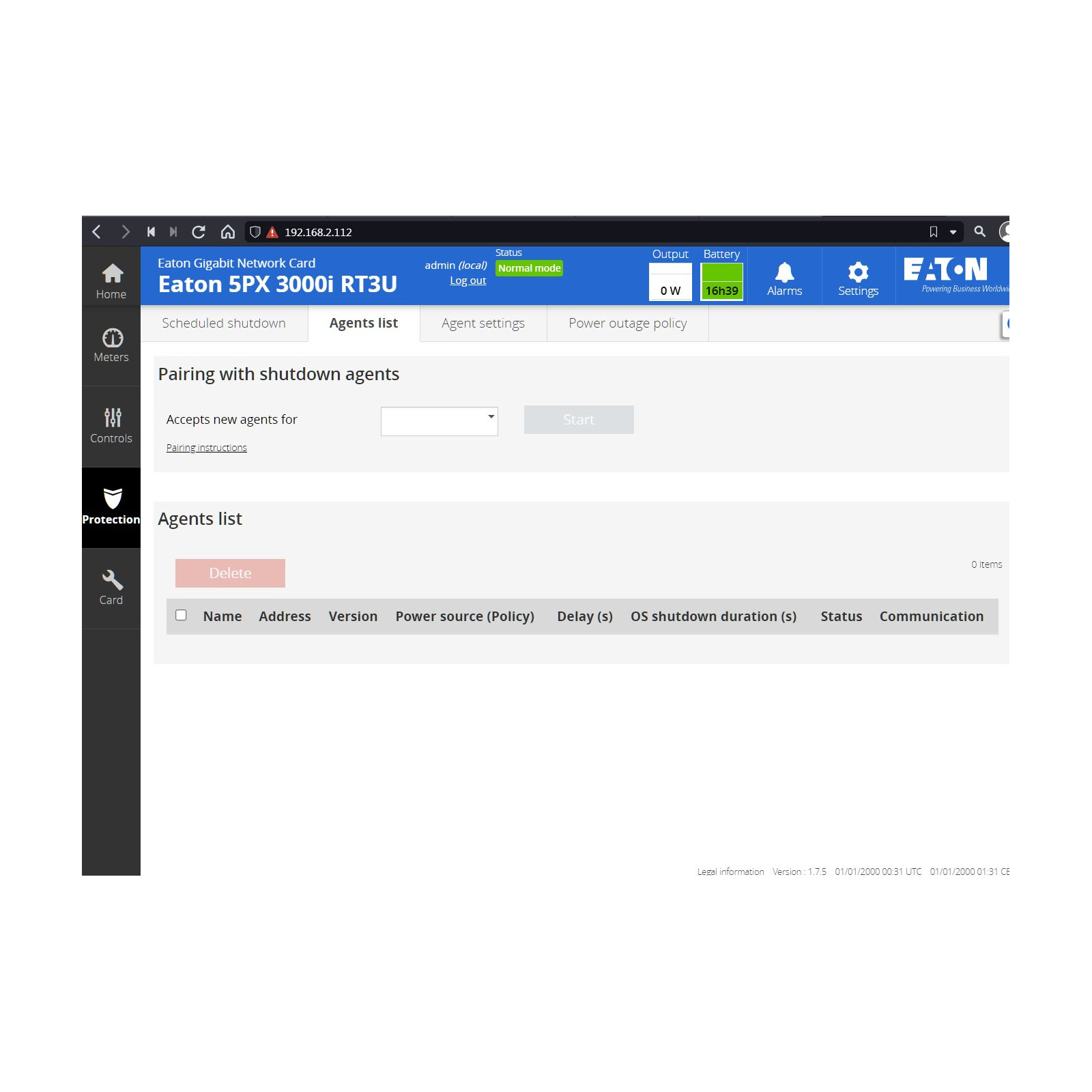

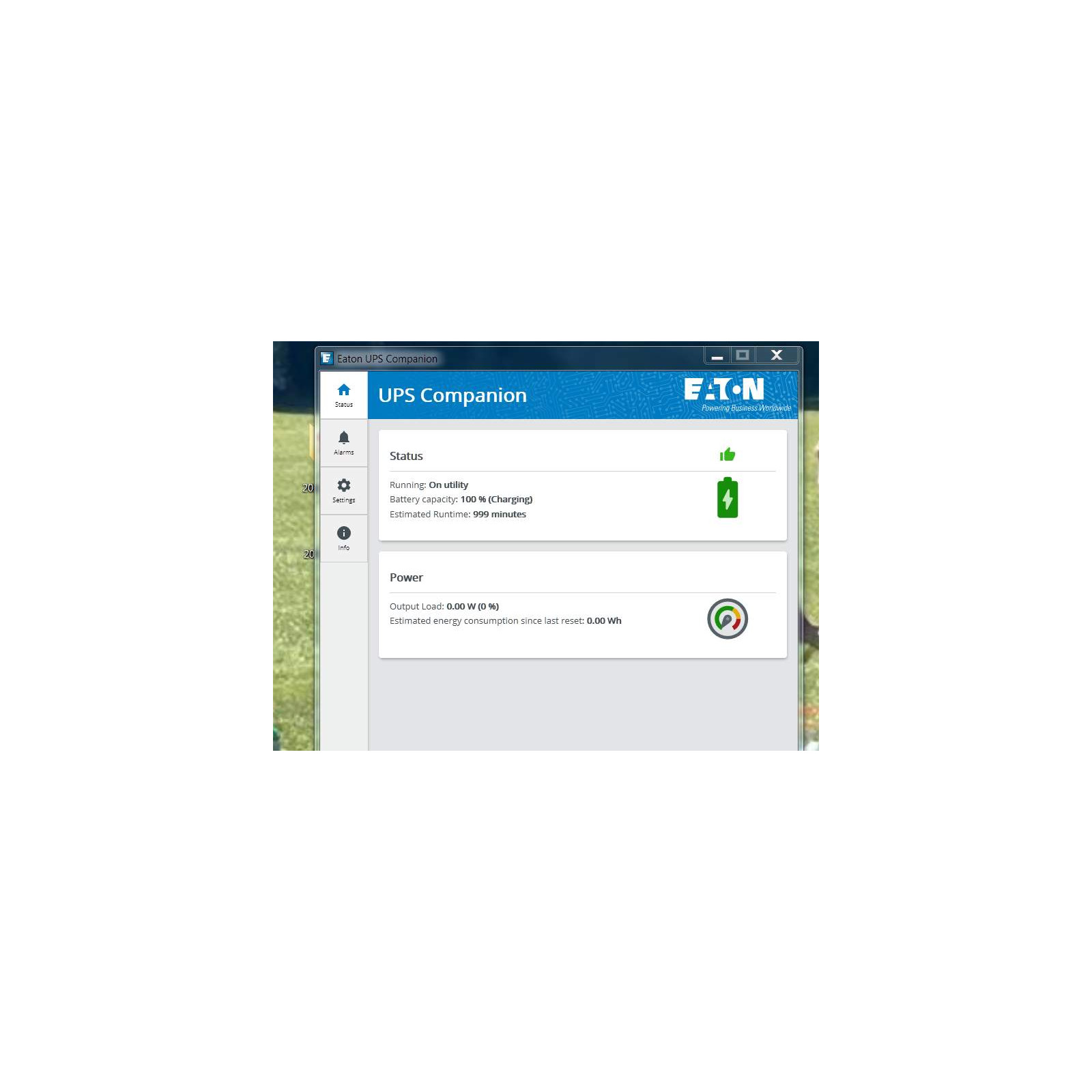

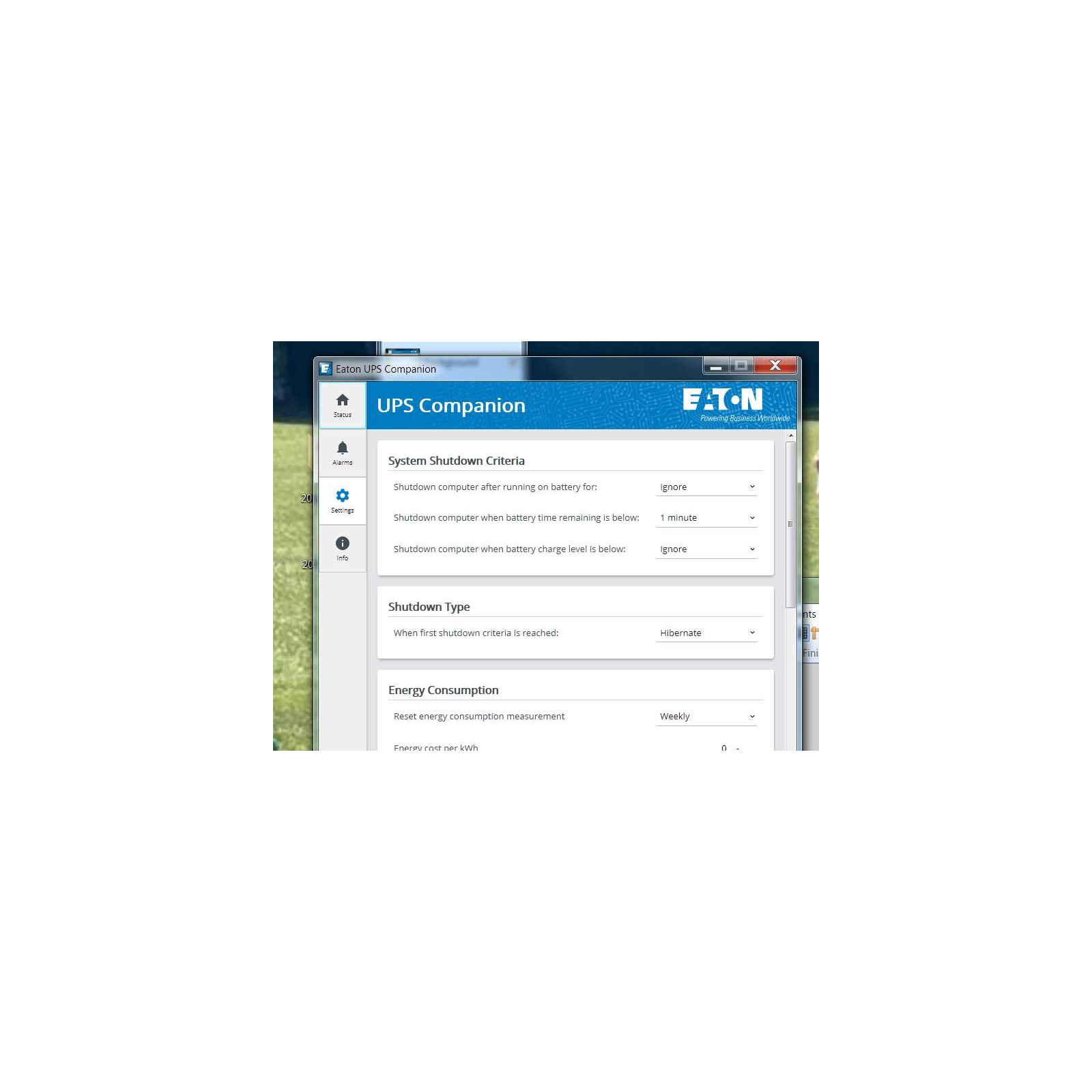

Software compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector

ENVIRONMENTAL
Altitude: 3000 m
Noise level: <40 dB at 1 meter
Temperature range: 0° to 40°C (32° to 104°F), batteries recommended max. 25°C (77°F)
Relative humidity: 0-90% non-condensing

ADDITIONAL SPECIFICATIONS
Construction type: 482.6 mm (19 inch) device
Phase (output): 1
Auto shutdown function: Yes
Color: Black/silver
Efficiency: 98
Phase (input): 1
