> Bypass Panel 5KVA SBP5000rmi2u

Bypass Panel 5KVA SBP5000rmi2u

SBP5000rmi2u View larger
Previous Next

SBP5000rmi2u

New product

5KVA Manual bypass panel.

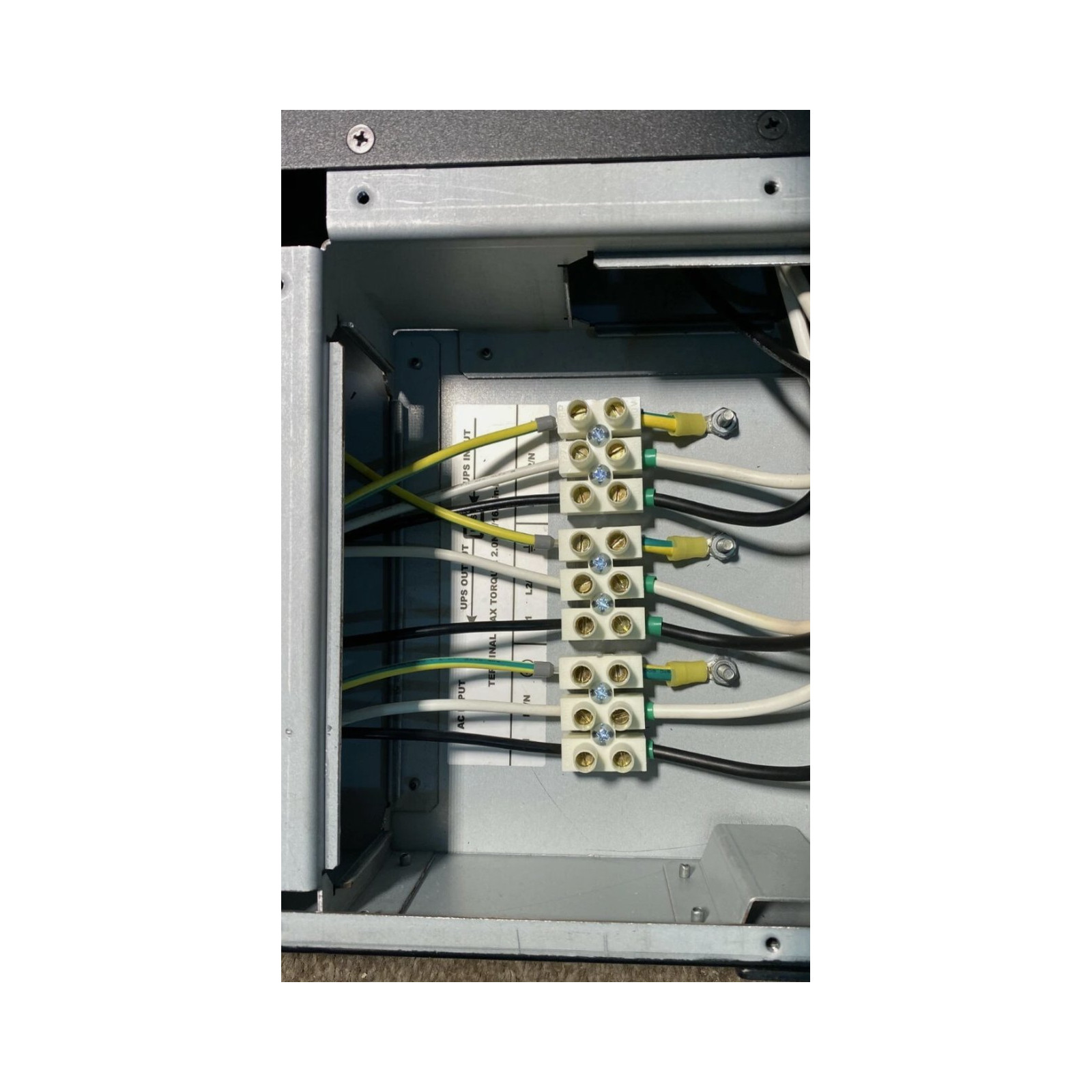

These can have IEC (C20/C19) type inputs, or cut outs for hard wiring. If you need a particular type contact us before ordering and we'll check stock. They have two options to make it easier to wire to your source and load.

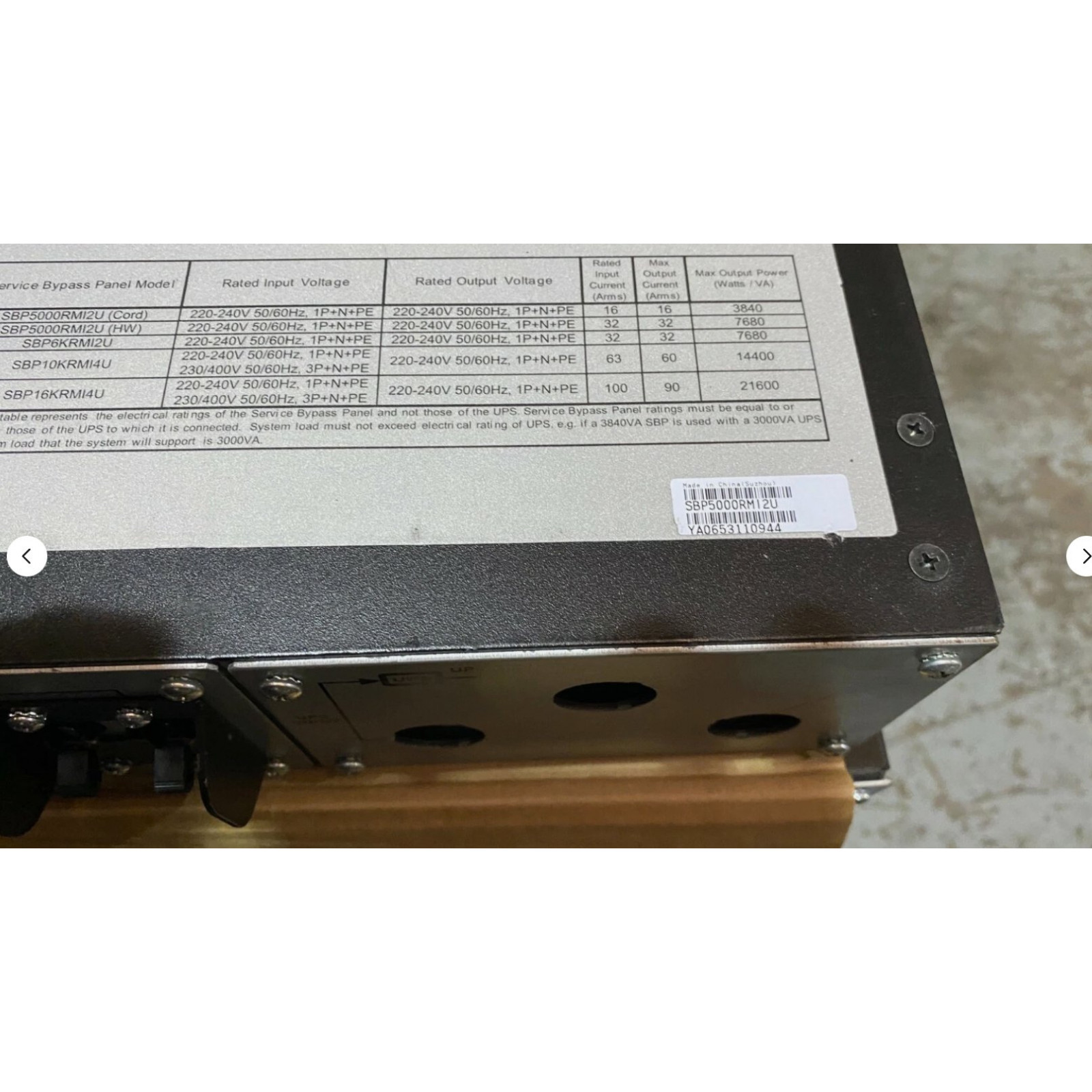

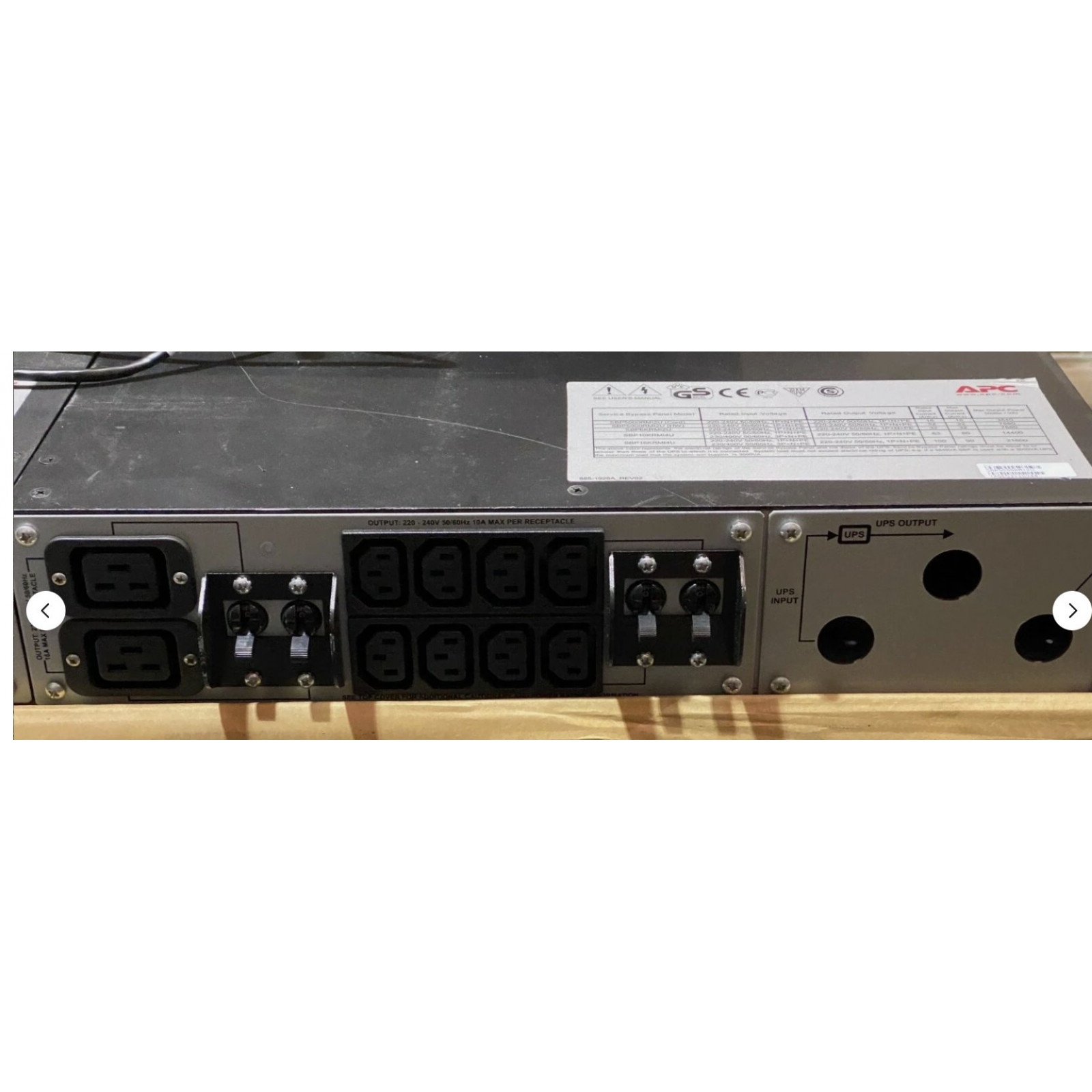

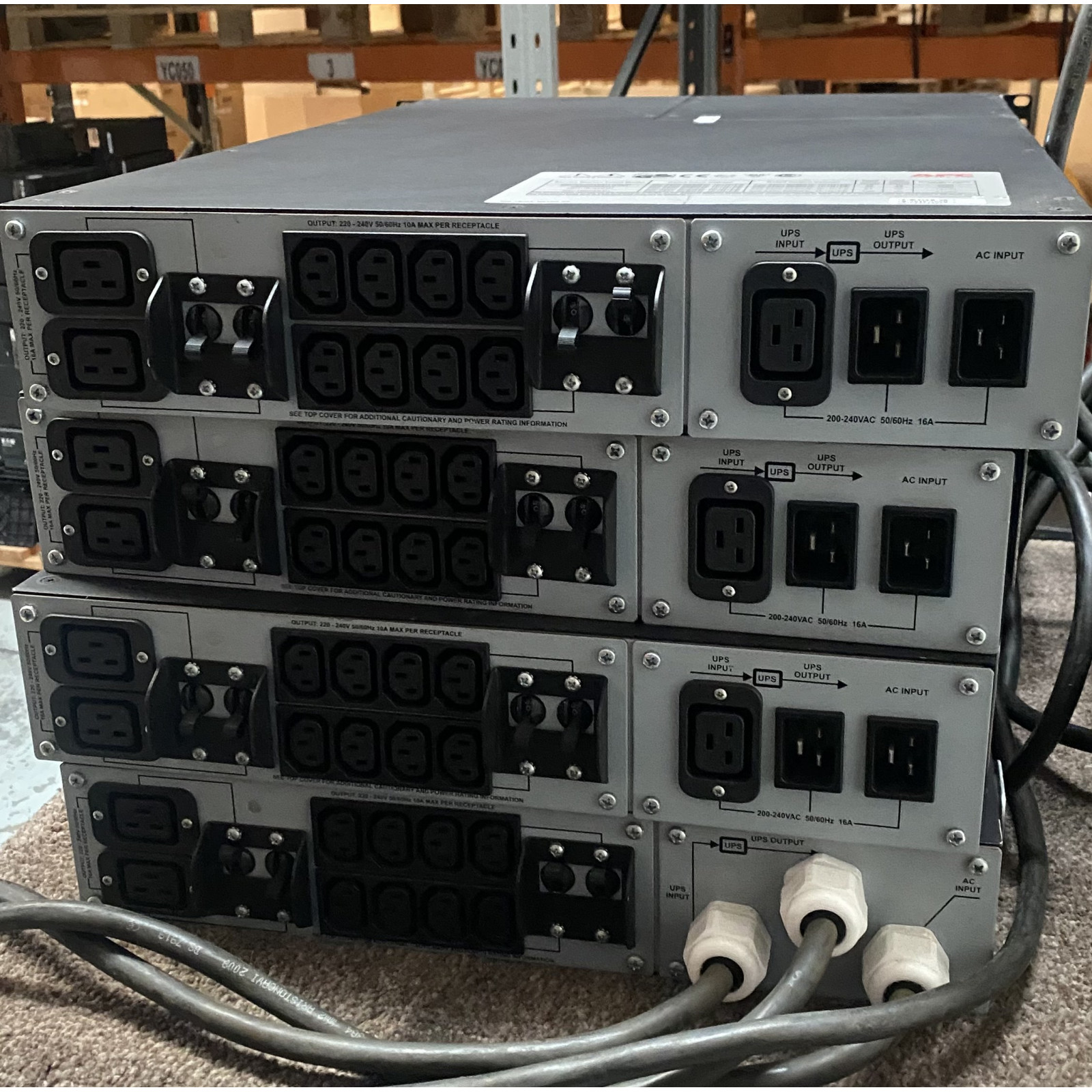

The Photos show both types.

They can be used in a rack or stood up (any orientation is OK)

We do include the rackmount ears.

More details

Warning: Last items in stock!

£ 110.00 tax incl.

Main Input Voltage 230 V
Product or component type Bypass kit
Main Output Voltage 230 V
Input Connection Type IEC 60320 C20
Number of rack unit 2U
Number of cables 1
Range of product

Maintenance Bypass Panels

Physical
Colour Black
Height 89 mm
Width 432 mm
Depth 660 mm
Net weight 11.36 kg
Mounting location Front
Mounting preference Lower

Input

Network frequency 50/60 Hz Number of input connectors 1 hard wire 3-wire (1P + N + E) Max line current 32 A Input current limits 32 A Load capacity 7680 VA Power factor 0…1

No customer reviews for the moment.

Write a review

Bypass Panel 5KVA SBP5000rmi2u

Bypass Panel 5KVA SBP5000rmi2u

5KVA Manual bypass panel.

These can have IEC (C20/C19) type inputs, or cut outs for hard wiring. If you need a particular type contact us before ordering and we'll check stock. They have two options to make it easier to wire to your source and load.

The Photos show both types.

They can be used in a rack or stood up (any orientation is OK)

We do include the rackmount ears.
