> >Tripp Lite SMX1500LCD

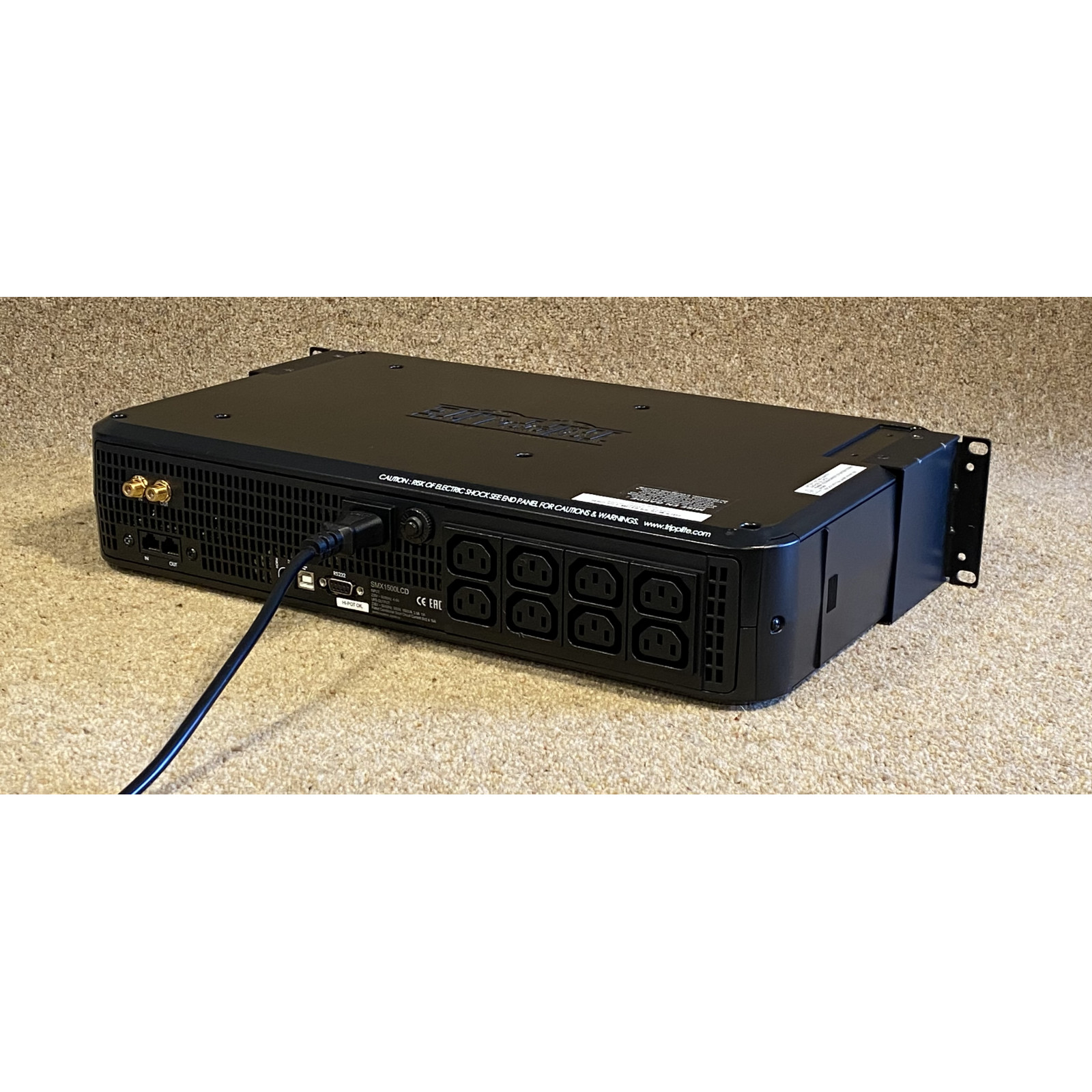

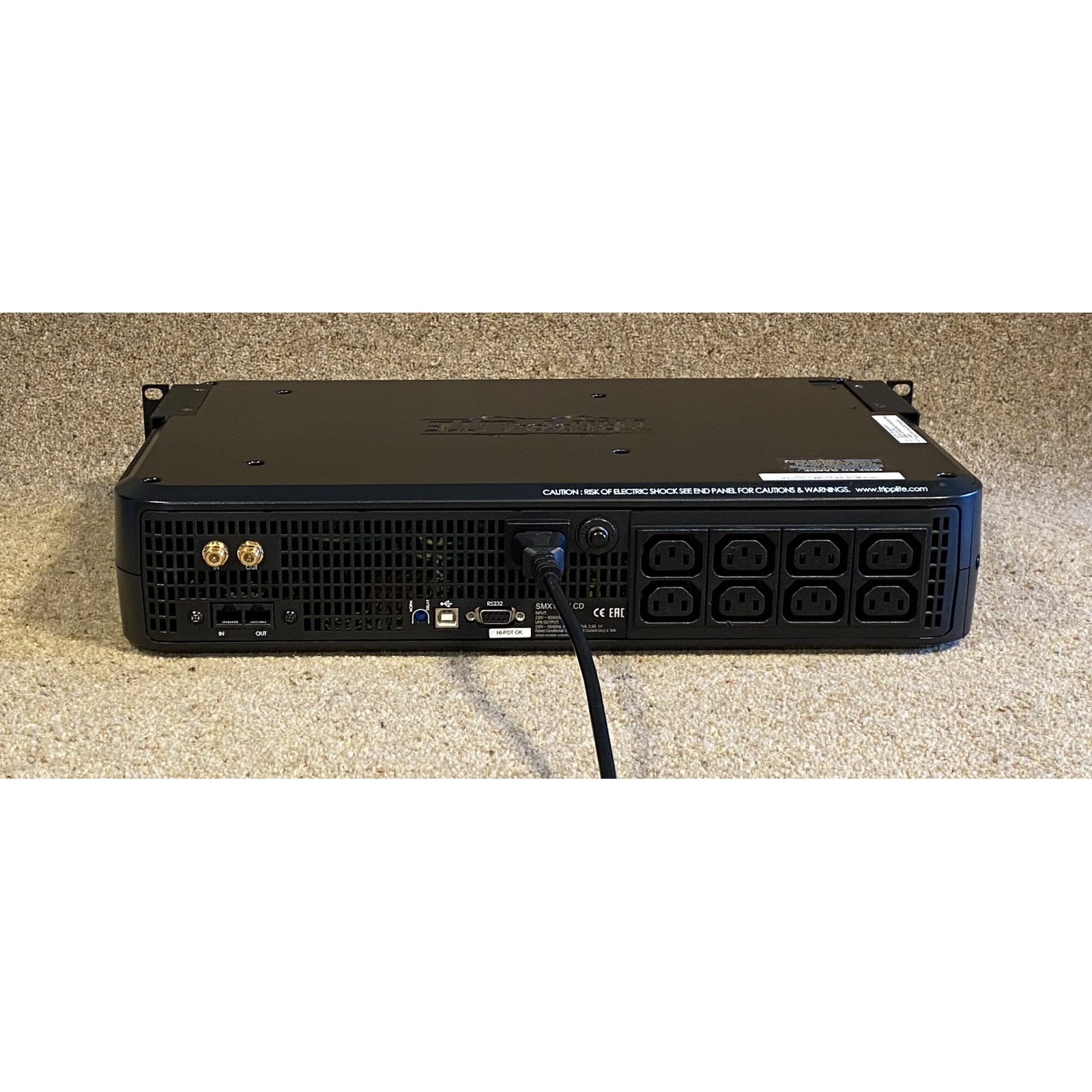

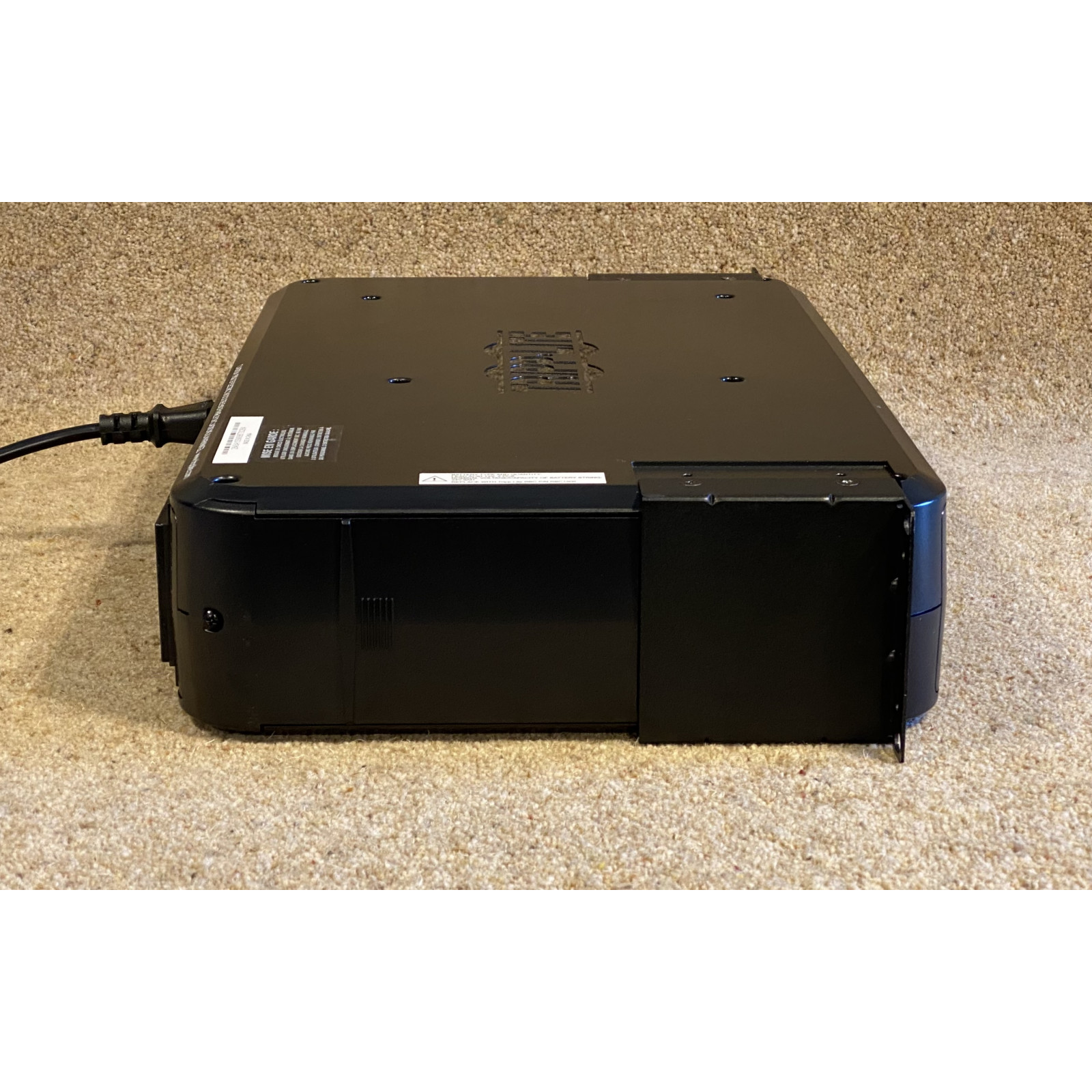

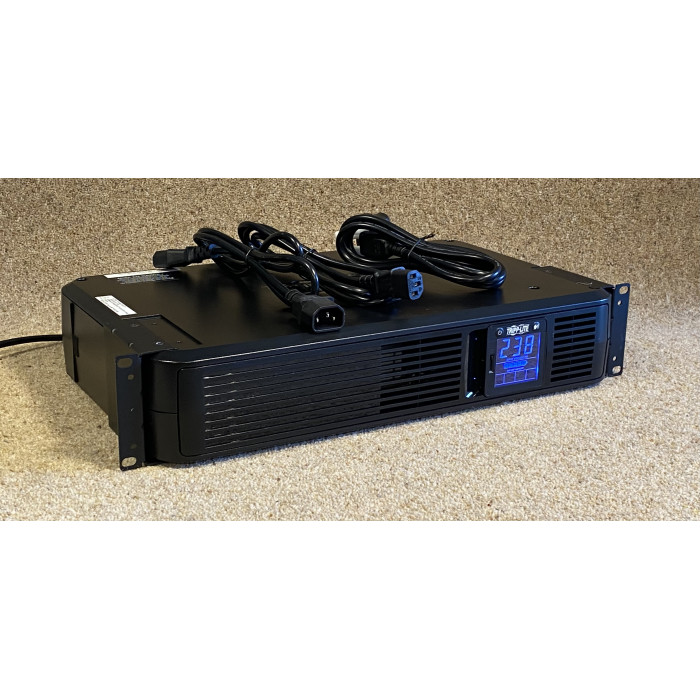

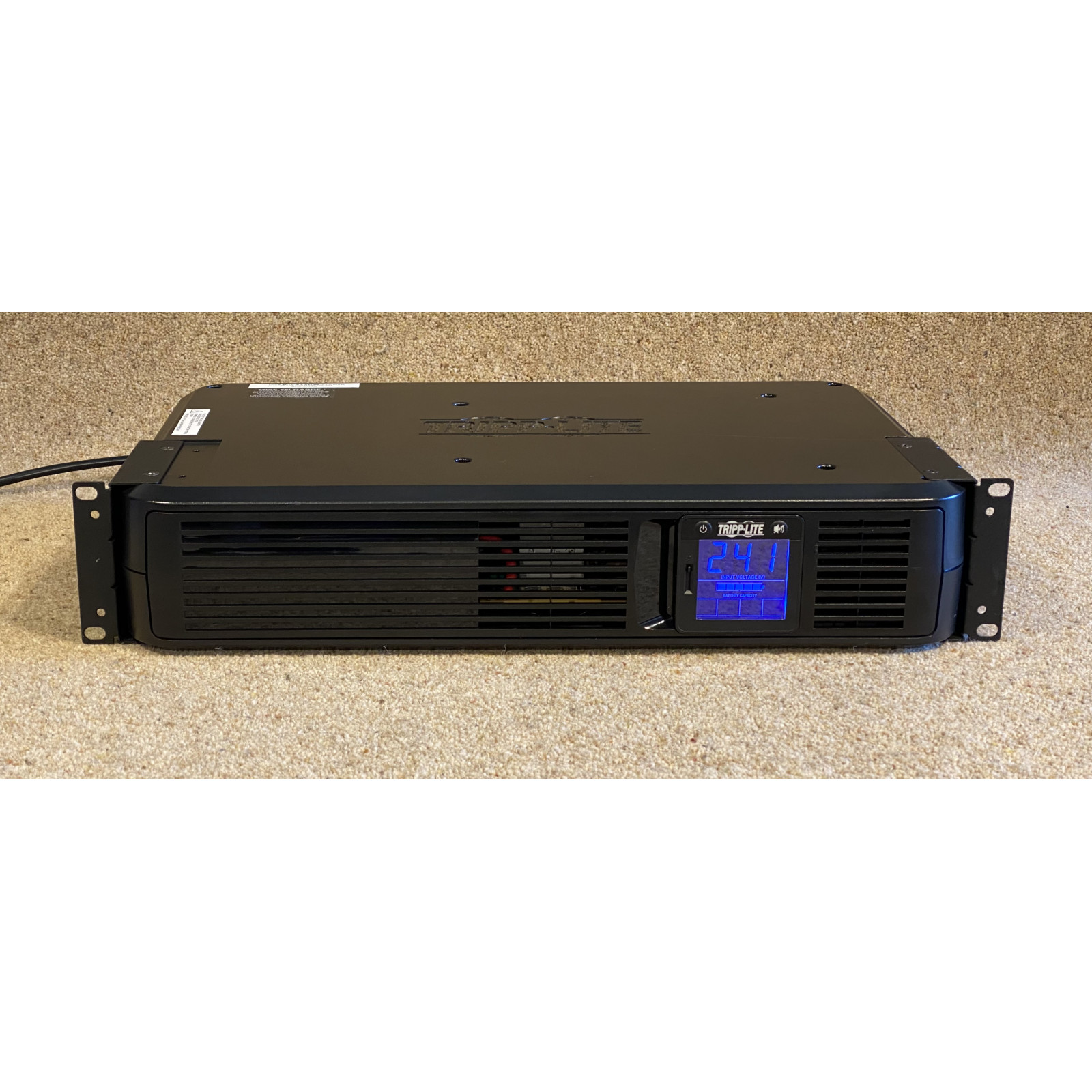

Tripp Lite SMX1500LCD

New Tripp Lite SMX1500LCD View larger
Previous Next

Tripp-SMX1500LCD

Used

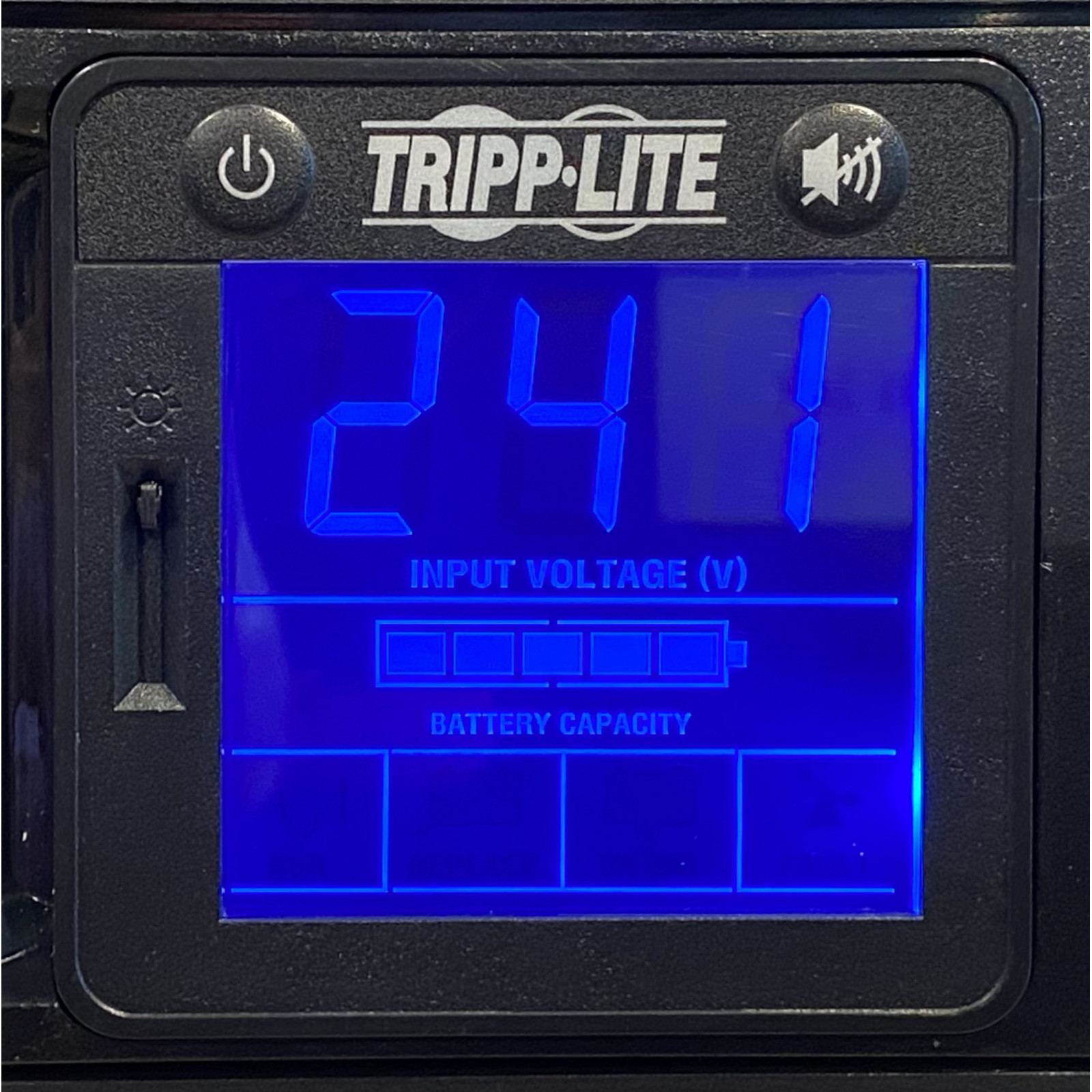

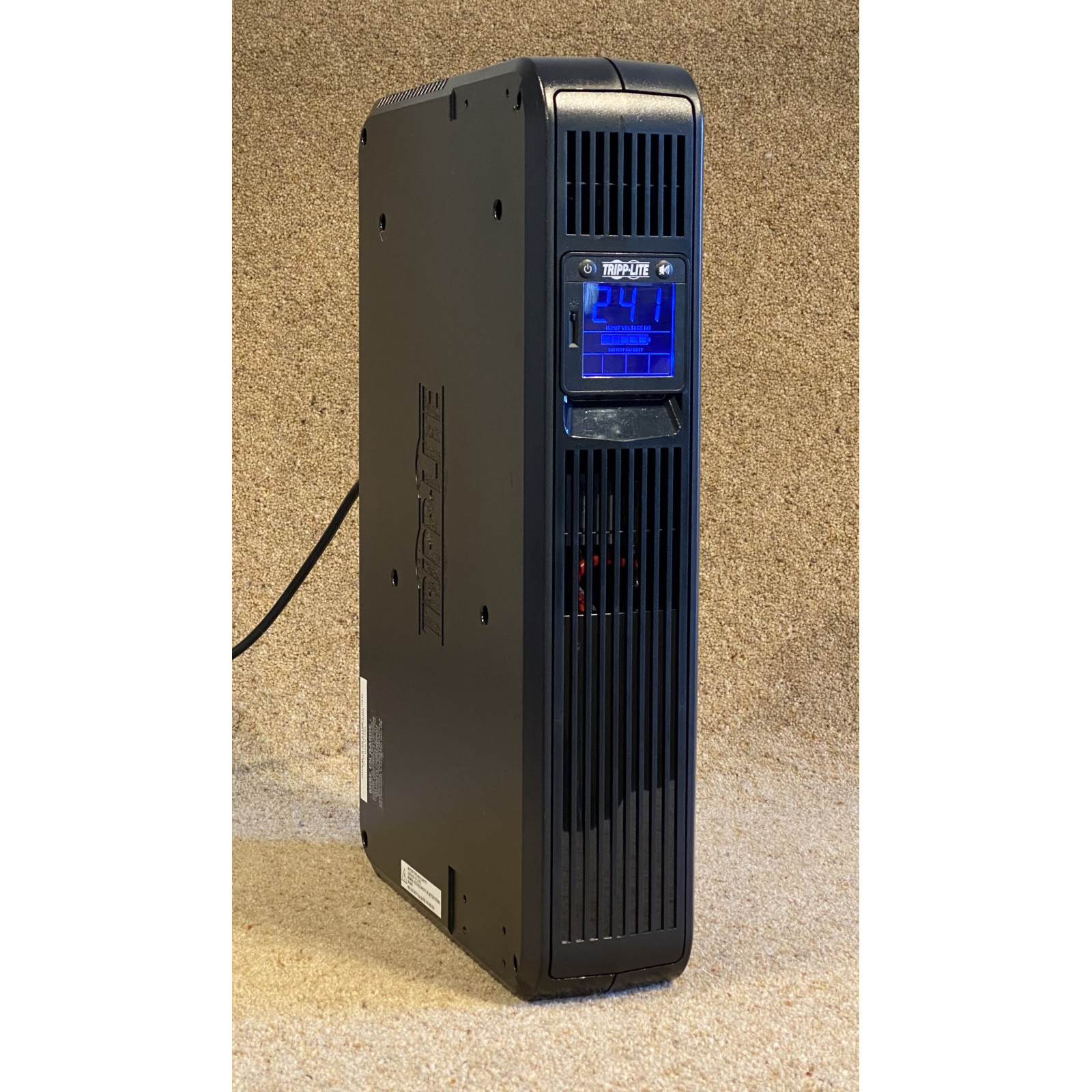

The UPS is unusually short depth making it the only 1500VA class UPS to use in installations requiring a short depth UPS (comms racks / cupboards). They can be used in a rack-mount or tower orientation.The informative LCD control panel can be rotated through 90 degrees.

They are quiet and have no fan.

The LCD panel back light can be dimmed via the front slider.

We include the rackmount ears.

More details

Warning: Last items in stock!

£ 140.00 tax incl.

UPC Code 037332126078
UPS Type Line-Interactive

INPUT

Input Phase Single-Phase
Rated input current (Maximum Load) 4.4A
Nominal Input Voltage(s) Supported 230V AC
UPS Input Connection Type C14 inlet
Input Frequency ±3Hz

OUTPUT
Output Capacity (VA) 1500
Output Capacity (Watts) 900
Nominal Voltage Details 230V nominal output in battery mode
Frequency Compatibility 50 / 60 Hz
Frequency Compatibility Details Automatic frequency selection
Output Voltage Regulation (Line
Mode) -18%, +8%

Output Voltage Regulation (Battery
Mode) +/- 5%
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (BatteryMode) PWM sine wave
Nominal Output Voltage(s) Supported 220V; 230V; 240V
Output Receptacles (8) C13


BATTERY
Battery Type Valve Regulated Lead Acid (VRLA)
Expandable Runtime No
DC System Voltage (VDC) 24


VOLTAGE REGULATION
Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 144 to 282
Overvoltage Correction Input voltages between 245 and 282 are reduced by 12%
Undervoltage Correction Input voltages between 177 and 199 are boosted by 14%
Severe Undervoltage Correction Input voltages between 144 and 176 are boosted by 30%


PHYSICAL
Primary Form Factor Rackmount
Rack Height 2UCooling Method Convection

Minimum Required Rack Depth (cm) 35.56

Primary UPS Depth (mm) 267
Primary UPS Height (mm) 89
Primary UPS Width (mm) 438


Unit Weight (kg) 13.34

ENVIRONMENTAL
Operating Temperature Range 32° to 104°F (0° to 40°C)
Storage Temperature Range 5° to 122°F (-15° to 50°C)
Relative Humidity 0-95% non-condensing
AC Mode BTU / Hr. (Full Load) 133
AC Mode Efficiency Rating (100% Load) 96%
Battery Mode Heat Dissipation (BTU/Hr) @ Full Load 542

No customer reviews for the moment.

Write a review

Tripp Lite SMX1500LCD

Tripp Lite SMX1500LCD

The UPS is unusually short depth making it the only 1500VA class UPS to use in installations requiring a short depth UPS (comms racks / cupboards). They can be used in a rack-mount or tower orientation.The informative LCD control panel can be rotated through 90 degrees.

They are quiet and have no fan.

The LCD panel back light can be dimmed via the front slider.

We include the rackmount ears.
