> >>HR12-22W High rate 5Ah cell

HR12-22W High rate 5Ah cell

New RT12-22W High rate 5Ah cell View larger
Previous Next

HR-12-22W

New product

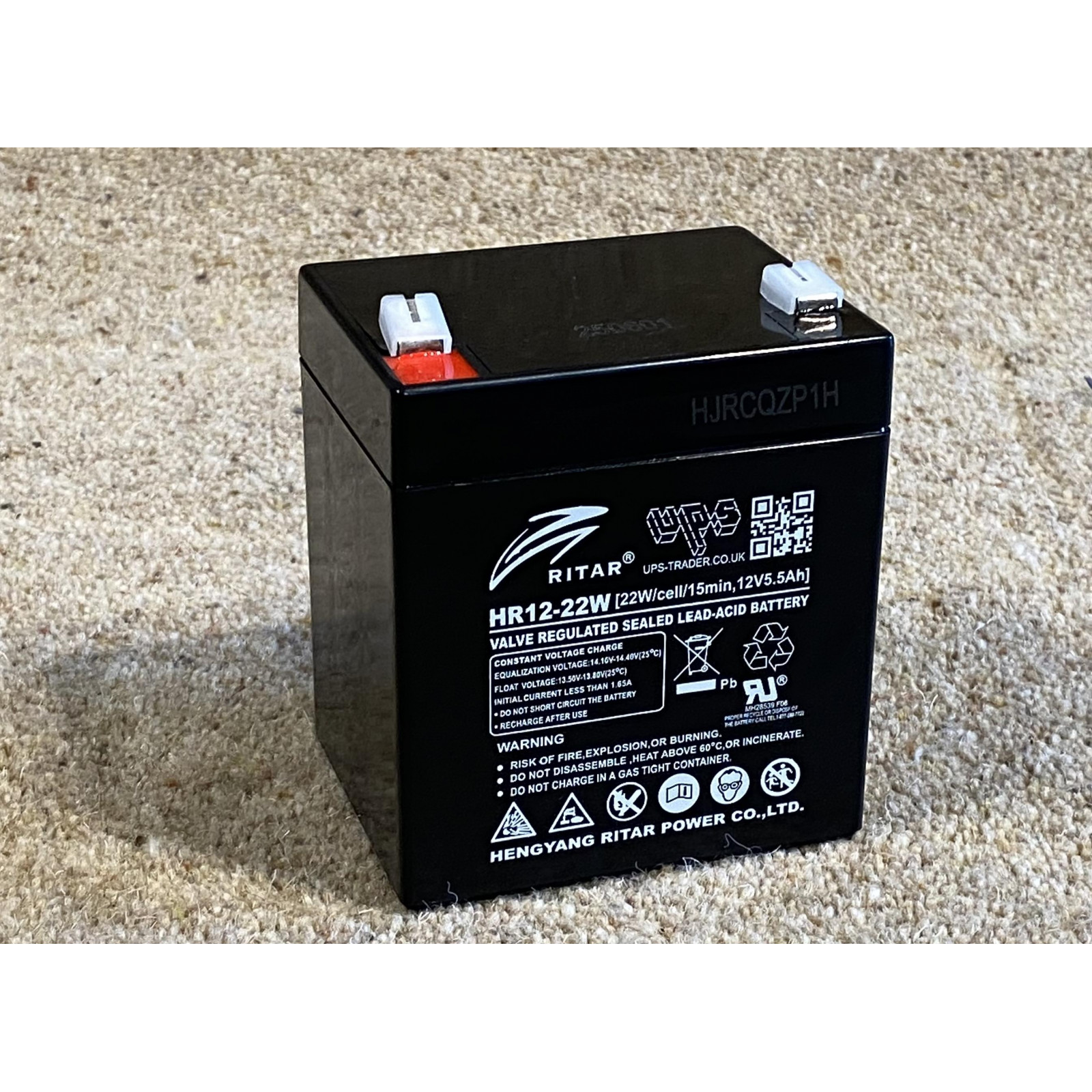

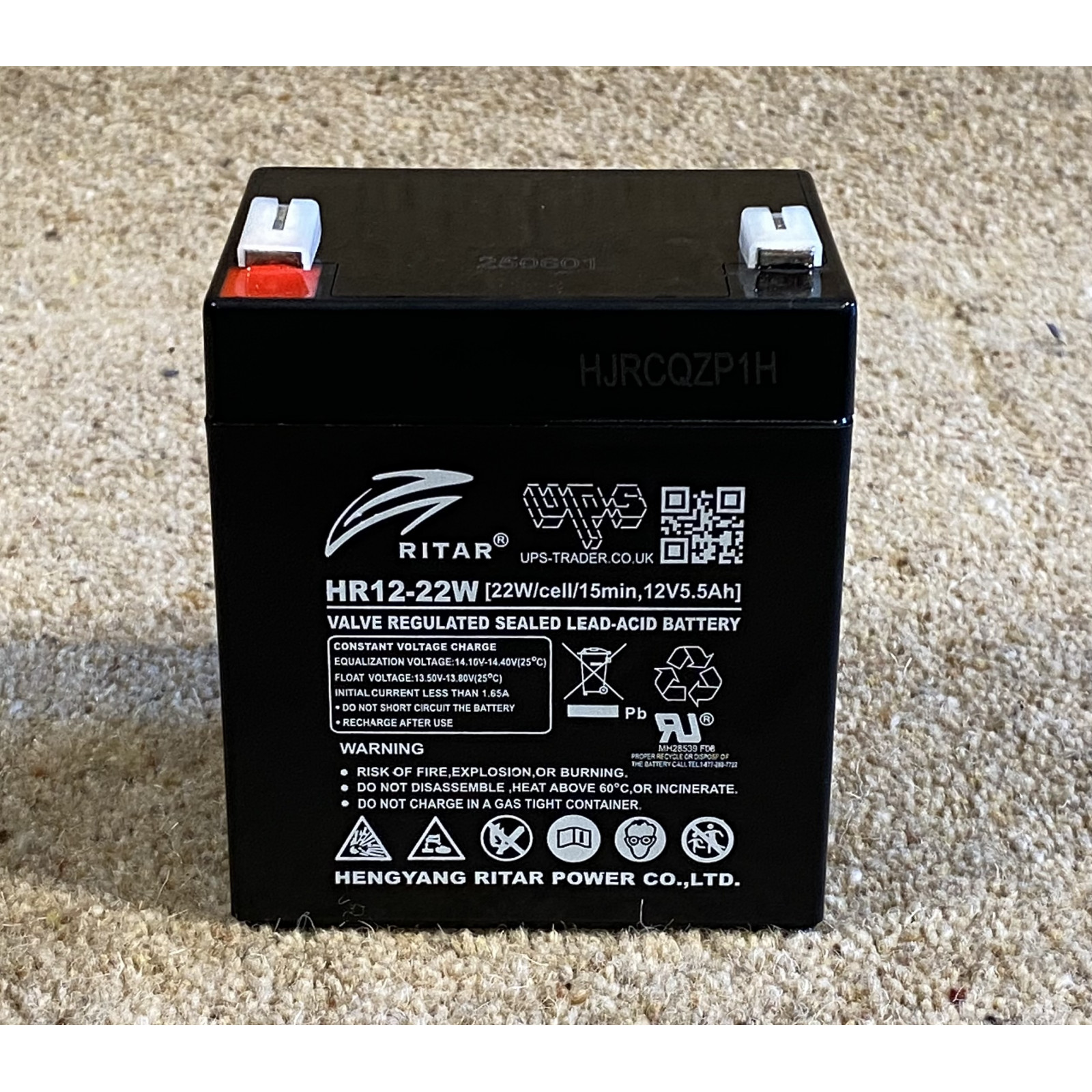

Brand new 12v 5AH cell, capable of higher current discharge than normal.

More details

£ 15.38 tax incl.

Volume discounts

Quantity Discount You Save
10 £ 0.40 Up to £ 4.00
100 £ 0.58 Up to £ 58.00

HR ( High Rate ) series Valve Regulated Lead

Acid (VRLA) battery is designed for heavy load
discharge applications with 8 years design
life in float service. By using strong grids,
and specially designed active material.
It is with lower I.R, lower self discharge rate,
high power, and longer service life. The HR
series battery offers 30% more power output
than the standard series. It is suitable for high
power standby used, such as datacenter, UPS,
EPS etc

Designed for float use.
Maintenance free.

It is a fully sealed AGM (absorptive glass mat) cell. This is a more modern design that replaces the wet/flooded cell design and is a safety improvement. The cell is fully sealed, and can be used in any orientation, though if you have a choice then siting with the terminals on top makes the most sense.

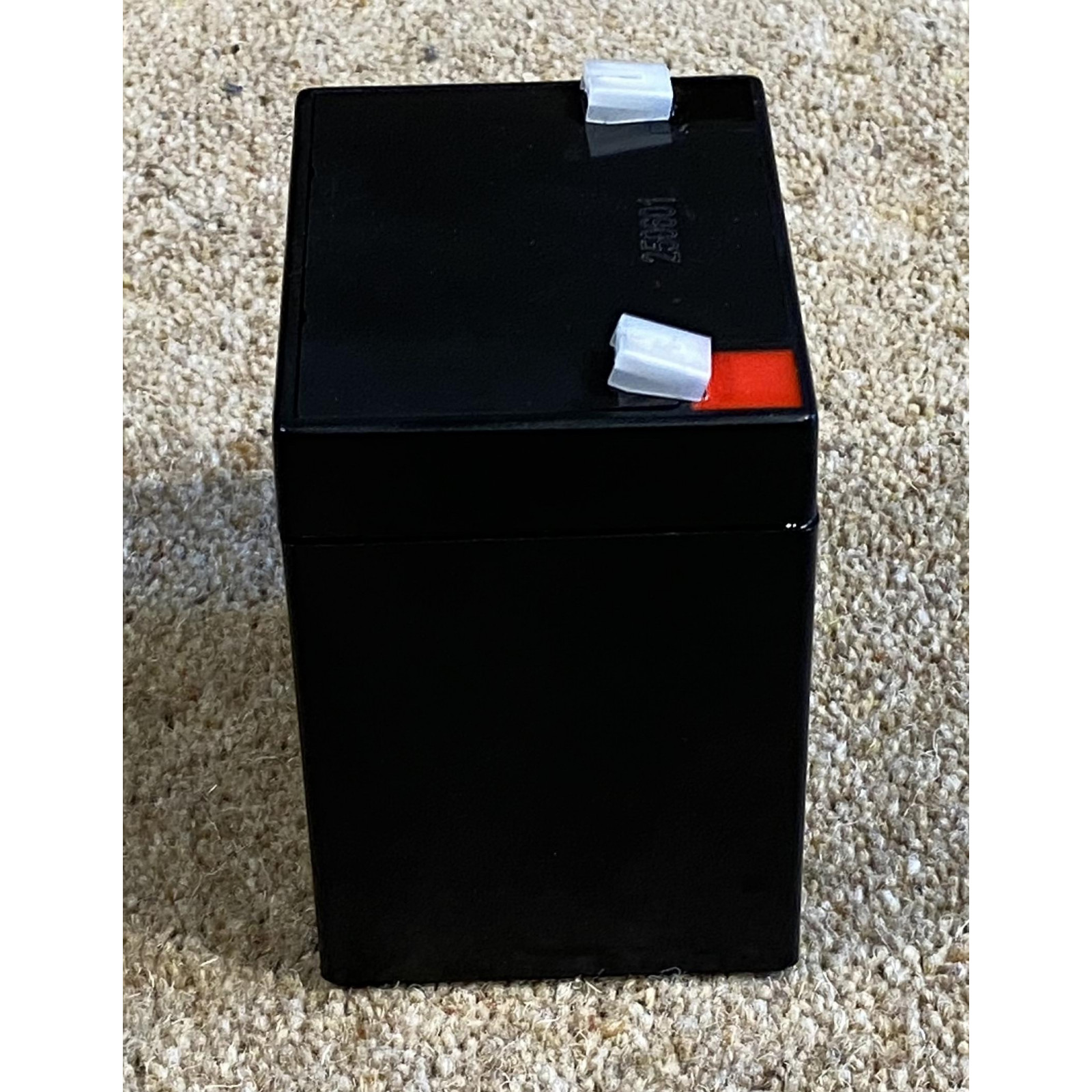

  • Height 107mm (measured to the top of the terminal)
  • Width 90mm
  • Depth 70mm
  • Weight ~1.55KG
  • Battery Voltage 12V DC
  • Battery Capacity 5Ah

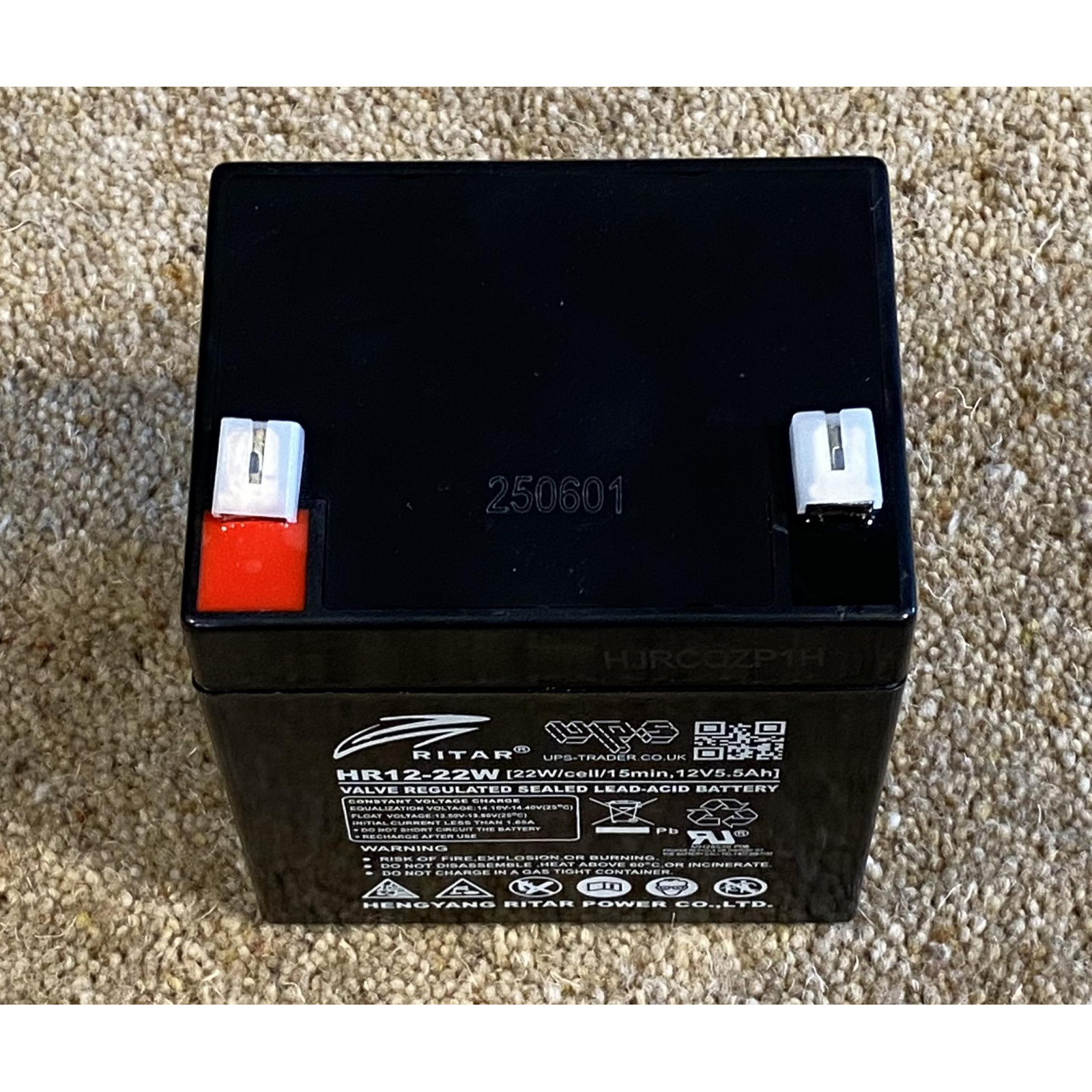

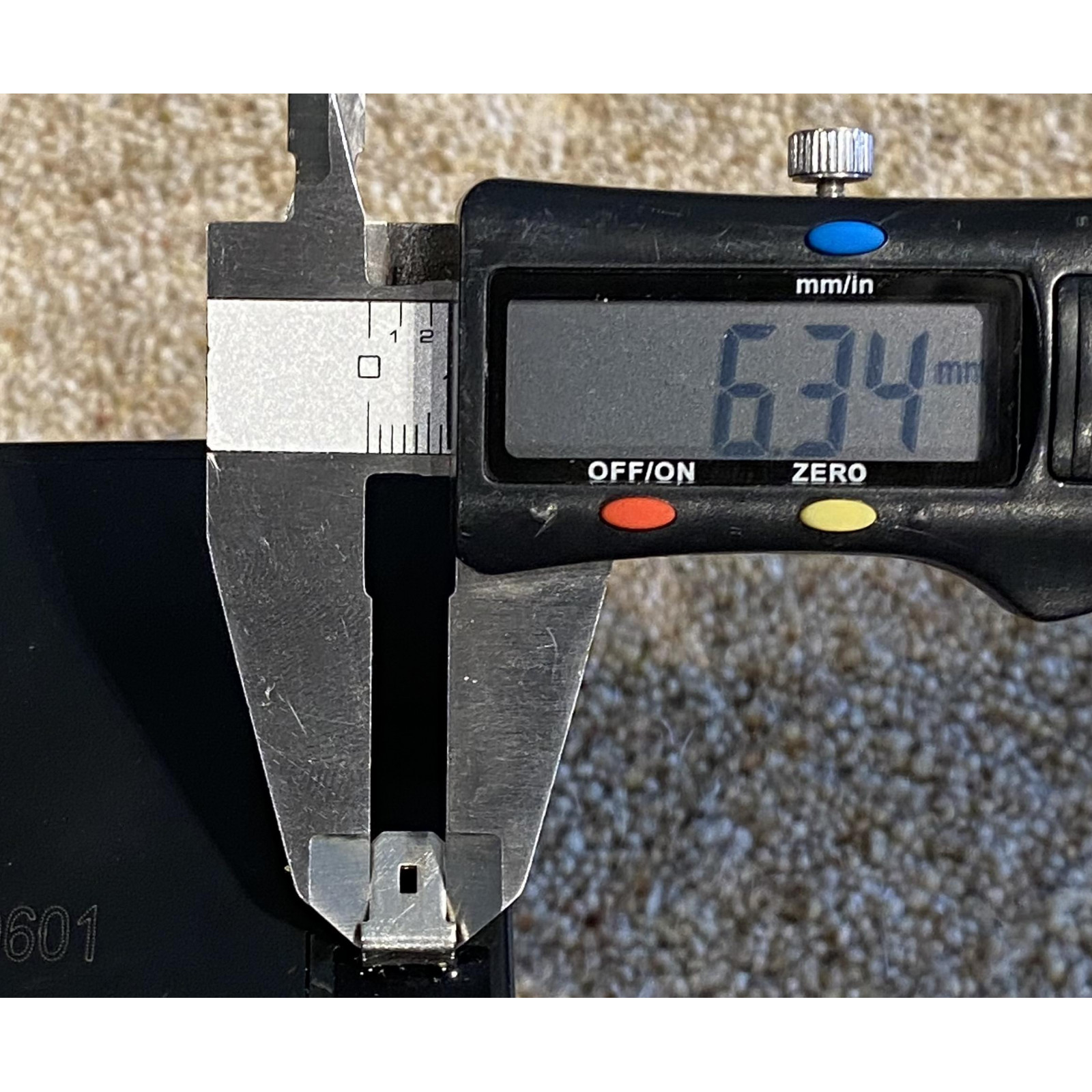

  • Terminal Type F2 - 6.35mm wide spade terminal
  • Float Voltage range 13.7 to 13.9 Volts DC
  • Equalisation Charge Voltage 14.6 to 14.8 VDC
  • Recommended max charge current 1.65A
  • Max Discharge current 280A
  • Float or Cyclic design Float
  • Battery Chemistry Sealed Lead Acid

No customer reviews for the moment.

Write a review

HR12-22W High rate 5Ah cell

HR12-22W High rate 5Ah cell

Brand new 12v 5AH cell, capable of higher current discharge than normal.
